Daytime Running Lamp
>>
Daytime Running Light [Halogen Type Headlight]
Daytime Running Light [Halogen Type Headlight]

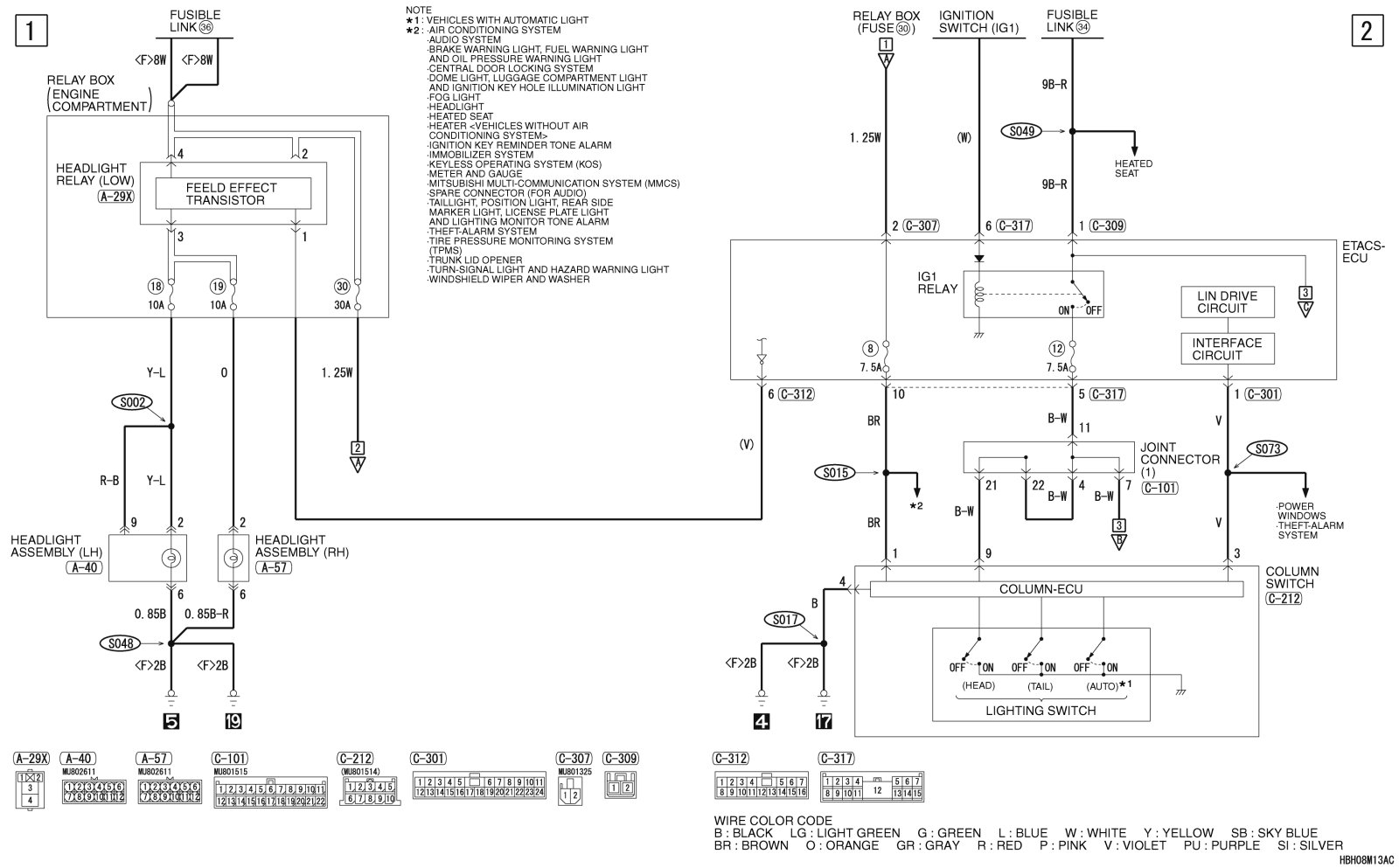

DAYTIME RUNNING LIGHT (DRL) [HALOGEN TYPE]
