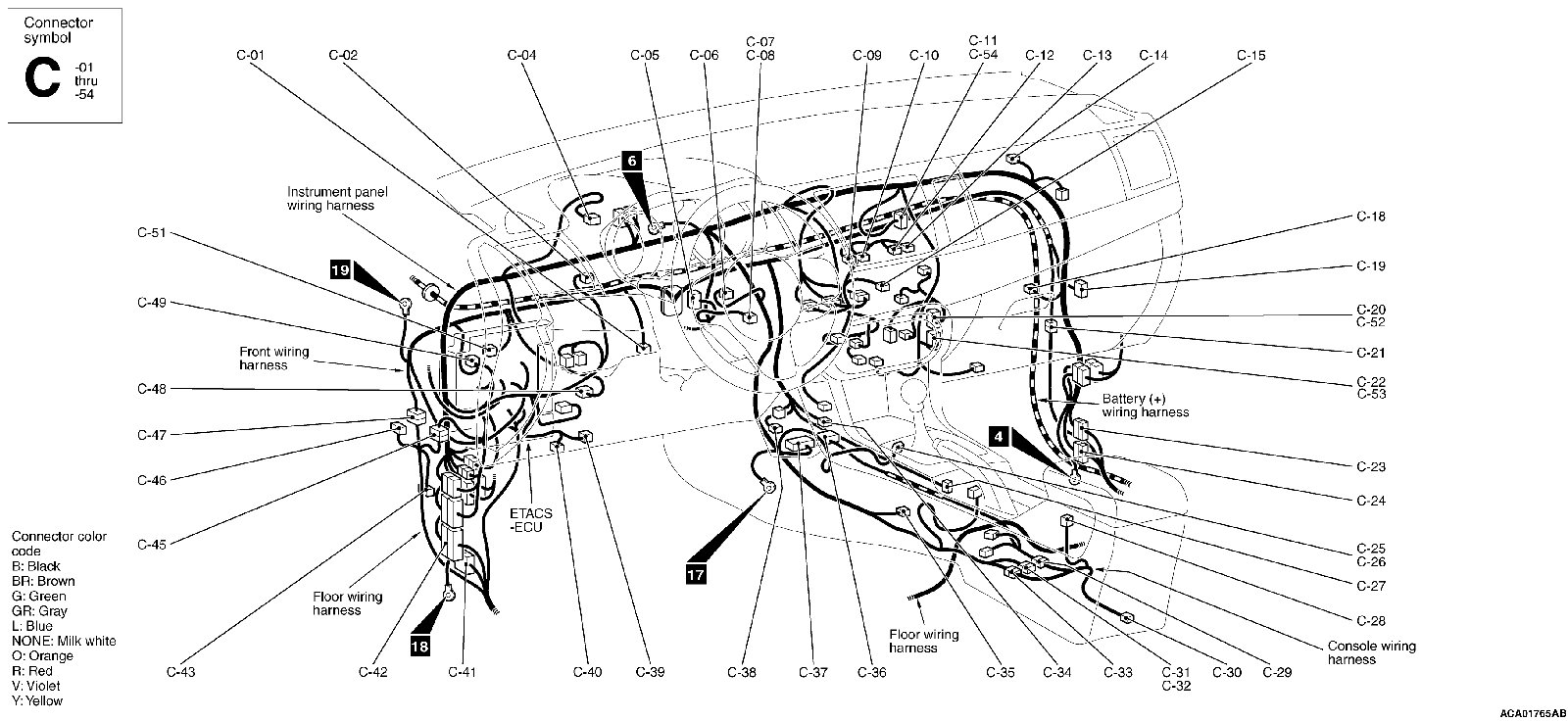

C-01 to C-54

DASH PANEL







C-01 (6-B) Accelerator pedal position sensor
C-02 (4) Meter information switch
C-04 (24) Combination meter
C-05 (40) KOS-ECU
C-06 (2) Interior temperature sensor
C-07 (12) Wireless control module [Vehicles without KOS]
C-08 (12) Receiver antenna module [Vehicles with KOS]
C-09 (7-G) Multivision display [Vehicles with MMCS]
C-10 (32-GR) Multivision display [Vehicles with MMCS]
C-11 (28) Hands free module
C-12 (5-GR) Multivision display [Vehicles with MMCS]
C-13 (17-GR) Multivision display [Vehicles with MMCS]
C-14 (4-Y) Passenger�s (Front) air bag module (squib)
C-15 (10-G) CAN box unit
C-18 (14) Satellite radio tuner
C-19 (26) No connection
C-20 (16-B) A/C-ECU [Vehicles with air conditioning system]
C-21 (1-GR) Front wiring harness and floor wiring harness combination
C-22 (20-B) A/C-ECU [Vehicles with air conditioning system]
C-23 (20) Instrument panel wiring harness and floor wiring harness combination
C-24 (24) Instrument panel wiring harness and floor wiring harness combination
C-25 (2) Accessory socket
C-26 (2) Cigarette lighter
C-27 (16) Shift lever [TC-SST]
C-28 (9) Heated seat switch
C-29 (4) Floor wiring harness and console wiring harness combination
C-30 (2) No connection
C-31 (7-B) Jumper connector [Vehicles without steering wheel audio remote control switch]
C-32 (7) Jumper connector [Vehicles with steering wheel audio remote control switch]
C-33 (6) Instrument panel wiring harness and console wiring harness combination
C-34 (4-B) Heated oxygen sensor (Front)
C-35 (10) Selector lever assembly [TC-SST]
C-36 (32) SRS-ECU
C-37 (24-Y) SRS-ECU
C-38 (4-B) G and yaw rate sensor
C-39 (2-B) Knee air bag module (squib)
C-40 (16-B) Data link connector
C-41 (24) Instrument panel wiring harness and floor wiring harness combination
C-42 (20) Instrument panel wiring harness and floor wiring harness combination
C-43 (24-B) Joint connector (4)
C-45 (6) Front wiring harness and floor wiring harness combination
C-46 (26) AWC-ECU
C-47 (22) Front wiring harness and floor wiring harness combination
C-48 (4) Stoplight switch
C-49 (2) Clutch pedal position switch [M/T]
C-51 (2) Clutch interlock switch [M/T]
C-52 (16-B) Heater control module [Vehicles without air conditioning system]
C-53 (20-B) Heater control module [Vehicles without air conditioning system]
C-54 (28) USB box
