Spoiler: Service and Repair

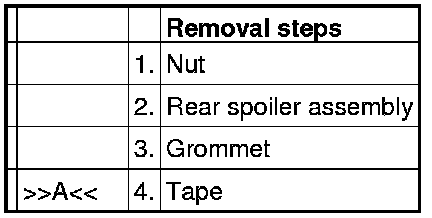

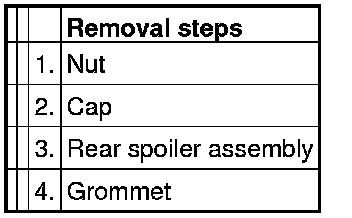

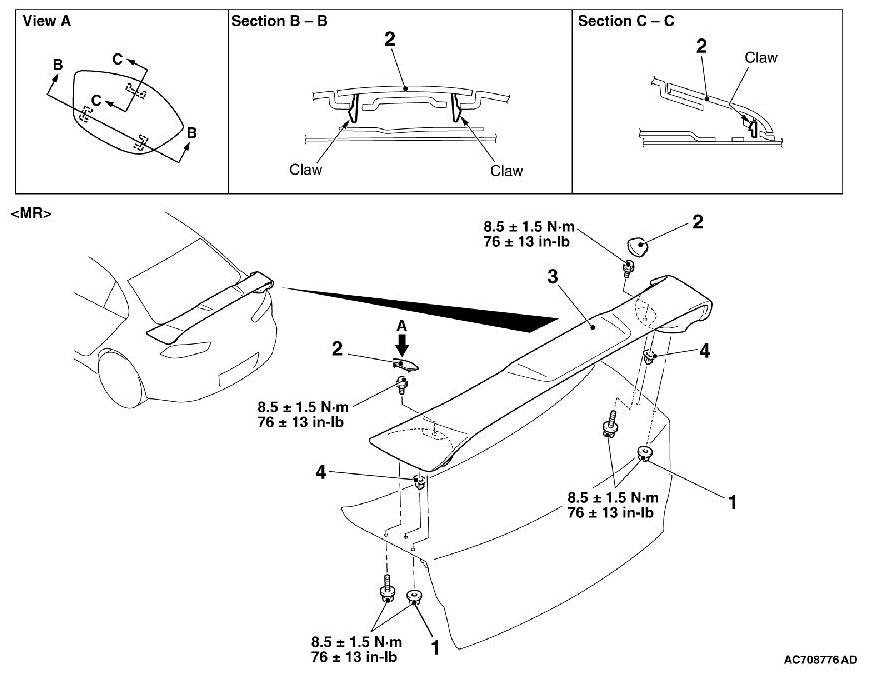

REMOVAL AND INSTALLATION

















INSTALLATION SERVICE POINT

]]A[[

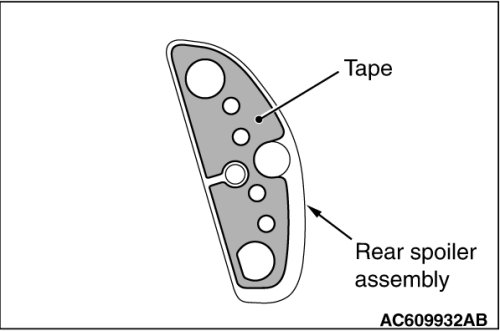

TAPE INSTALLATION





1. Installation position
2.
CAUTION:

- The ambient temperature should be 15 (59) to 40°C(104°F). Ensure that the working area is clean.
- If ambient temperature is less than 15°C (59°F), heat the tape and application surface to a temperature of 15 (59) to 40°C (104°F).
- Be careful that air bubbles are not formed under the tape.

Installation procedure
(1) Wipe the tape application surface and clean it with a rag moistened with isopropyl alcohol.
(2) Remove backing paper from the tape, and apply it to the rear spoiler assembly.
