Amplifier: Service and Repair

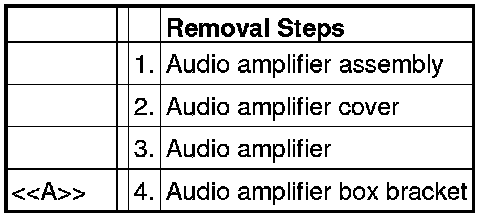

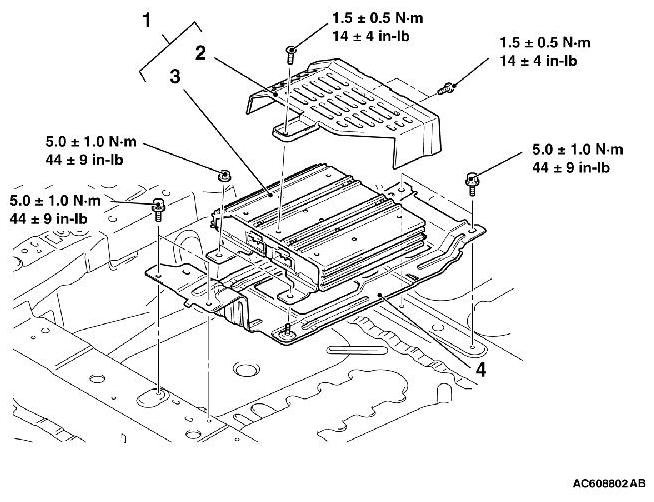

REMOVAL AND INSTALLATION

CAUTION:
To remove the front seat assembly of vehicle with side air bag, refer to Service Precautions Service Precautions and Curtain Air Bag Module(s) Removal and Installation.













REMOVAL SERVICE POINT

[[A]] REMOVAL OF AUDIO AMPLIFIER BOX BRACKET

Turn up the carpet, and remove the audio amplifier box bracket.
