Radio and CD Player




AUDIO ADAPTER INSPECTION

1. Remove the audio adapter.(Refer to Removal and Replacement)

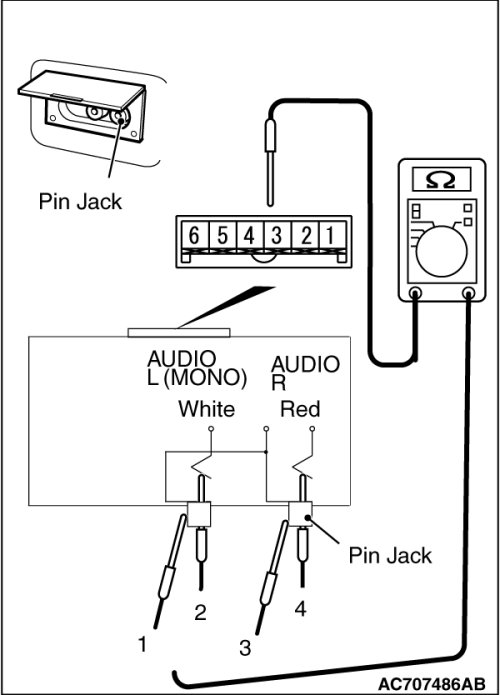

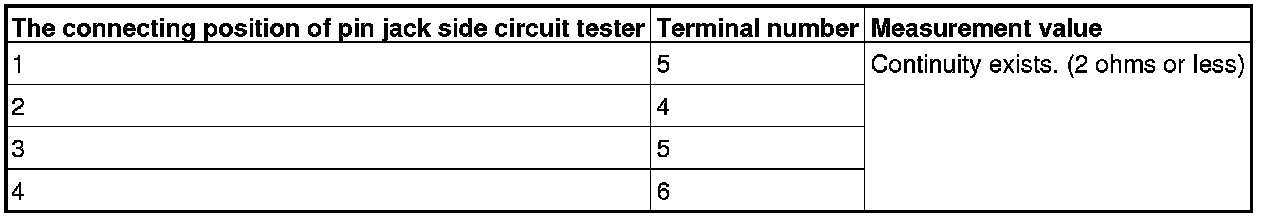

2. Check the continuity between terminals of audio adapter and pin jack.
