Removal and Replacement

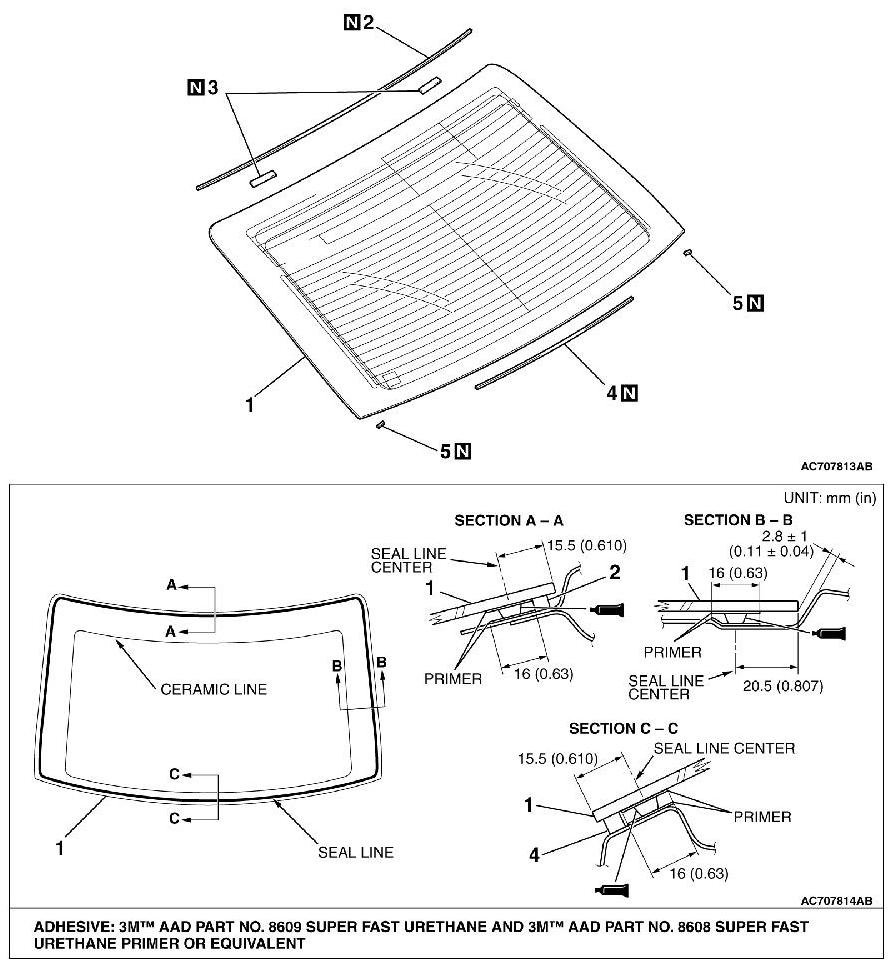

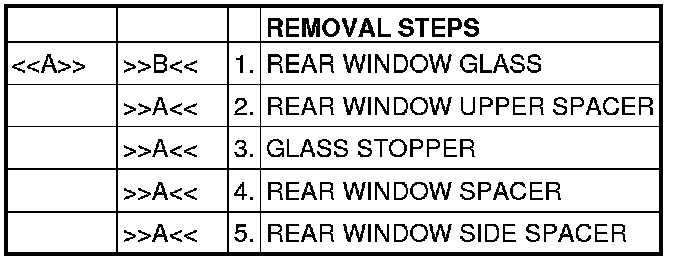

REMOVAL AND INSTALLATION













Required Special Tool:

- MB990480: Glass Holder

REMOVAL SERVICE POINT

[[A]] REAR WINDOW GLASS REMOVAL

Remove the rear window glass using the same procedure as for the windshield (Refer to Removal and Replacement).

INSTALLATION SERVICE POINTS

]]A[[ REAR WINDOW SIDE SPACER/REAR WINDOW SPACER/GLASS STOPPER/REAR WINDOW UPPER SPACER INSTALLATION

1.
CAUTION:
Leave the degreased parts for 3 or more minutes to dry well, before starting on the next step. Do not touch the degreased parts.

Use 3M(TM) AAD Part number 8906 or equivalent. to degrease the inside and outside edges of the rear window glass and the surface of the body flange.

2.

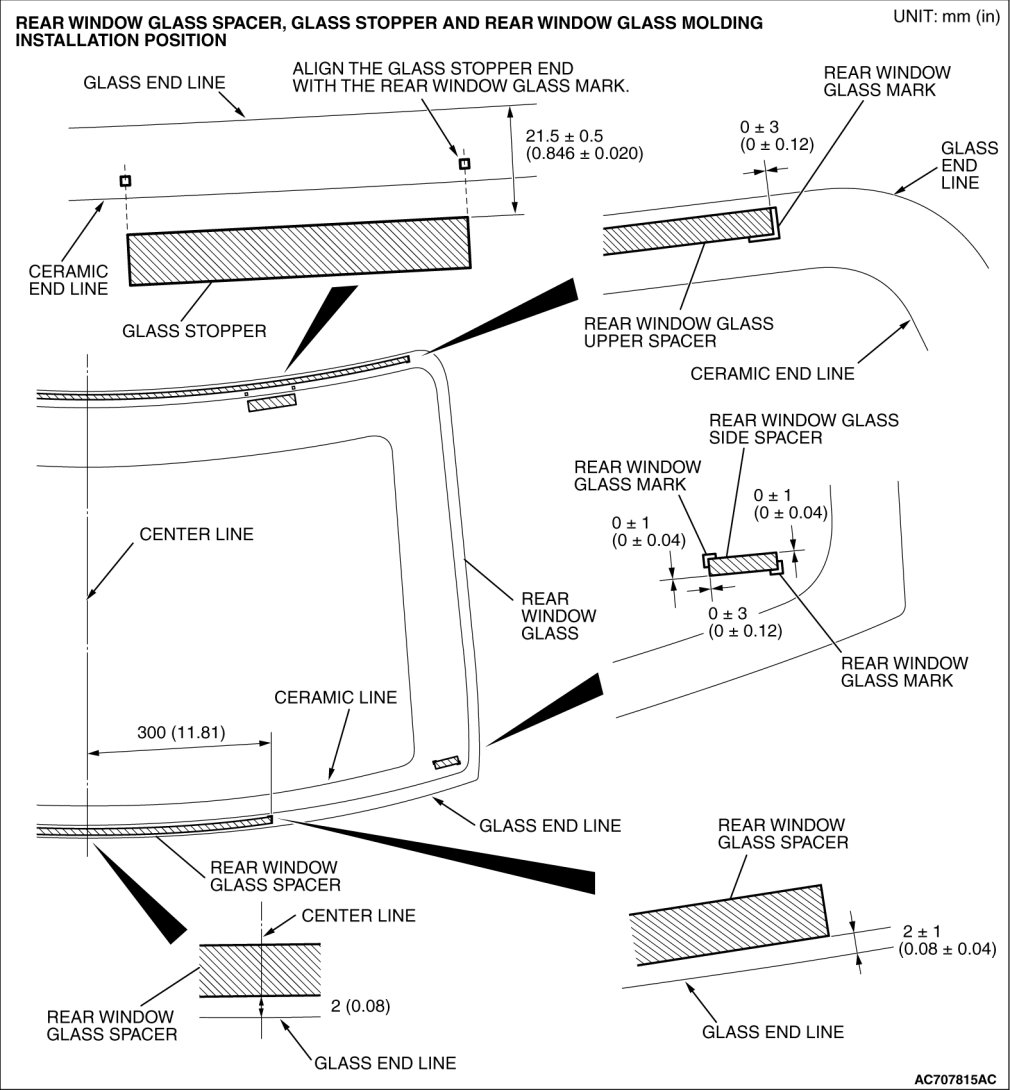

Install the rear window spacer and glass stopper to the specified positions so that there are no adrift or bent surfaces inside the rear window glass.

]]B[[ REAR WINDOW GLASS INSTALLATION

Install the rear window glass in the same way as for the windshield installation (Refer to Removal and Replacement).
