Removal and Replacement

REMOVAL AND INSTALLATION [2.4L ENGINE]













REMOVAL SERVICE POINTS

[[A]] ATF WARMER (TRANSMISSION FLUID COOLER) AND BRACKET ASSEMBLY REMOVAL

With the hose installed, remove the ATF warmer (transmission fluid cooler) and bracket assembly from the transmission case front roll stopper bracket.

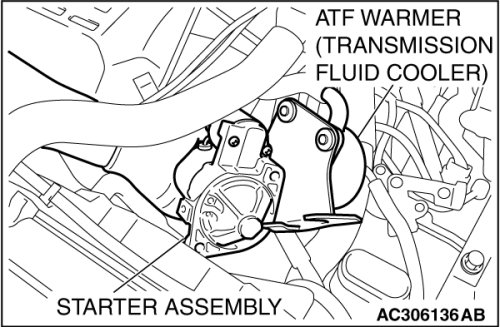

[[B]] STARTER ASSEMBLY REMOVAL





Remove the starter assembly from the side of ATF warmer (transmission fluid cooler).
