Combination Switch: Service and Repair

REMOVAL AND INSTALLATION

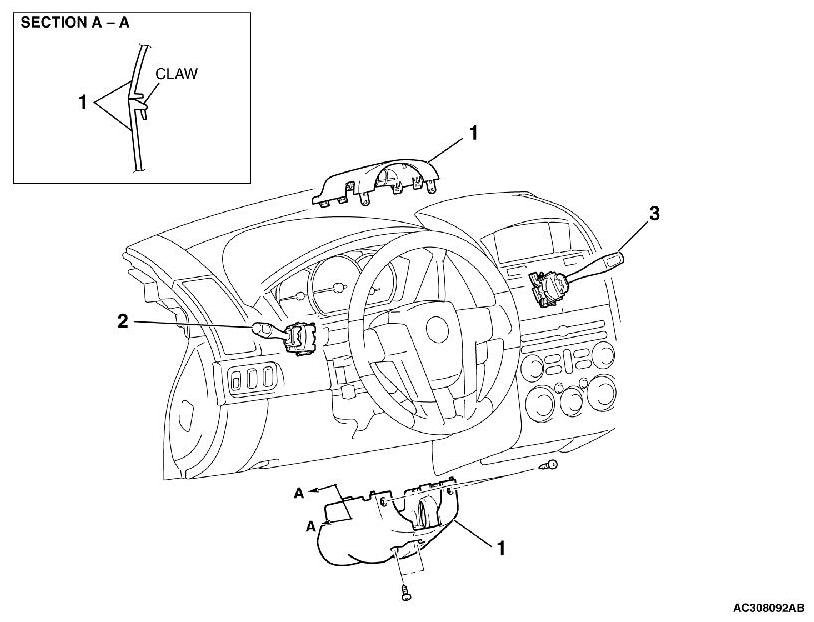

TURN-SIGNAL LIGHT/LIGHTING SWITCH AND WINDSHIELD WIPER/WINDSHIELD WASHER SWITCH

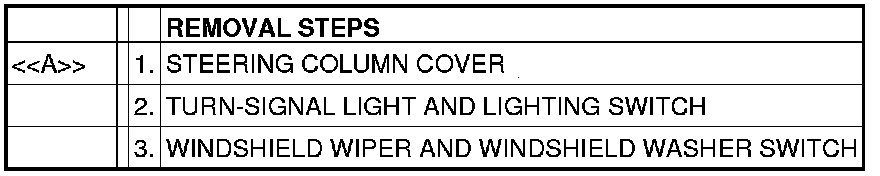

REMOVAL SERVICE POINTS

[[A]] STEERING COLUMN UPPER COVER/STEERING COLUMN LOWER COVER REMOVAL





Rotate the steering wheel with a slightly side-to-side to access and remove the mounting screws.

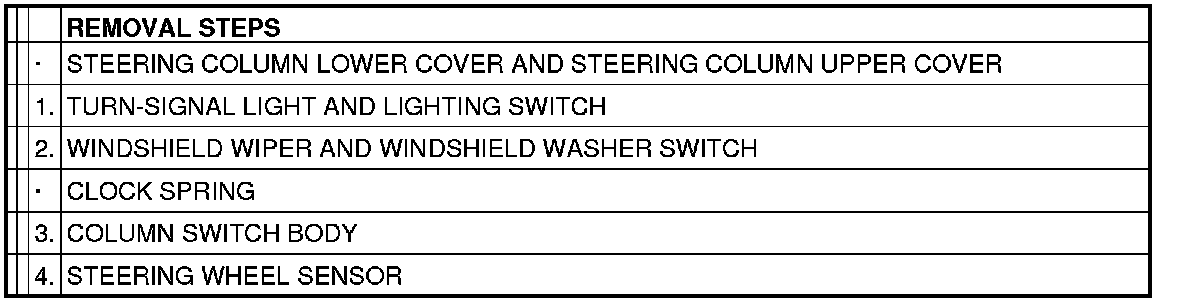

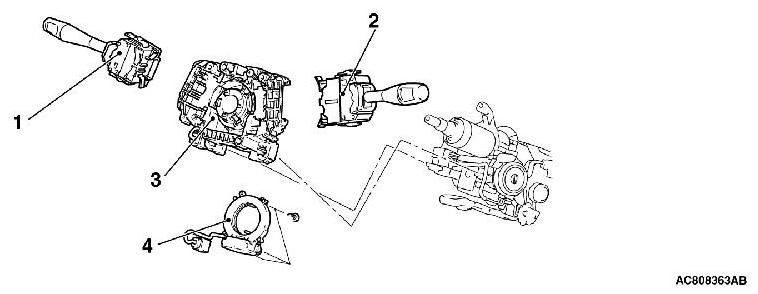

COLUMN SWITCH BODY

CAUTION:

- To remove the driver airbag module, refer to Service Precautions Service Precautions and Air Bag Module and Clock Spring Service and Repair .
- When the steering wheel sensor is replaced, always carry out calibration to make ASC-ECU learn the neutral point. Testing and Inspection .)
