Fuel Tank: Testing and Inspection

LEVELING VALVE CHECK

[Except vehicles for California emission regulation]

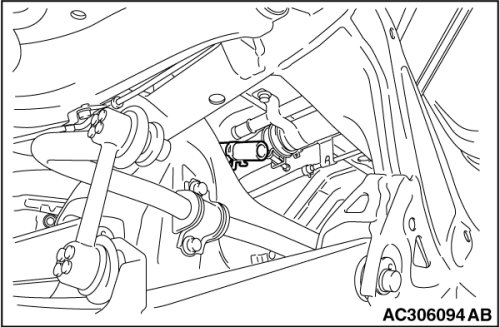

1. Place a drain pan, and disconnect the fuel tank vapor hose A at pipe side.
NOTE:
If fuel leaks from the fuel tank vapor hose A at this stage, the leveling valve may be defective.

2. Open the fuel cap, and fill the fuel tank up.
3. If fuel does not leak from the fuel tank vapor hose A with the fuel tank full, the leveling valve is normal. If not so, the leveling valve may be defective. Lower the fuel tank from the vehicle and replace the valve.
4. Reconnect the fuel tank vapor hose A at the pipe side.

[Vehicles for California emission regulation]

1. Place a drain pan, and disconnect the fuel tank vapor tube A at pipe side.
NOTE:
If fuel leaks from the fuel tank vapor tube A at this stage, the leveling valve may be defective.

2. Open the fuel cap, and fill the fuel tank up.

3. If fuel does not leak from the fuel tank vapor tube A with the fuel tank full, the leveling valve is normal. If not so, the leveling valve may be defective. Lower the fuel tank from the vehicle and replace the valve.

4.
CAUTION:
After installing, slightly pull the fuel tank vapor tube A and ensure that there is no disengaged fuel tank vapor tube A. Also confirm that there is approximately 3 mm (0.12 inch) play at this time.

Reconnect the fuel tank vapor tube A at the pipe side.
