Junction Block

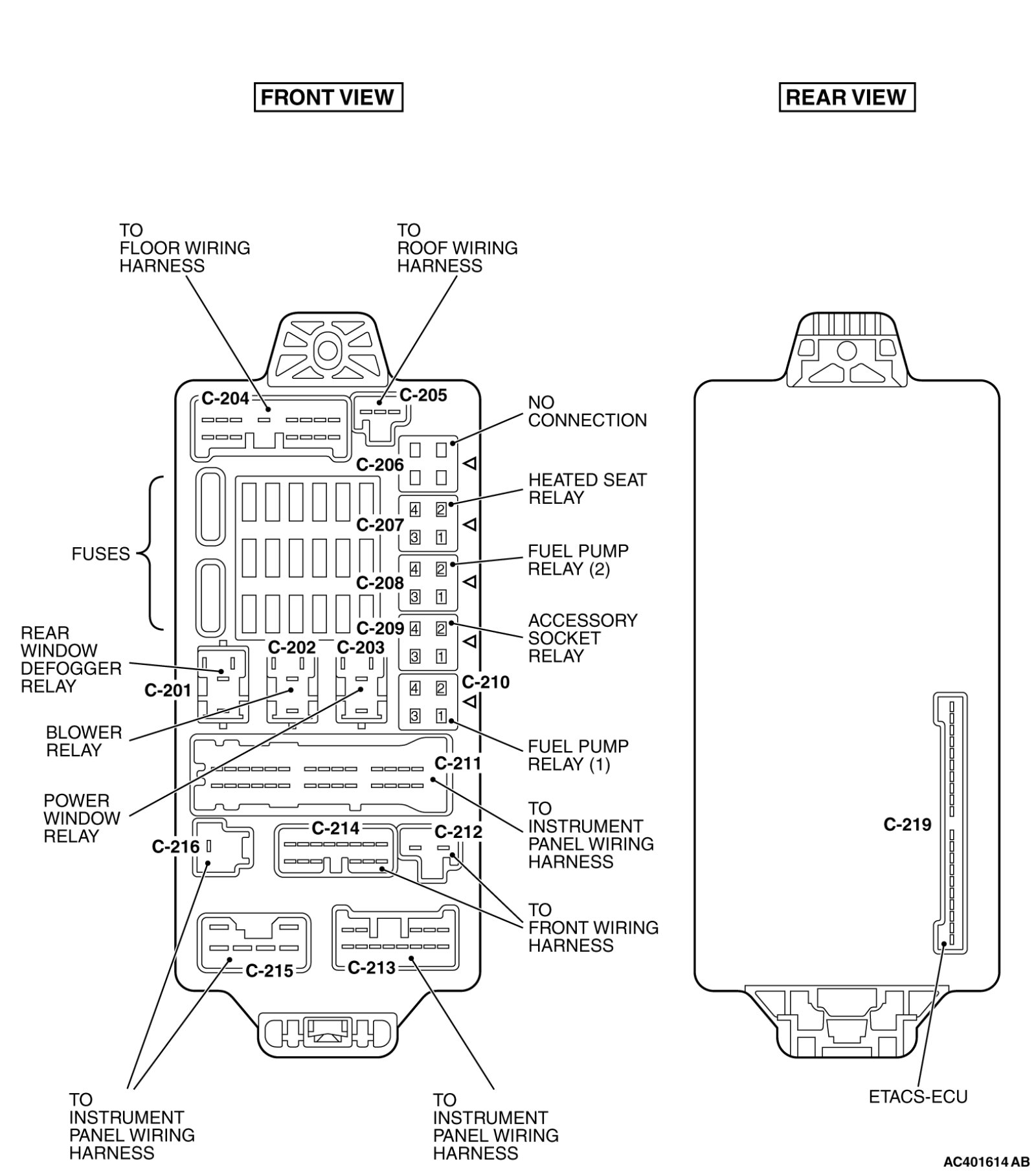

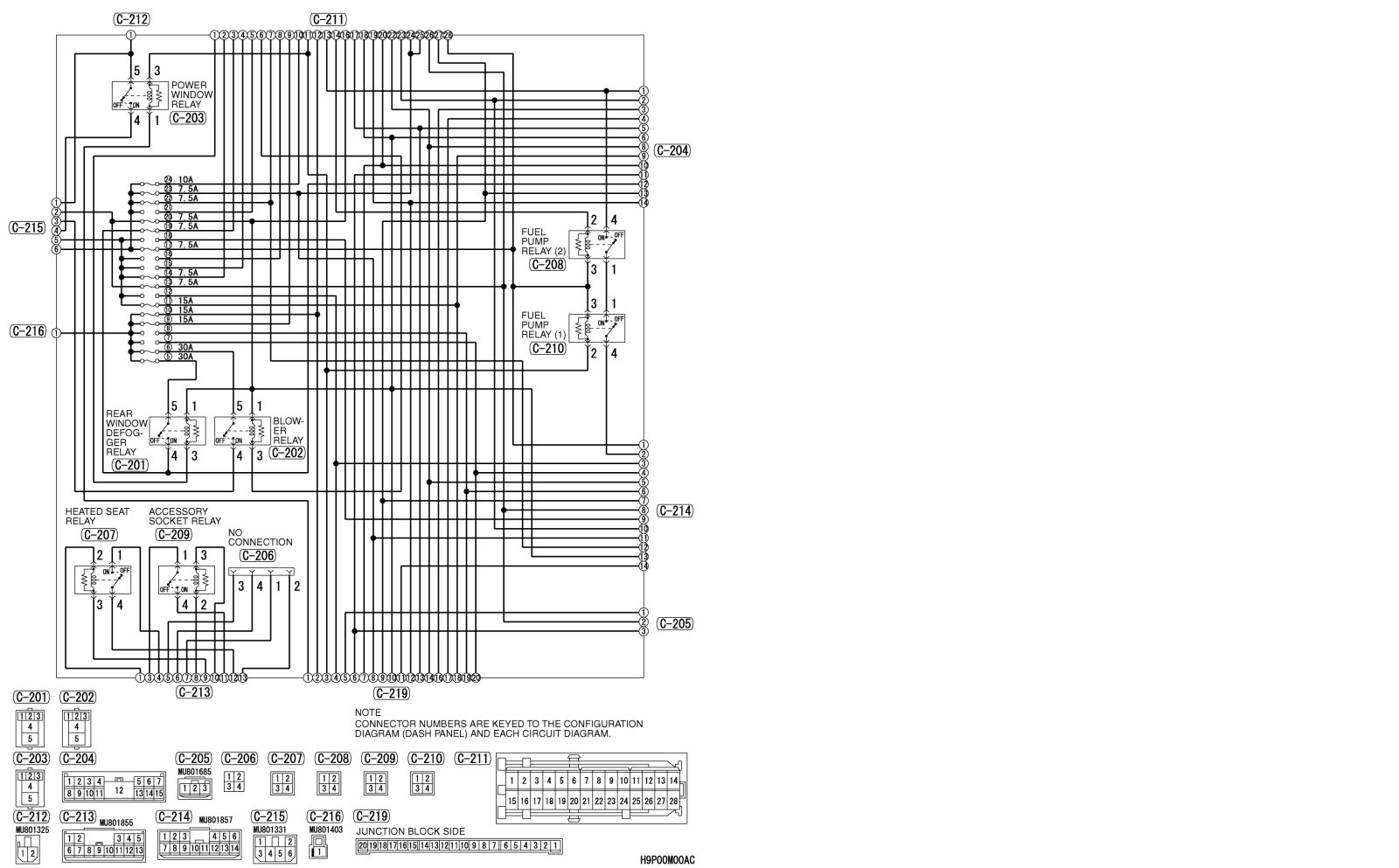

JUNCTION BLOCK









NOTE:
The triangle mark on the relay housing should face that on the junction block.
