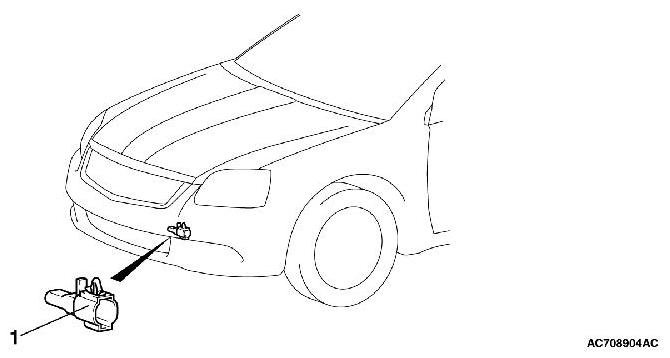

Ambient Air Temperature Sensor Removal and Installation

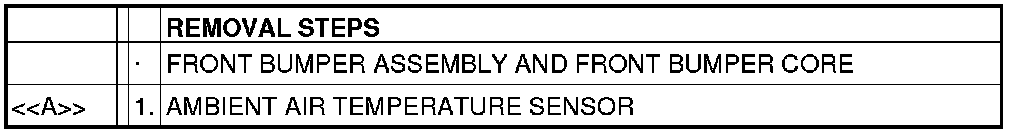

REMOVAL AND INSTALLATION









REMOVAL SERVICE POINT

[[A]] AMBIENT AIR TEMPERATURE SENSOR REMOVAL

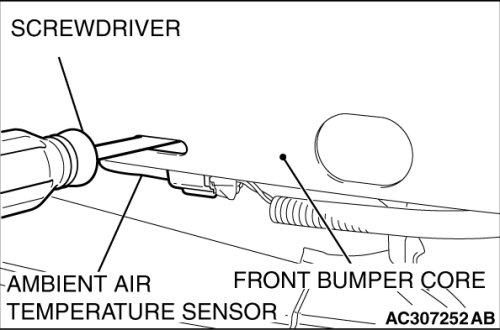

Insert a screwdriver into the mounting hole of the front bumper core to release the clip, and remove the ambient air temperature sensor.
