Generator and Ignition System Removal and Installation

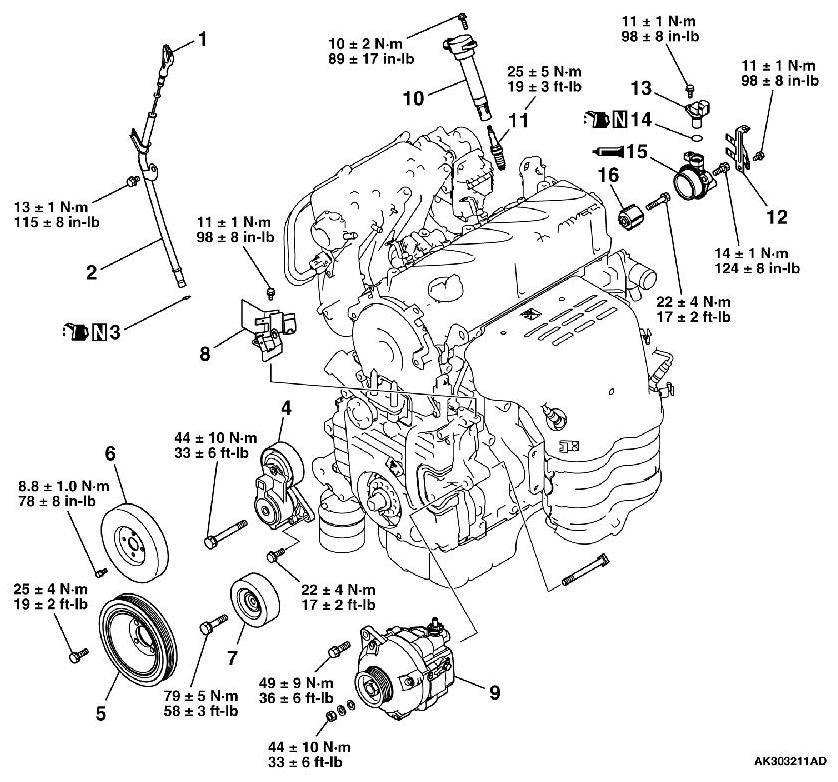

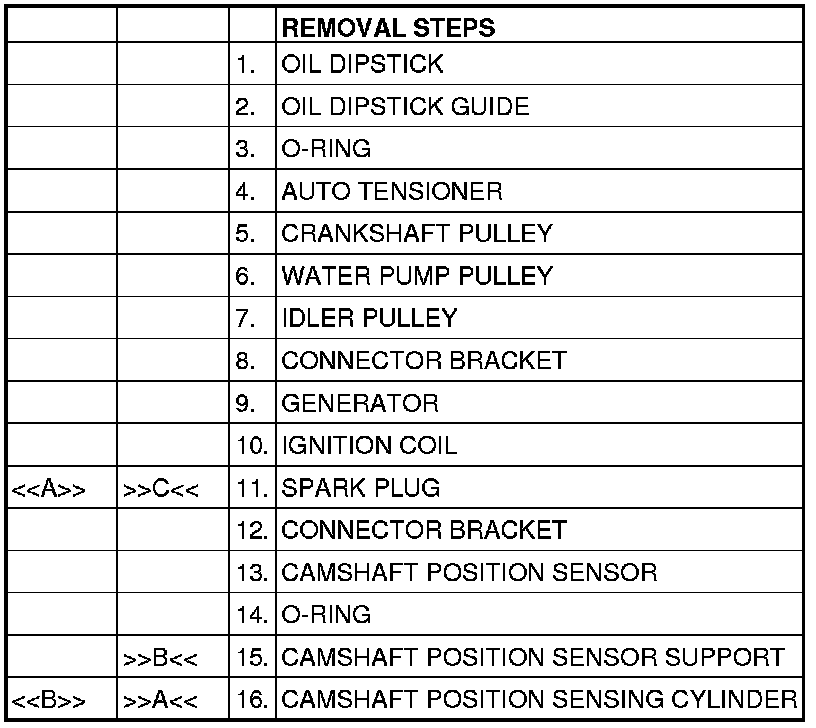

REMOVAL AND INSTALLATION









- MB991398: Spark Plug Wrench
- MD998781: Flywheel Stopper

REMOVAL SERVICE POINT

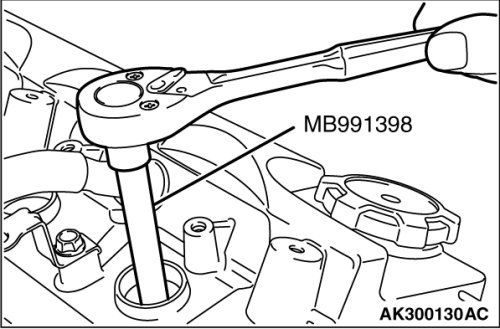

[[A]] SPARK PLUG REMOVAL





Using special tool MB991398, remove the spark plug.

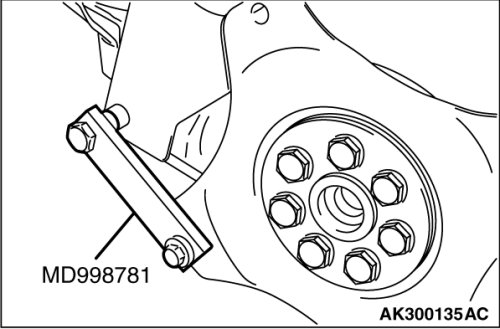

[[B]] CAMSHAFT POSITION SENSING CYLINDER REMOVAL





1. Using special tool MD998781, hold the drive plate.
2. Remove the camshaft position sensing cylinder.

INSTALLATION SERVICE POINT

]]A[[ CAMSHAFT POSITION SENSING CYLINDER INSTALLATION





1. Using special tool MD998781, hold the drive plate.
2. Tighten the camshaft position sensing cylinder to the specified torque.
Tightening torque: 22± 4Nm (17± 2 ft-lb)


]]B[[ CAMSHAFT POSITION SENSOR SUPPORT INSTALLATION





Apply a 3 mm (0.12 inch) bead of sealant (Three bond 1207F or equivalent) in the groove as shown.

]]C[[ SPARK PLUG INSTALLATION





Using special tool MB991398, tighten the spark plug to the specified torque.
Tightening torque: 25± 5Nm (19± 3 ft-lb)
