FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2011
>>
Galant L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Rear Vision Camera
>>

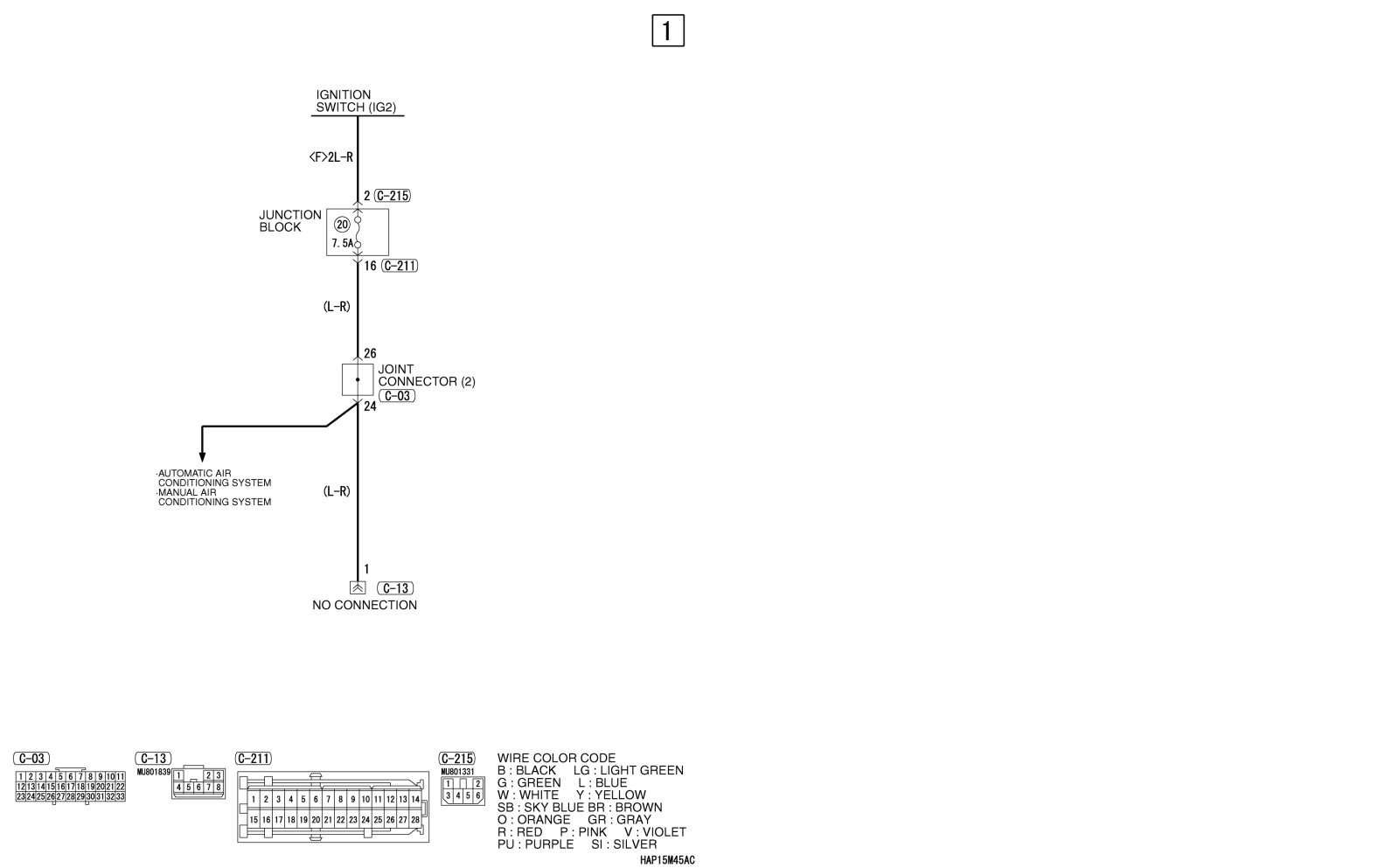

Spare Connector (For Rear View Camera)
Spare Connector (For Rear View Camera)
SPARE CONNECTOR
(FOR REAR VIEW
CAMERA
)
