Home >> Mitsubishi >> 2011 >> Galant L4-2.4L (4G69) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Reserve Terminal For Accessory Socket and Accessory Power

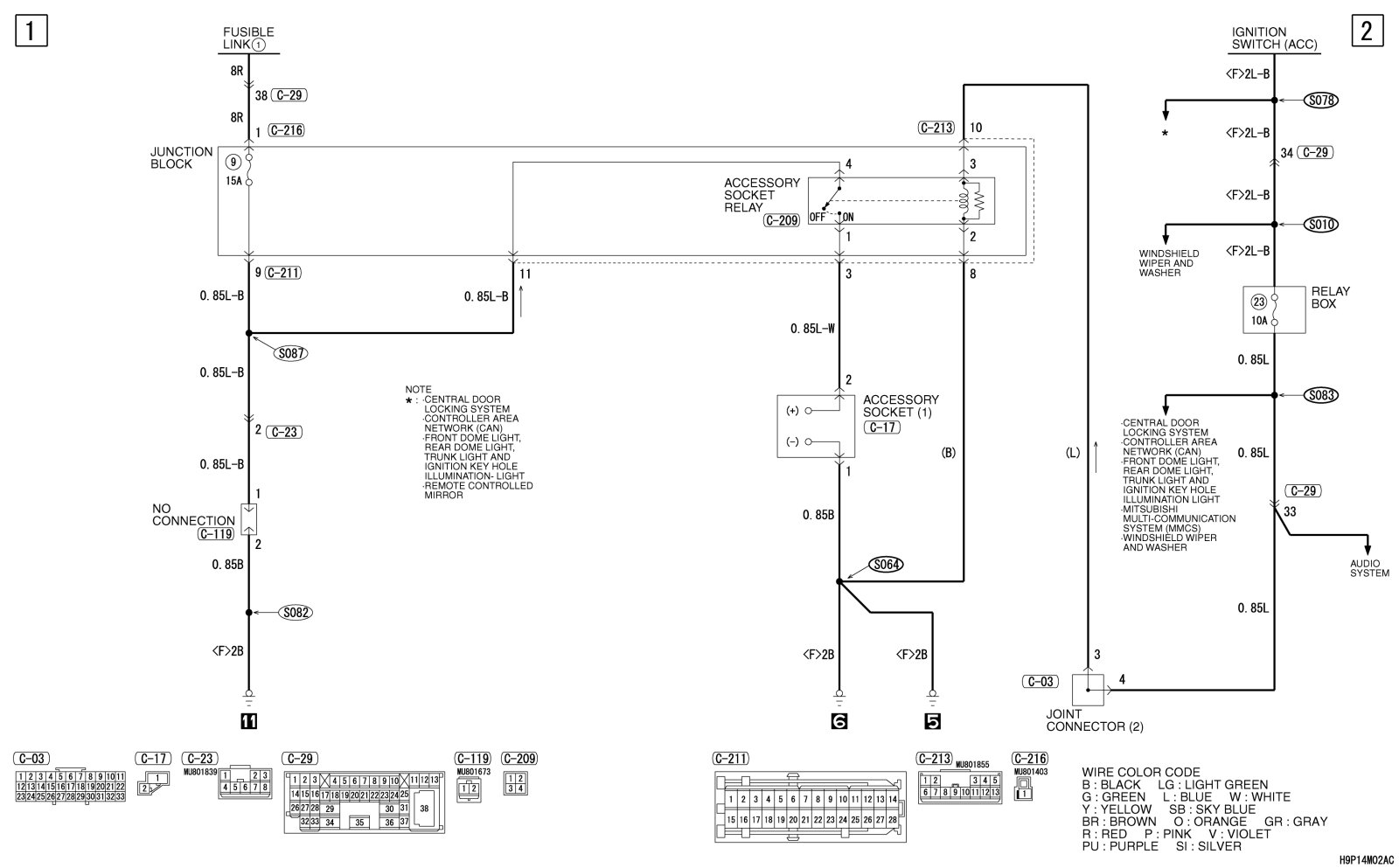

Reserve Terminal For Accessory Socket and Accessory Power




ACCESSORY SOCKET
