FOAMING MATERIAL USAGE LOCATIONS

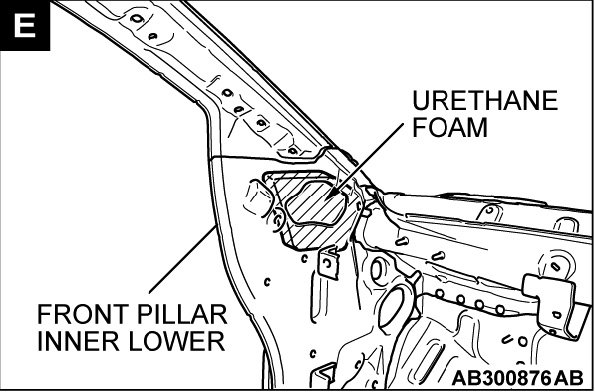

- Introduction of noise was prevented by inserting urethane foam inside the front pillar and rear spring bracket support.

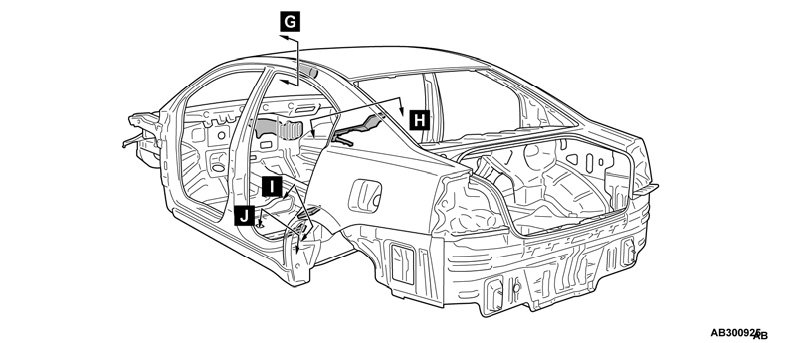

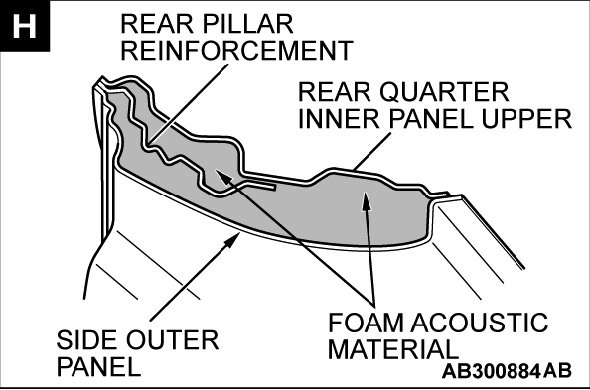

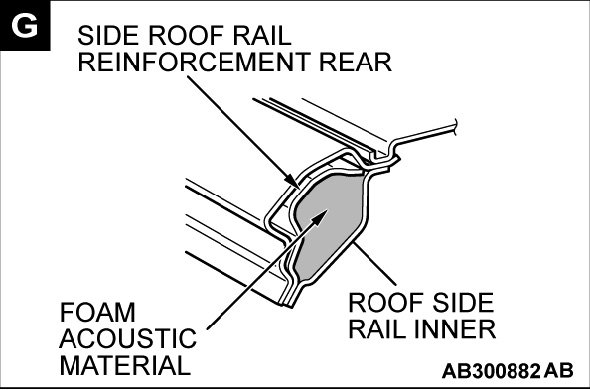

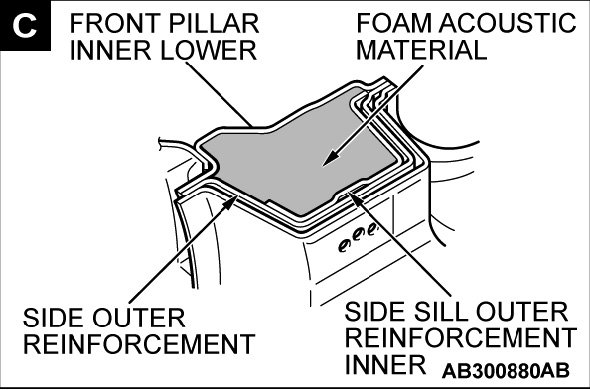

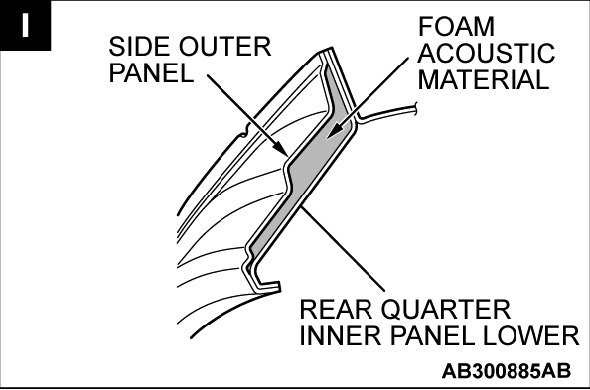

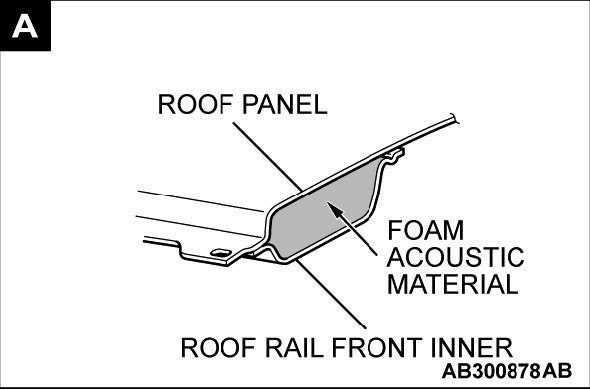

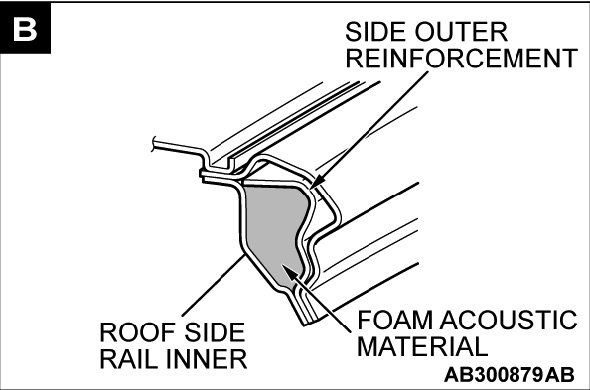

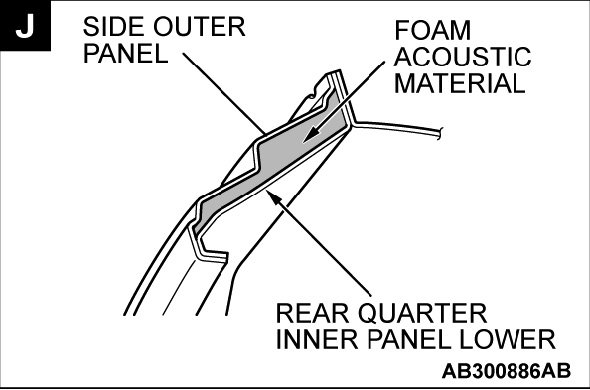

- By filling the roof rail, the front pillar, center pillar, rear pillar and inside the wheelhouse arch with foam acoustic material, penetration of noise is prevented.

CAUTION: The foam materials may burn when heated. Always observe the following instructions.
- Never use a gas burner or burn the areas using foam materials.
- When cutting the parts using foam materials, ensure to use tools (air saw, etc.) that do not generate fire.
- If there are residual foam materials at body side then weld after removing the foam materials from periphery of the welding area.
