Doors: Service and Repair

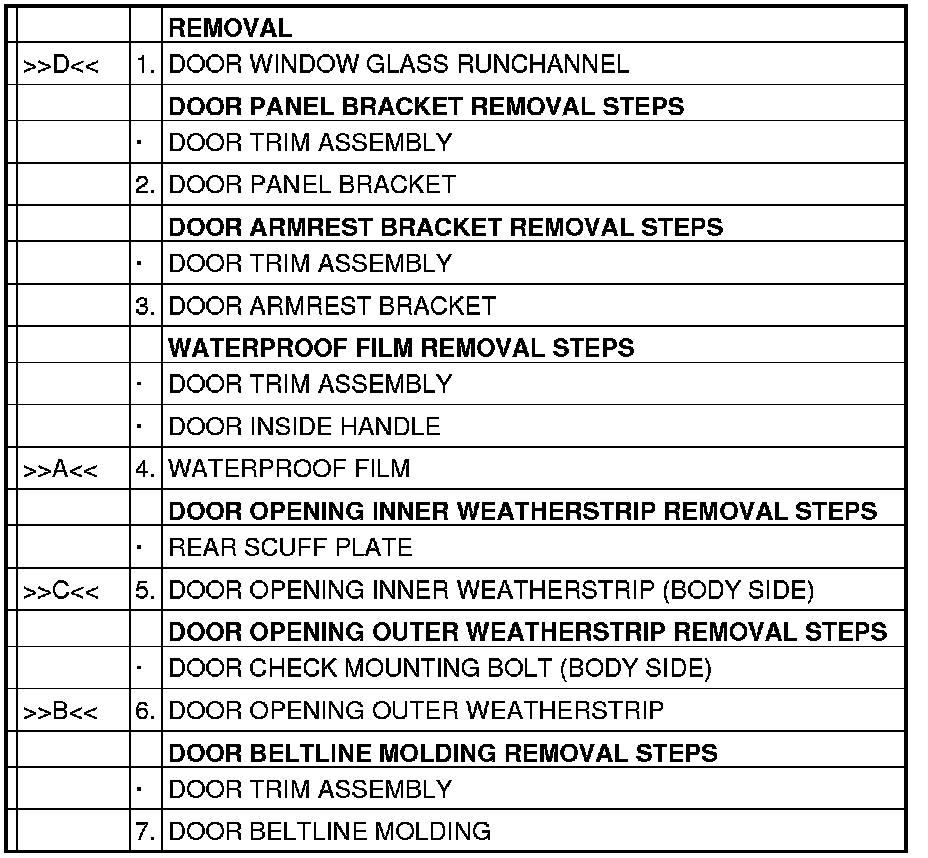

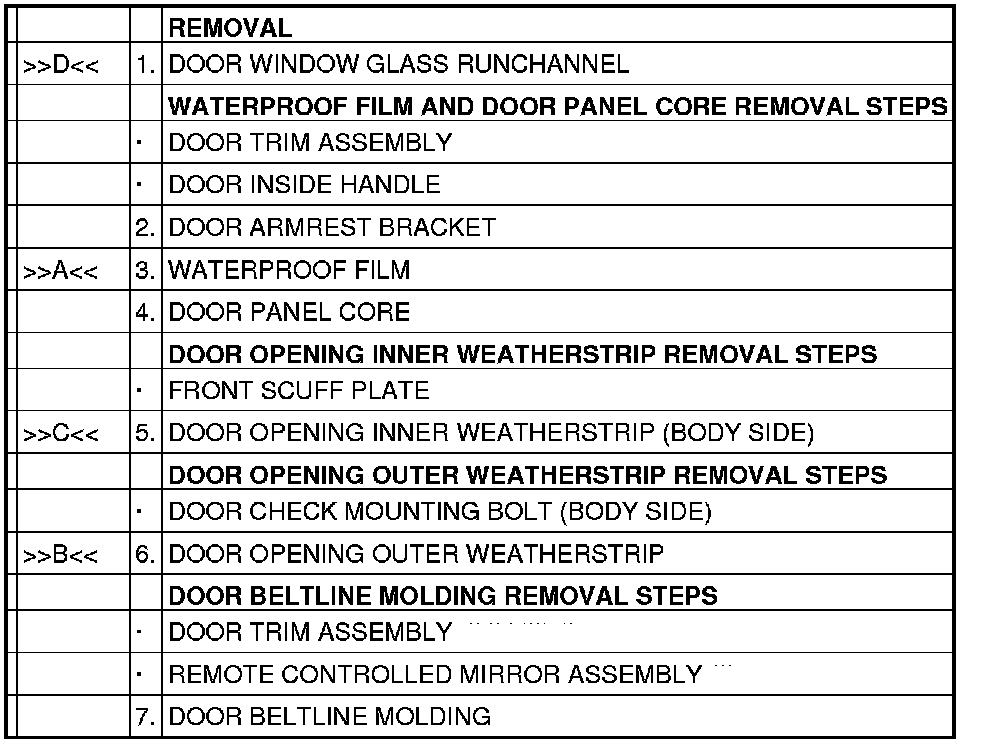

REMOVAL AND INSTALLATION

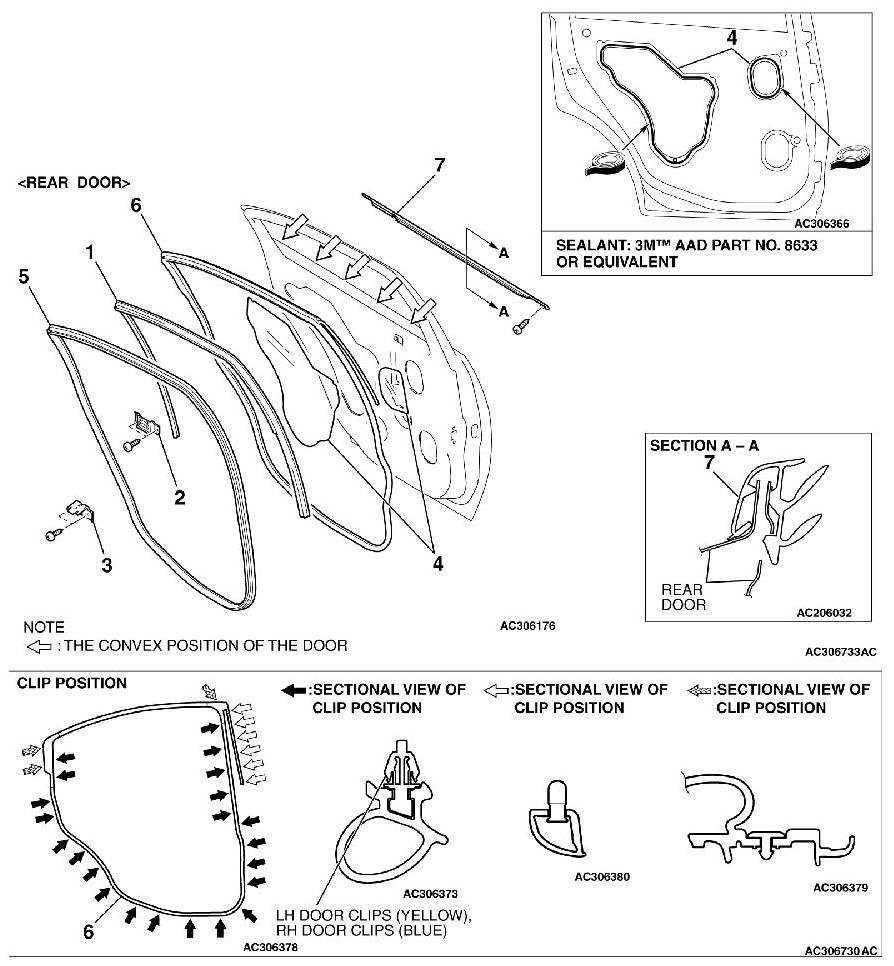

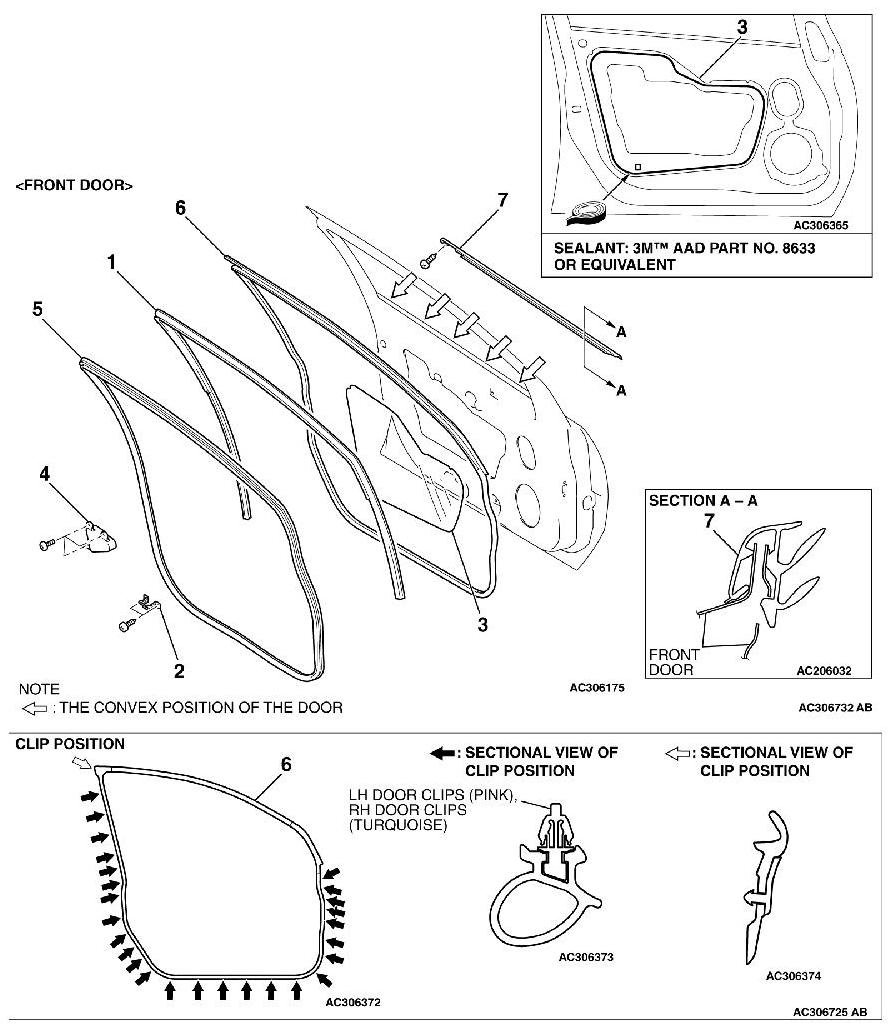

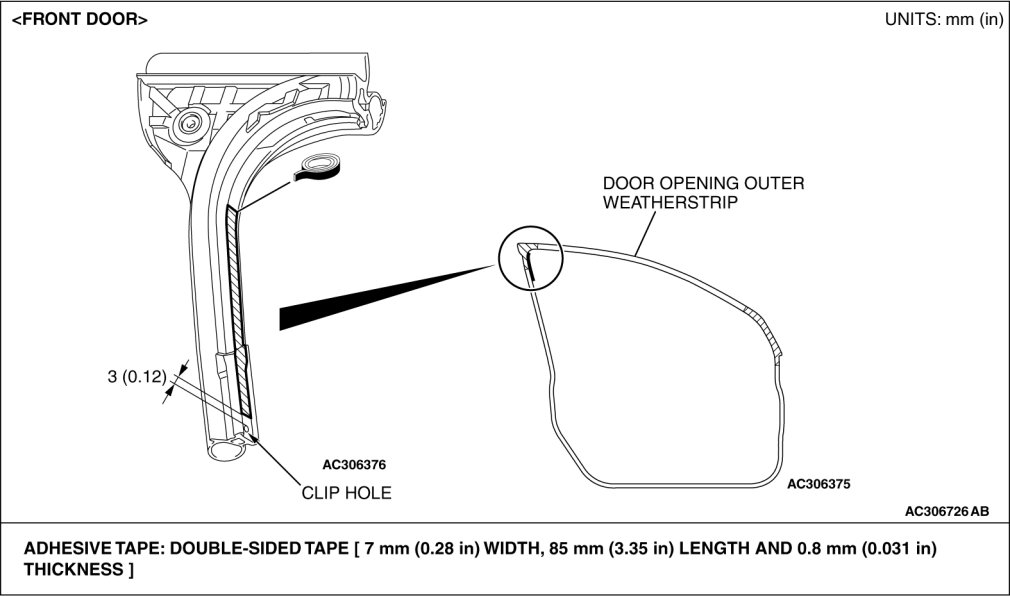

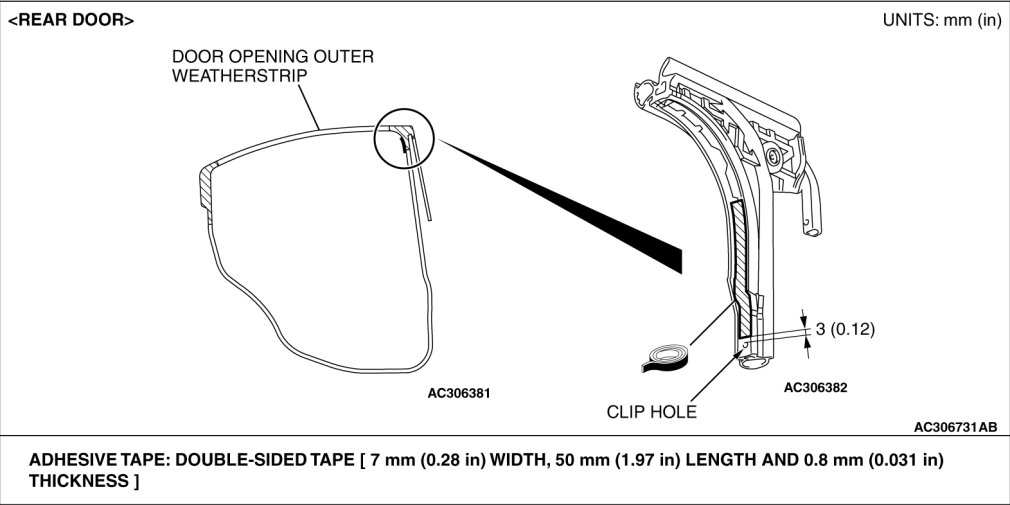

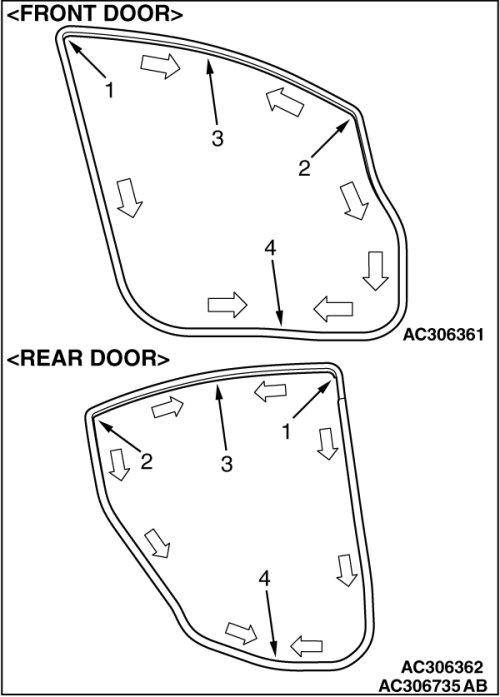

DOUBLE-SIDED TAPE POSITION

INSTALLATION SERVICE POINTS

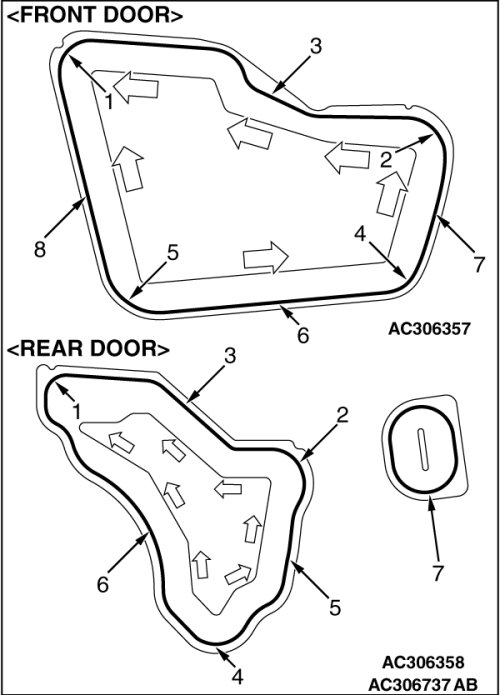

]]A[[ WATERPROOF FILM INSTALLATION

1.
CAUTION:
When the waterproof film is adhered, be careful that 3M(TM)AAD Part number 8633 or equivalent can pass under the inner panel water drain hole.

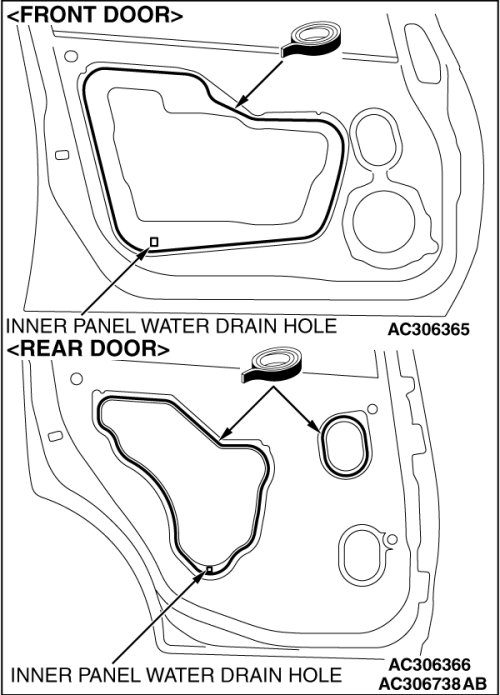

Stick the waterproof film to the door in sequence as shown.
2. Press the waterproof film toward the arrow in the illustration.

]]B[[ DOOR OPENING OUTER WEATHERSTRIP INSTALLATION

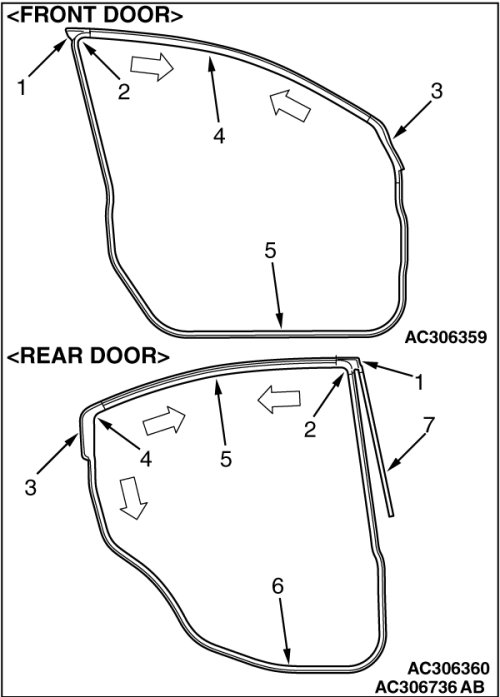

Install the door opening outer weatherstrip in the sequence shown.

]]C[[ DOOR OPENING INNER WEATHERSTRIP INSTALLATION

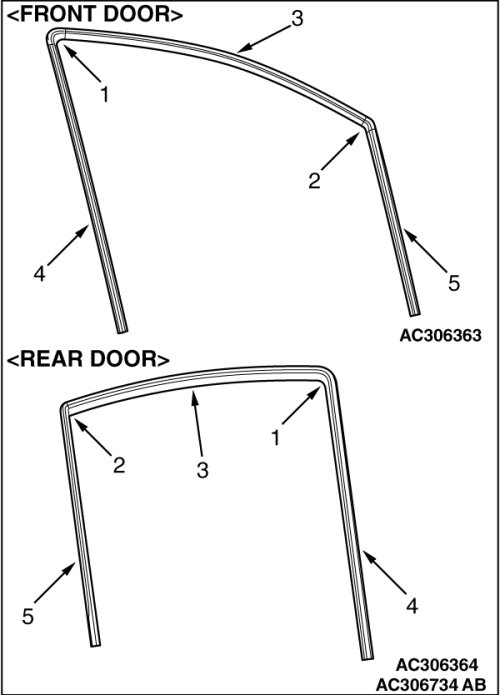

Install the door opening inner weatherstrip in the sequence shown.

]]D[[ DOOR WINDOW GLASS RUN CHANNEL INSTALLATION

Install the door window glass run channel in the sequence shown.
