Introduction

INTRODUCTION TO AUDIO SYSTEM DIAGNOSIS

The diagnosis for symptoms such as noise being emitted, no sound being played, or sound coming only out of one speaker (or set of speakers) is provided.

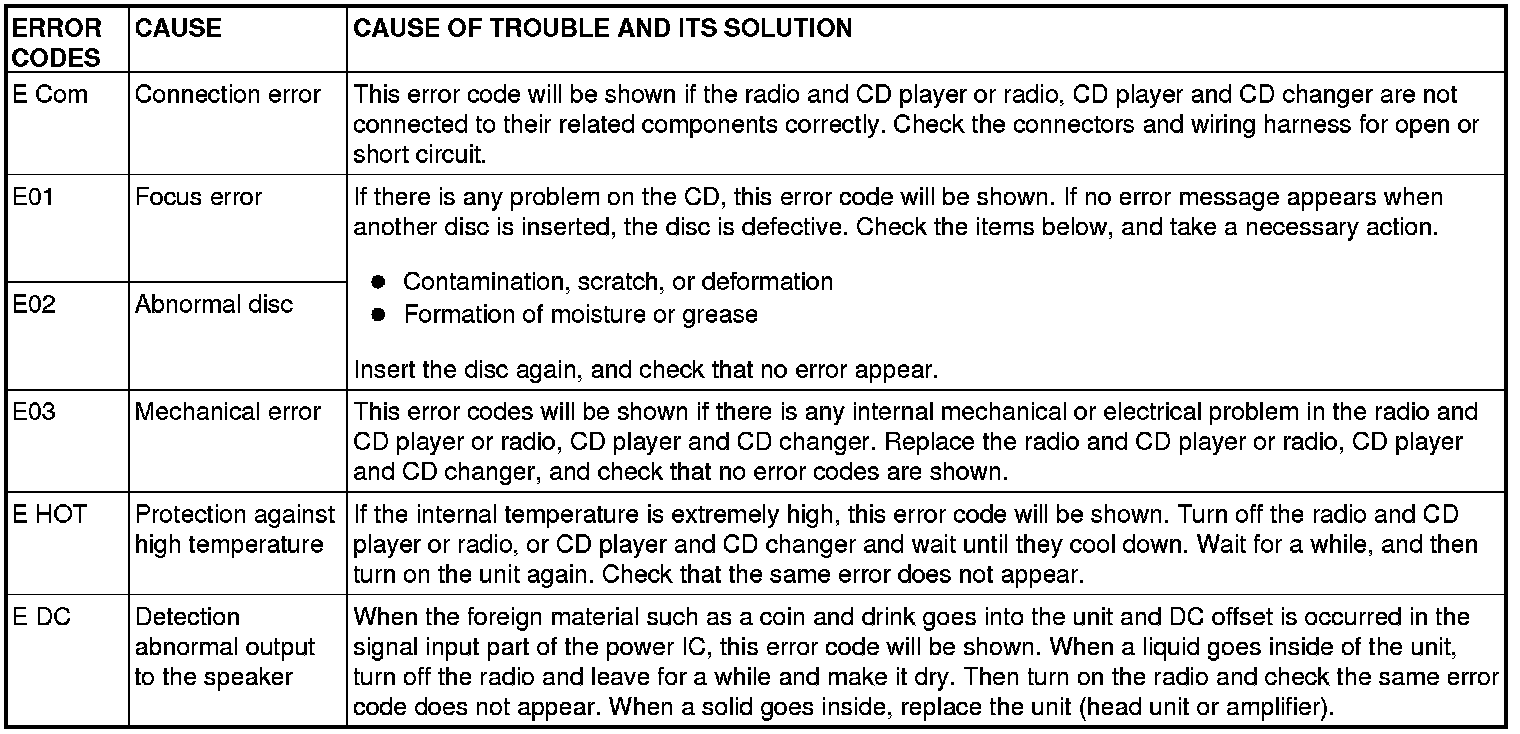

AUDIO ERROR CODES

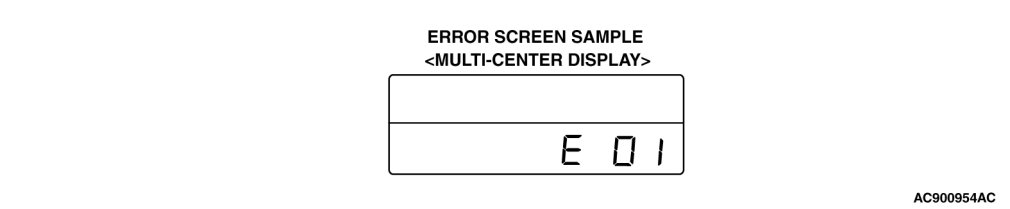

If the radio and CD player or radio, CD player and CD changer detects any malfunction in itself or the inserted CD, the error codes below will be shown on the multi-center display.

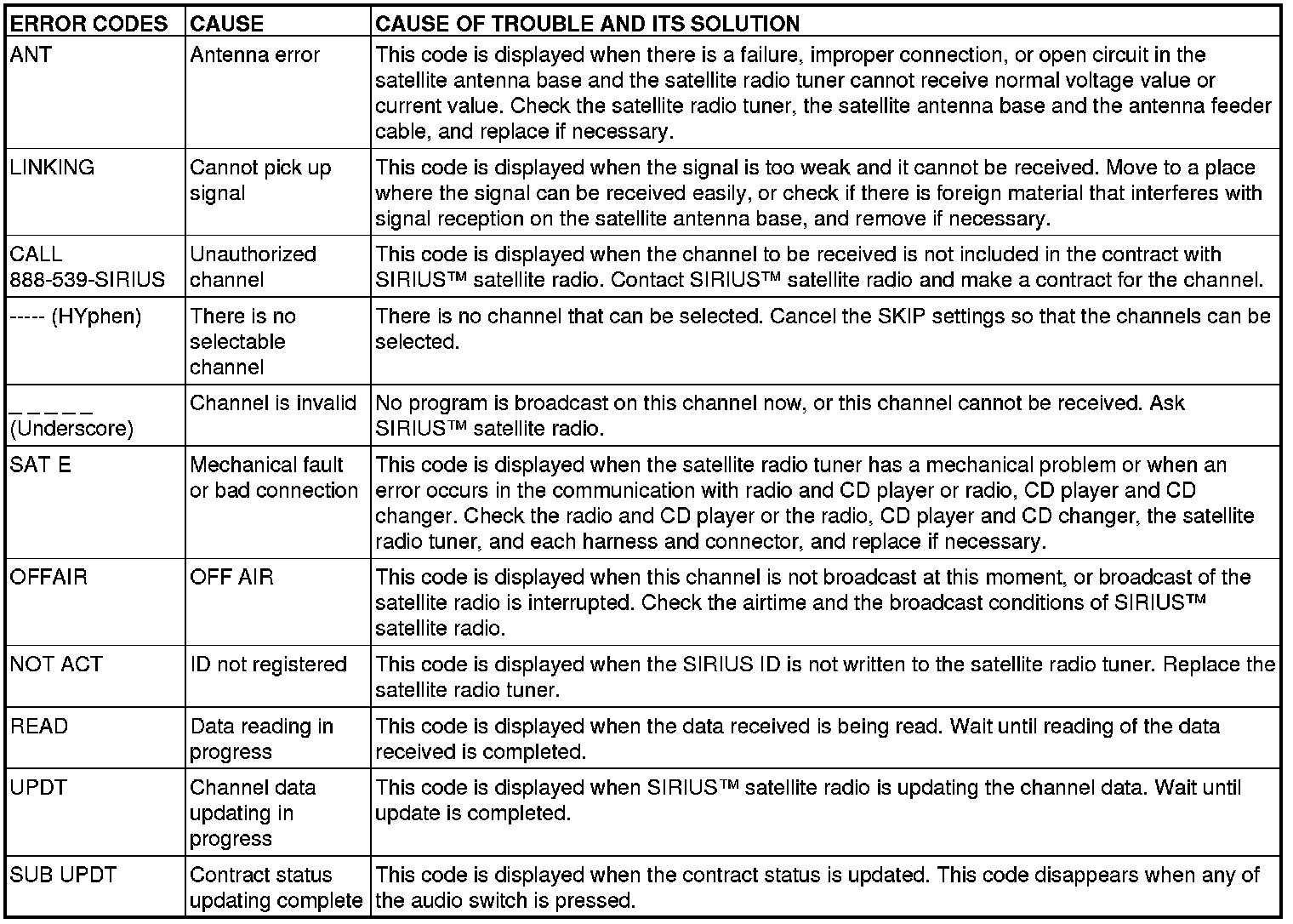

ERROR CODE (SIRIUS satellite radio) [VEHICLES WITH MULTI-CENTER DISPLAY]

The multi-center display displays the error codes below if an abnormality related to the satellite radio is detected.
