Intake Air Plenum: Service and Repair

INTAKE MANIFOLD PLENUM

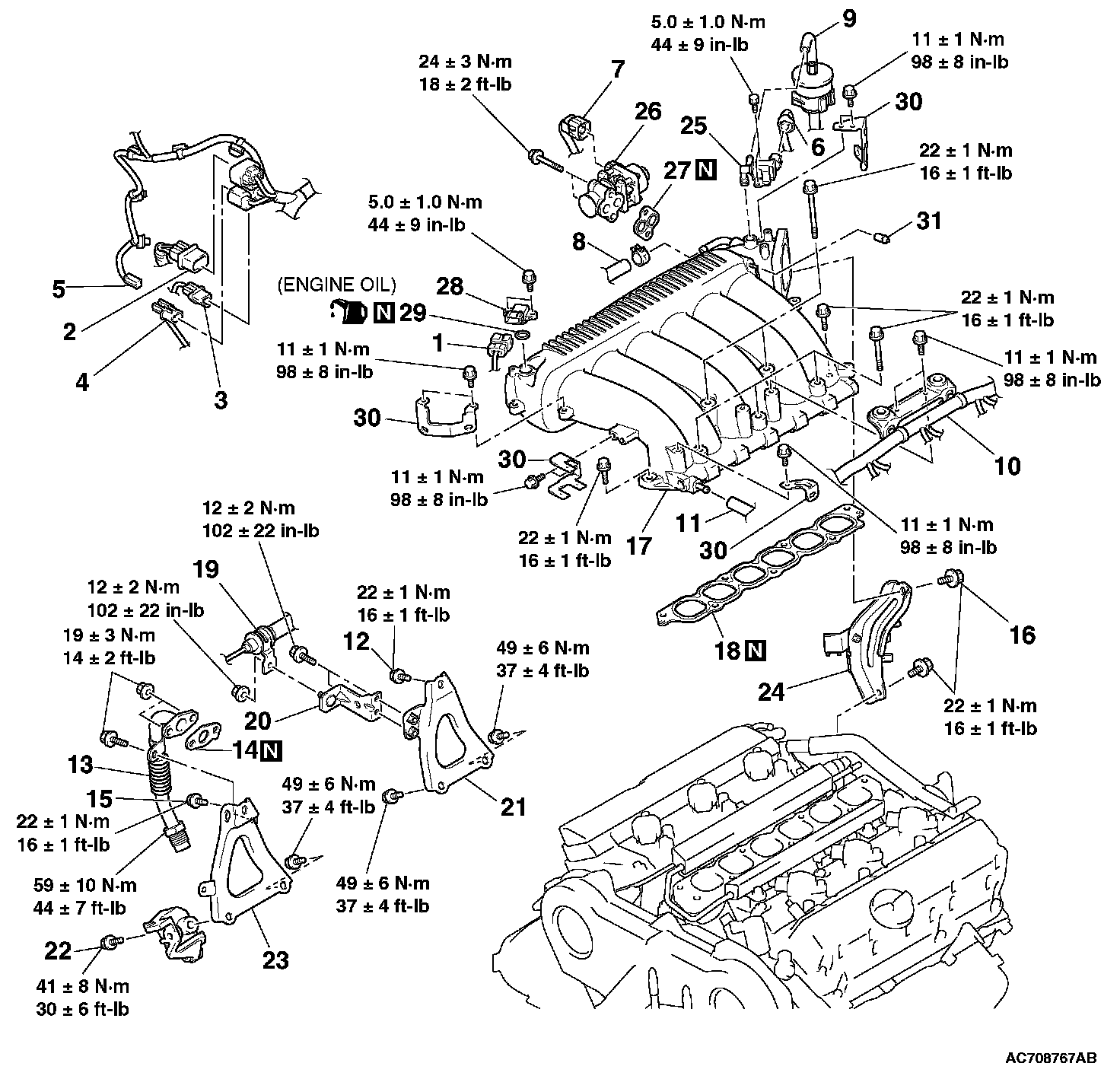

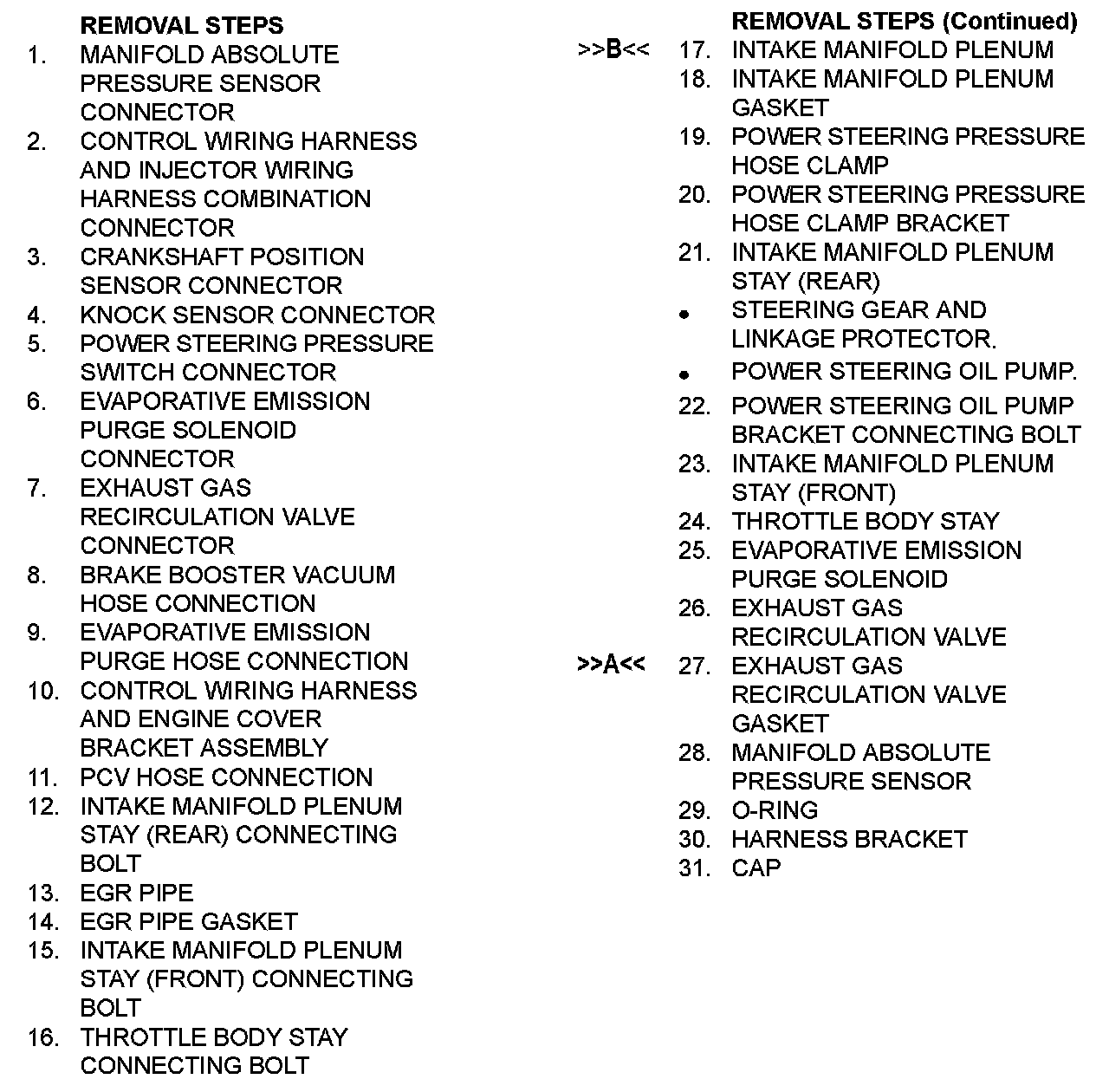

REMOVAL AND INSTALLATION [3.8L ENGINE]













Required Special Tool:
- MD998412: Guide

INSTALLATION SERVICE POINTS

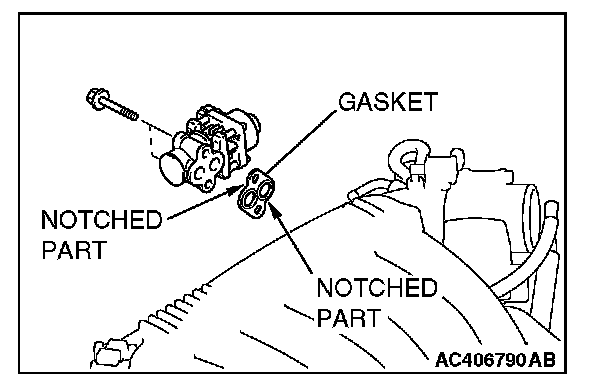

]]A[[ EXHAUST GAS RECIRCULATION VALVE GASKET INSTALLATION







Install the exhaust gas recirculation valve gasket as shown in the illustration.

]]B[[ INTAKE MANIFOLD PLENUM INSTALLATION

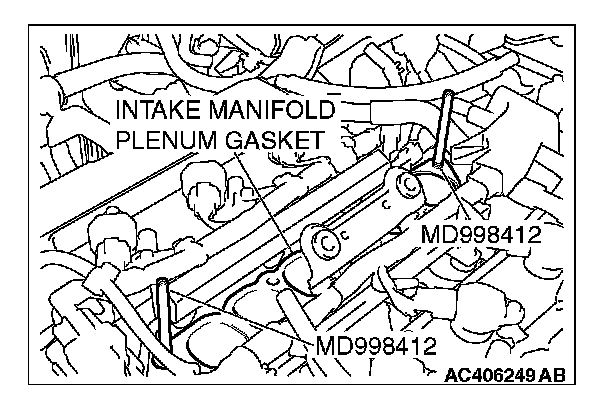

Use special tool MD998412 to install the intake manifold plenum.
