Rear Oil Seal Removal and Installation

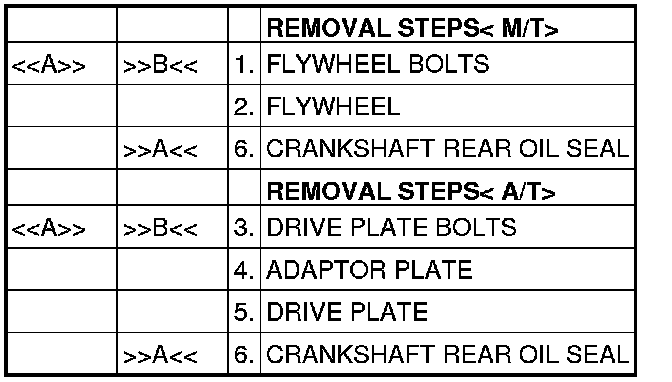

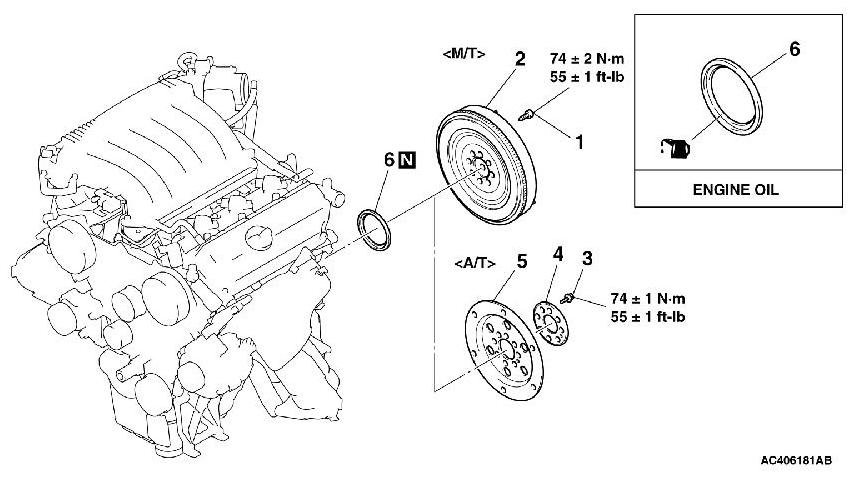

REMOVAL AND INSTALLATION [REAR OIL SEAL]













- MD998718: Crankshaft Rear Oil Seal Installer
- MD998781: Flywheel Stopper

REMOVAL SERVICE POINT

[[A]] FLYWHEEL BOLTS/DRIVE PLATE BOLTS REMOVAL

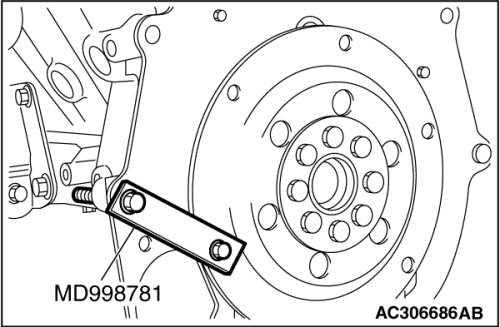

Use special tool MD998781 to secure the drive plate and remove the flywheel bolts or drive plate bolts.

INSTALLATION SERVICE POINTS

]]A[[ CRANKSHAFT REAR OIL SEAL INSTALLATION

1. Apply a small amount of engine oil to the entire circumference of the oil seal lip.

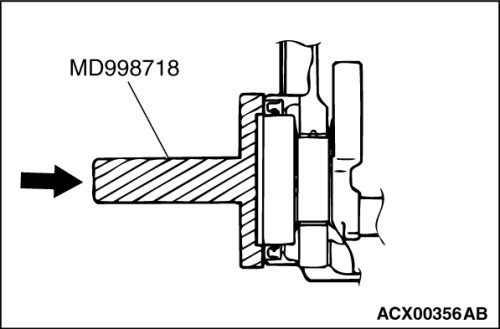

2. Use special tool MD998718 to tap in the oil seal as shown in the illustration.

]]B[[ DRIVE PLATE BOLTS/FLYWHEEL BOLTS INSTALLATION





Use special tool MD998781 in the same way as during removal to install the flywheel bolts or drive plate bolts.
