WINDSHIELD WIPER

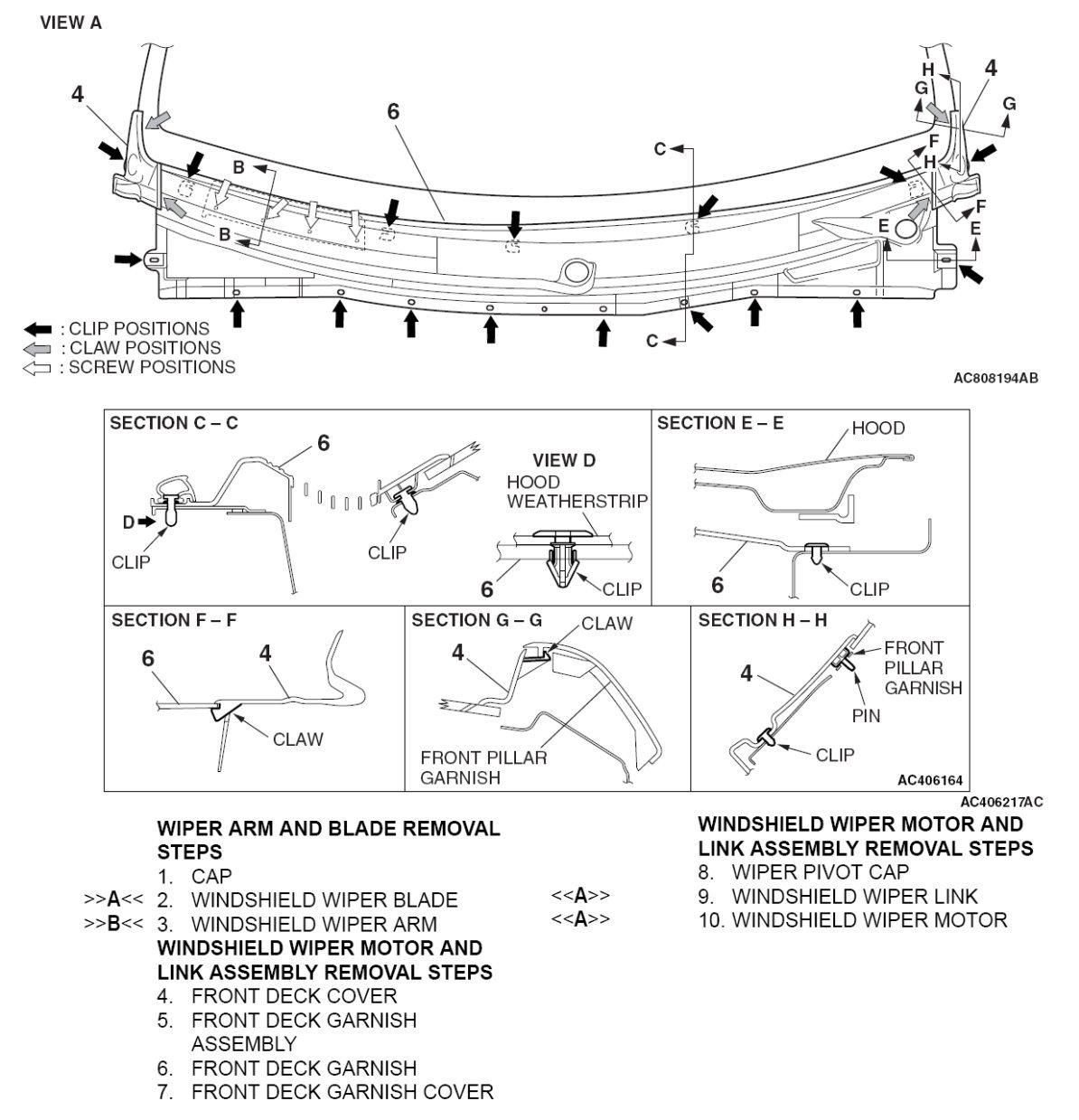

REMOVAL AND INSTALLATION










NOTE: For removal and installation of the wiper and washer switch.

REMOVAL SERVICE POINT

[[A]] WINDSHIELD WIPER LINK/WINDSHIELD WIPER MOTOR REMOVAL

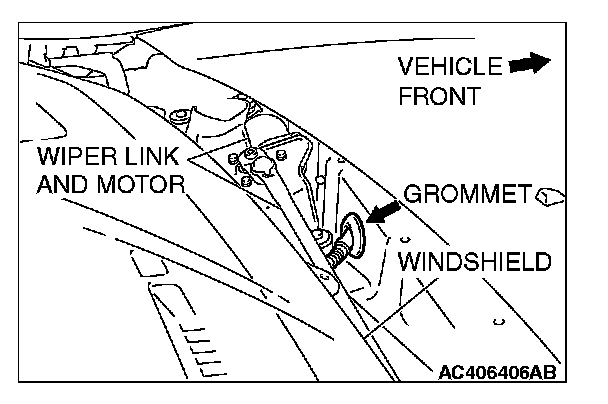

Disengage the harness grommet as shown in the illustration before removing the wiper link and motor.

INSTALLATION SERVICE POINTS

]]A[[ WINDSHIELD WIPER BLADE INSTALLATION

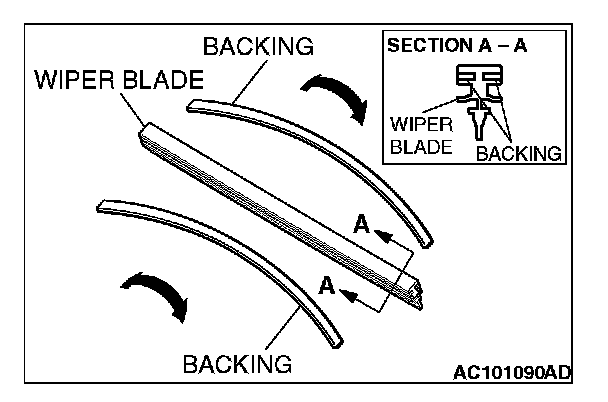

CAUTION: Ensure that the backings are bent in the direction indicated, and then install the backings to the wiper blade rubber.

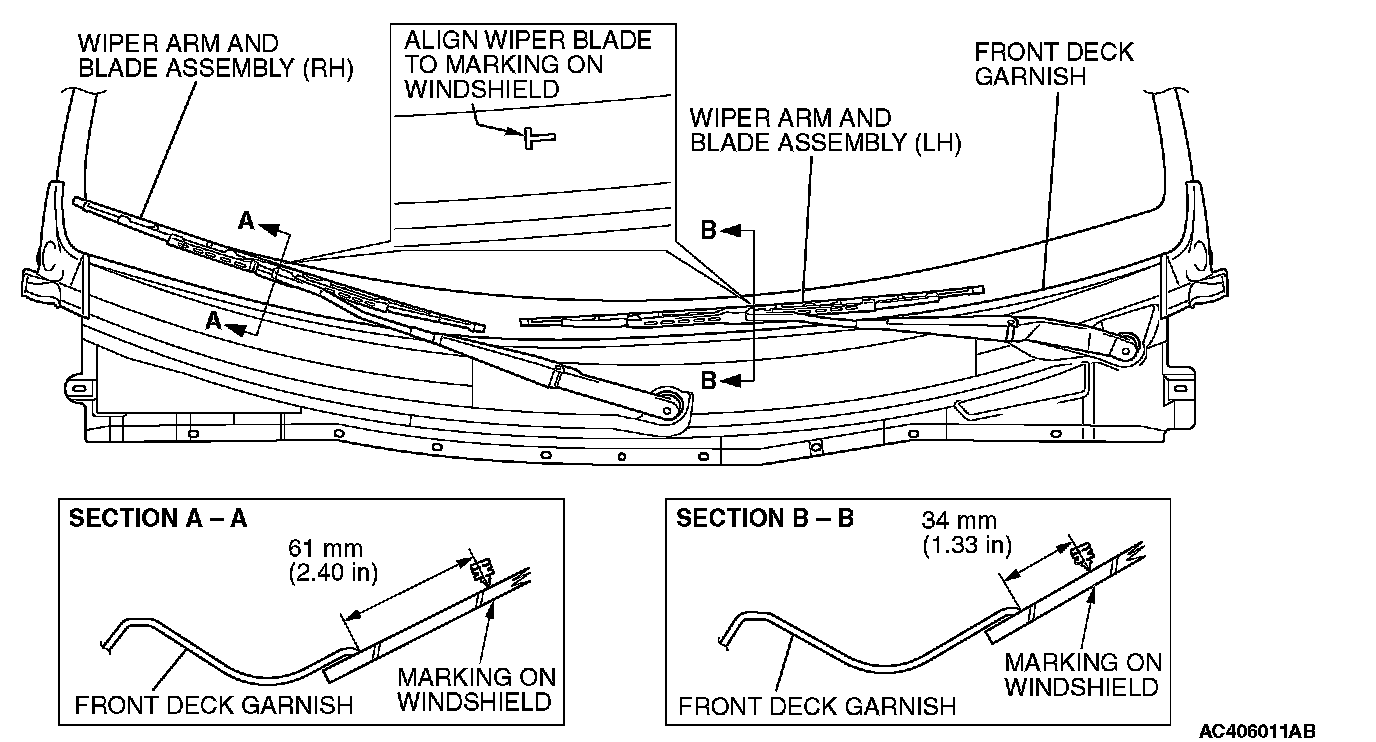

]]B[[ WINDSHIELD WIPER ARM INSTALLATION







Install the wiper arm and blade at the position specified above.
