Rear Wiper and Washer

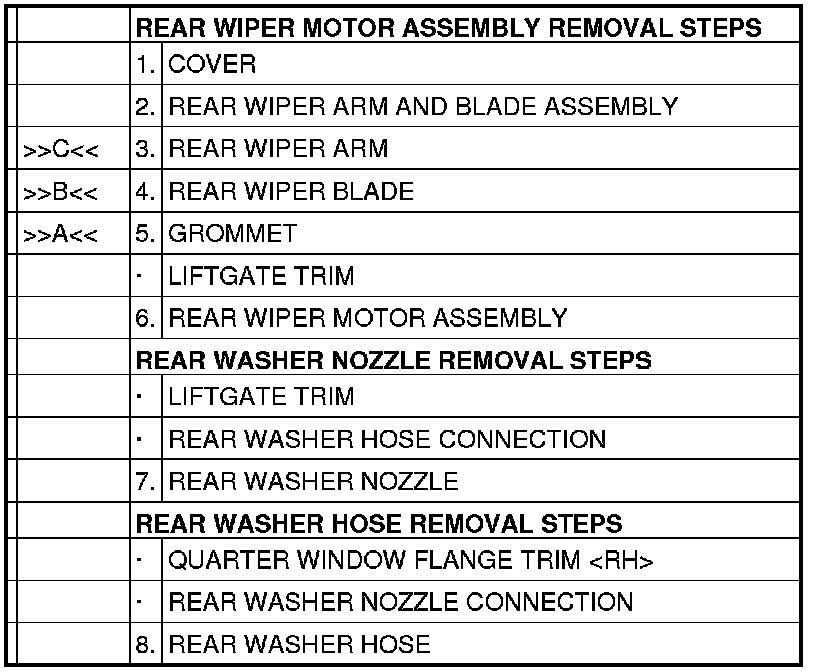

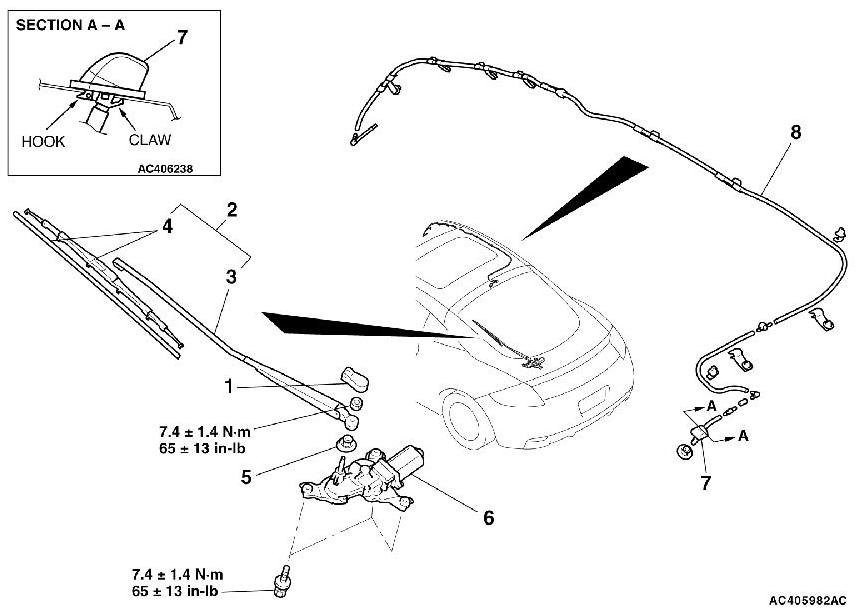

REMOVAL AND INSTALLATION









NOTE:
For removal and installation of the wiper and washer switch, refer to Column Switch Service and Repair.

NOTE:
For removal and installation of the washer tank assembly and rear washer motor, refer to Windshield Wiper and Washer Windshield Washer Removal and Installation.

INSTALLATION SERVICE POINTS

]]A[[ GROMMET INSTALLATION





Install the grommet so that the arrow points backward.

]]B[[ REAR WIPER BLADE INSTALLATION





CAUTION:
Ensure that the backings are bent in the direction indicated, and then install the backings to the wiper blade rubber.

]]C[[REAR WIPER ARM INSTALLATION

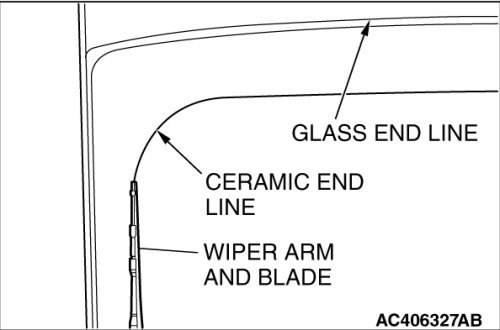

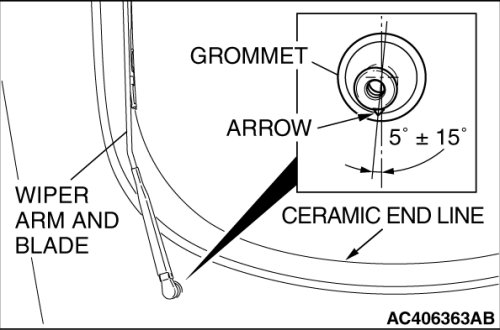

Install the wiper arm and blade assembly so that it is positioned on the ceramic end line.
