Component Tests and General Diagnostics

INSPECTION

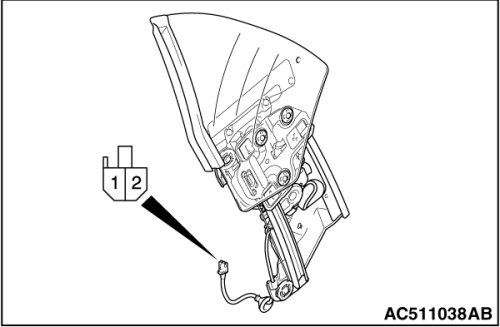

QUARTER WINDOW REGULATOR MOTOR CHECK

1. Connect a battery directly to the motor terminals and check that the motor runs smoothly.

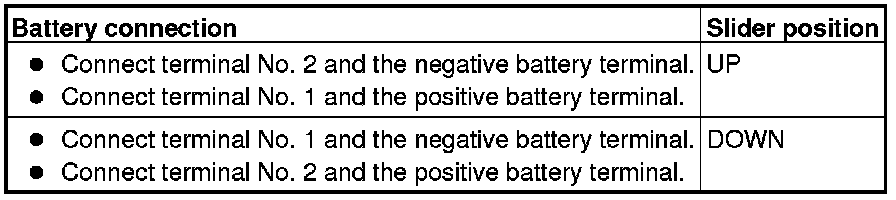

2. Check that the motor runs in the opposite direction when the battery is connected with the polarity reversed.

3. If a defect is found, replace the quarter window regulator as an assembly.
