Power Window Switch: Testing and Inspection
INSPECTION
POWER WINDOW SWITCH
CONTINUITY CHECK
Remove the
power window switch
.

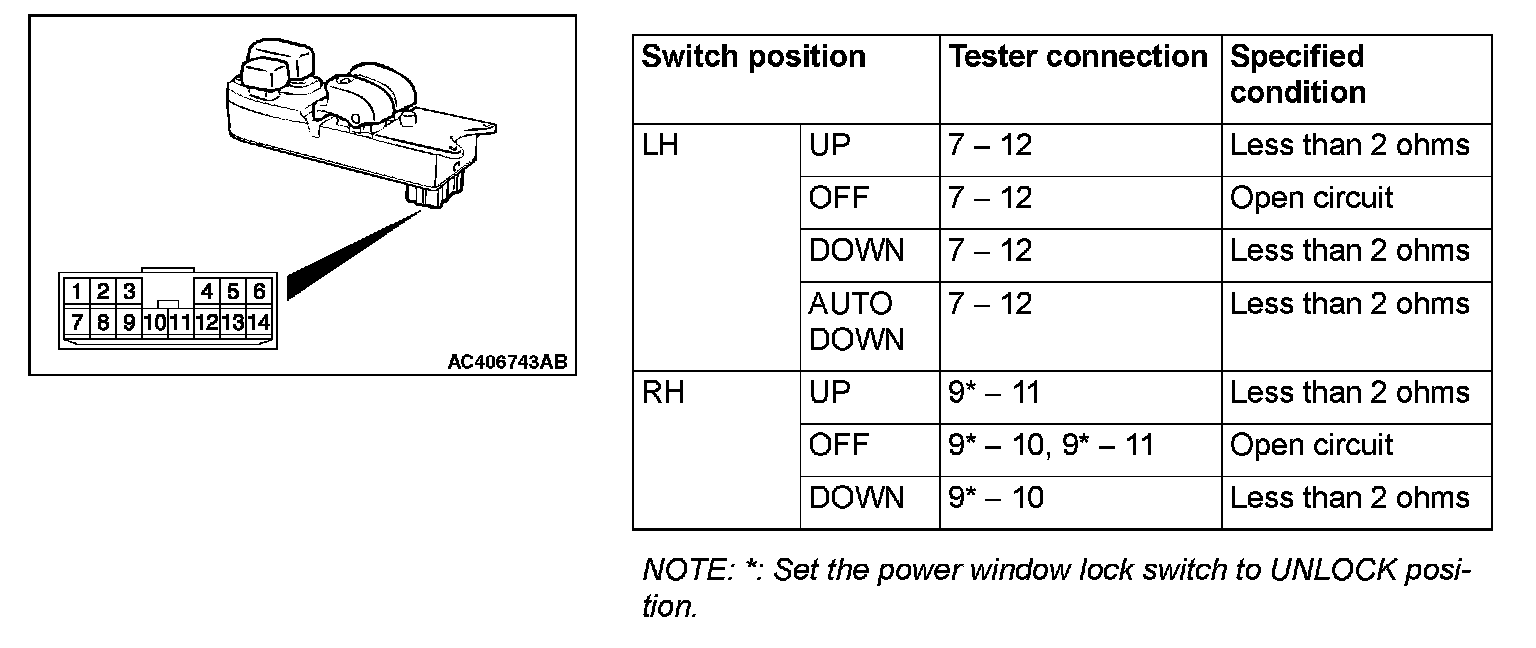

MAIN SWITCH

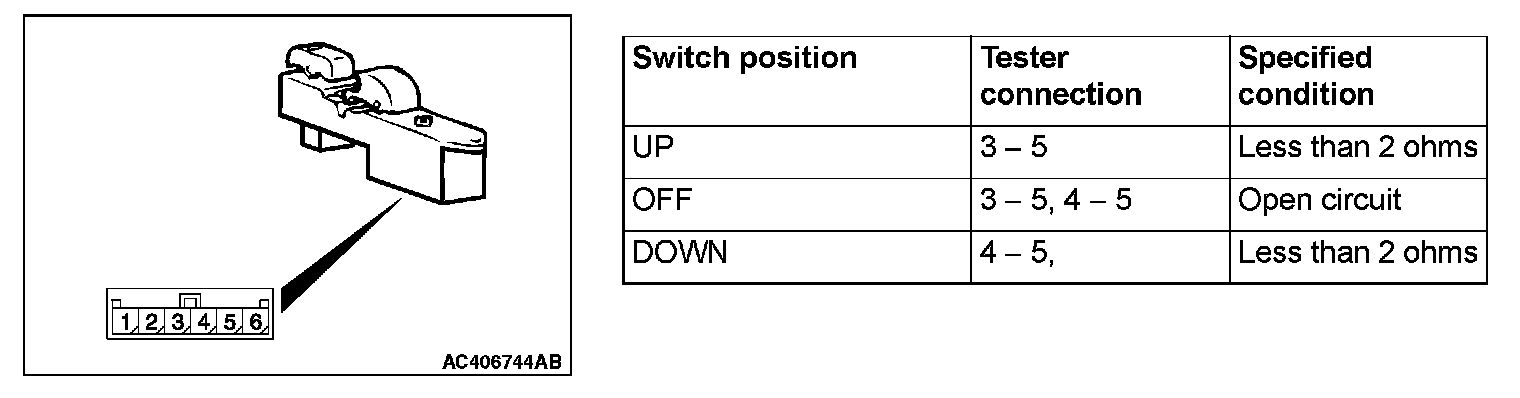

SUB SWITCH
