Adjusting Snap Rings and Spacers

ADJUSTING SNAP RINGS AND SPACERS

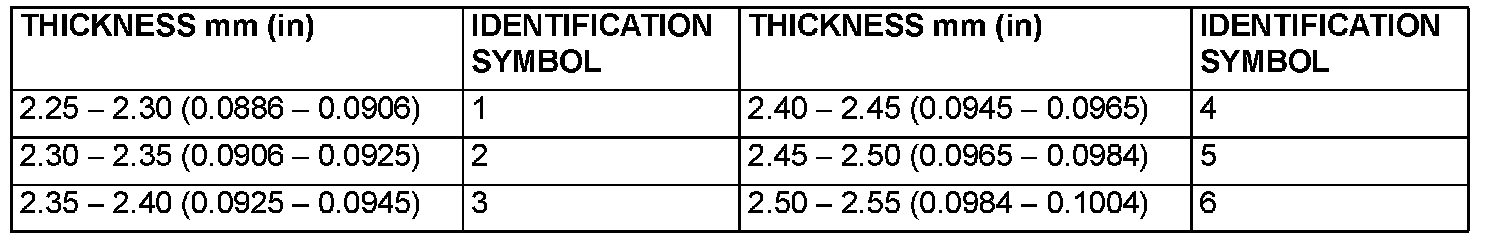

Adjustment shims (for differential side LH tapered roller bearing preload adjustment)

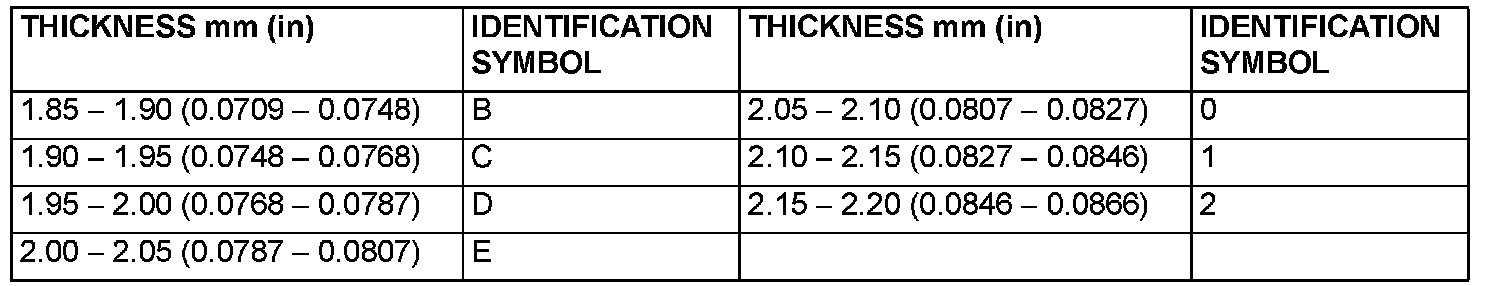

Adjustment shims (for output shaft No.2 bearing preload adjustment)

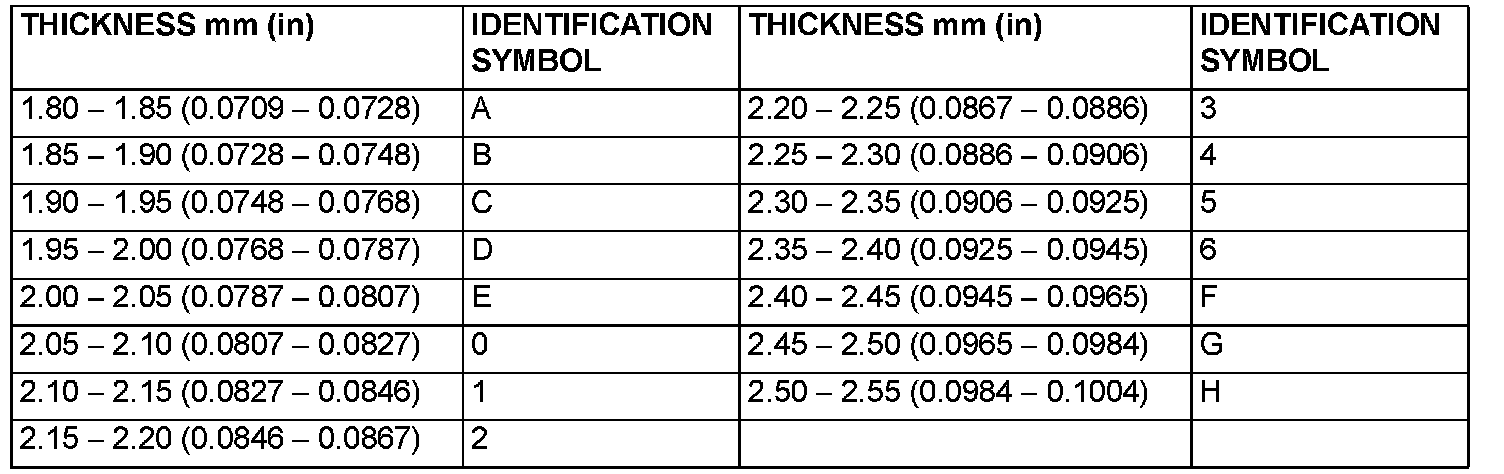

Shaft snap rings (for input shaft radial ball bearing preload adjustment)

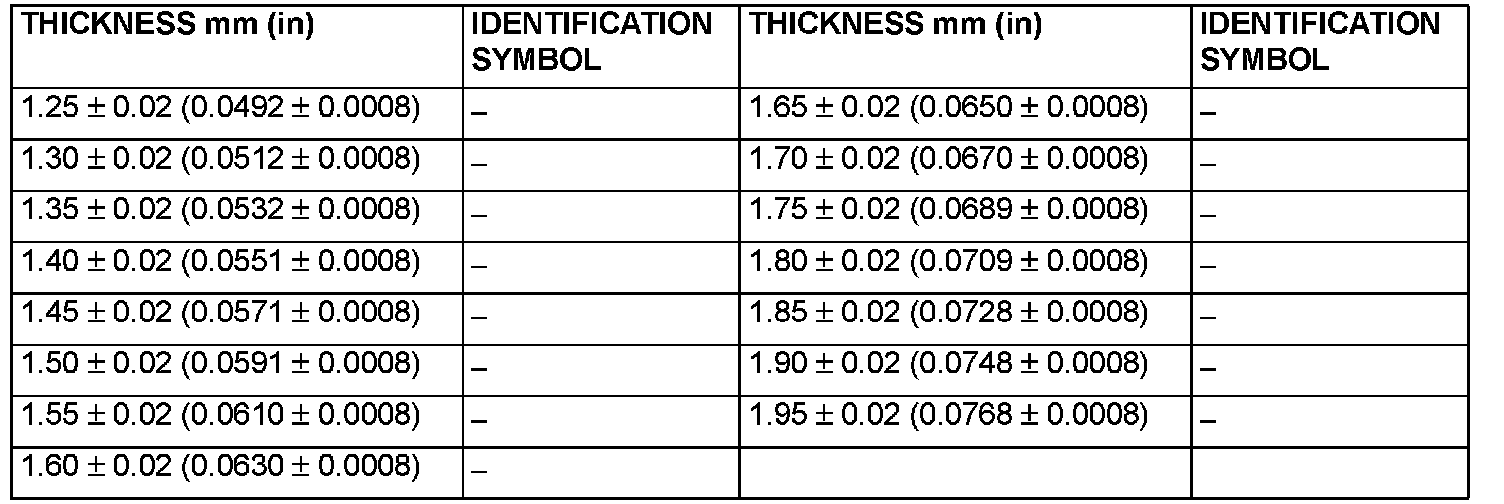

Washers (or adjustment of distance between differential side gear thrust pinion and differential side gear thrust pinion washer)

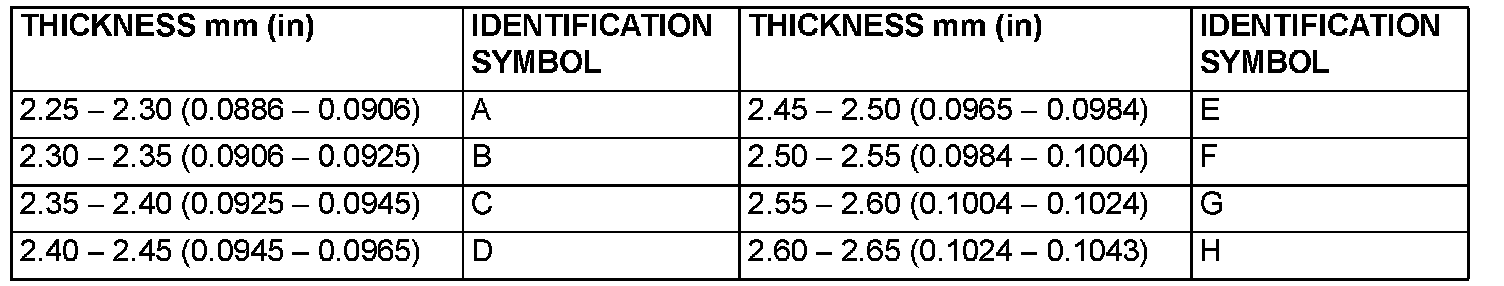

Shaft snap rings (for output shaft No.1 2nd gear bushing end play adjustment)

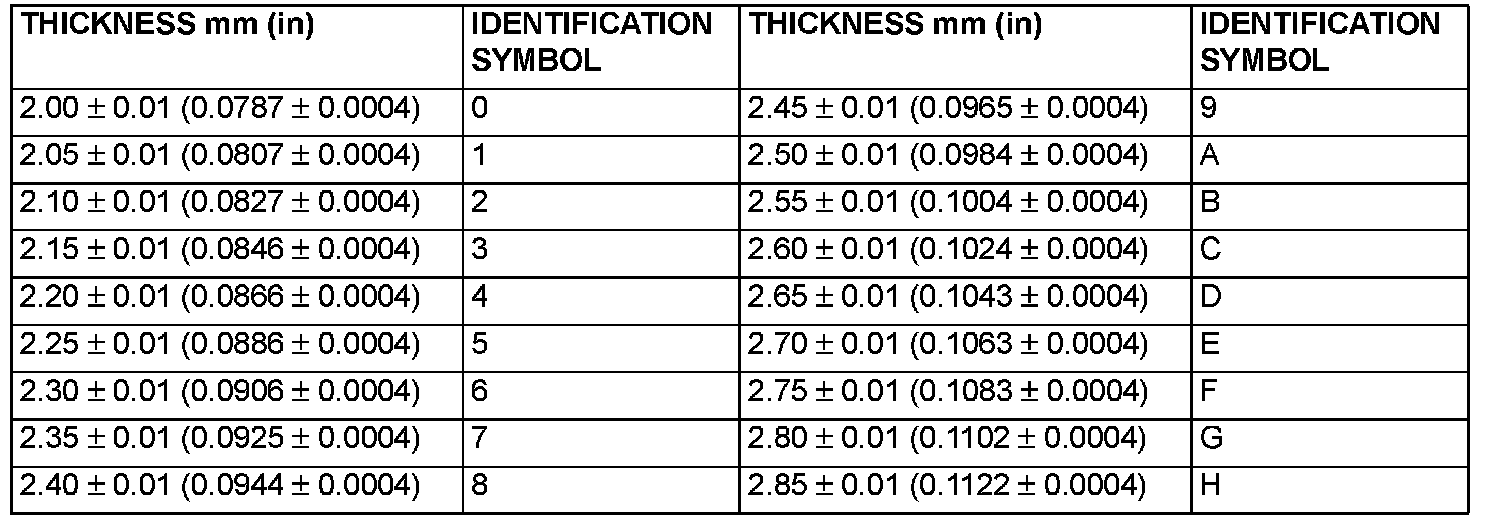

Shaft snap rings (for output shaft No.1 3rd-4th synchronizer hub bushing end play adjustment)

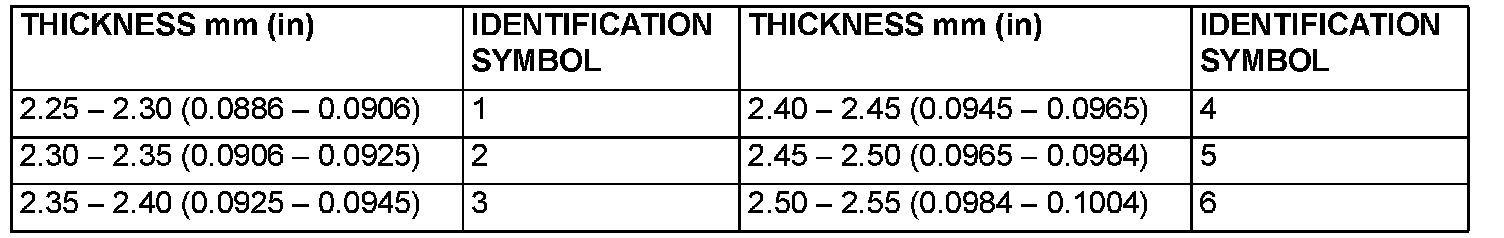

Shaft snap rings (for output shaft No.2 reverse synchronizer hub bushing end play adjustment)

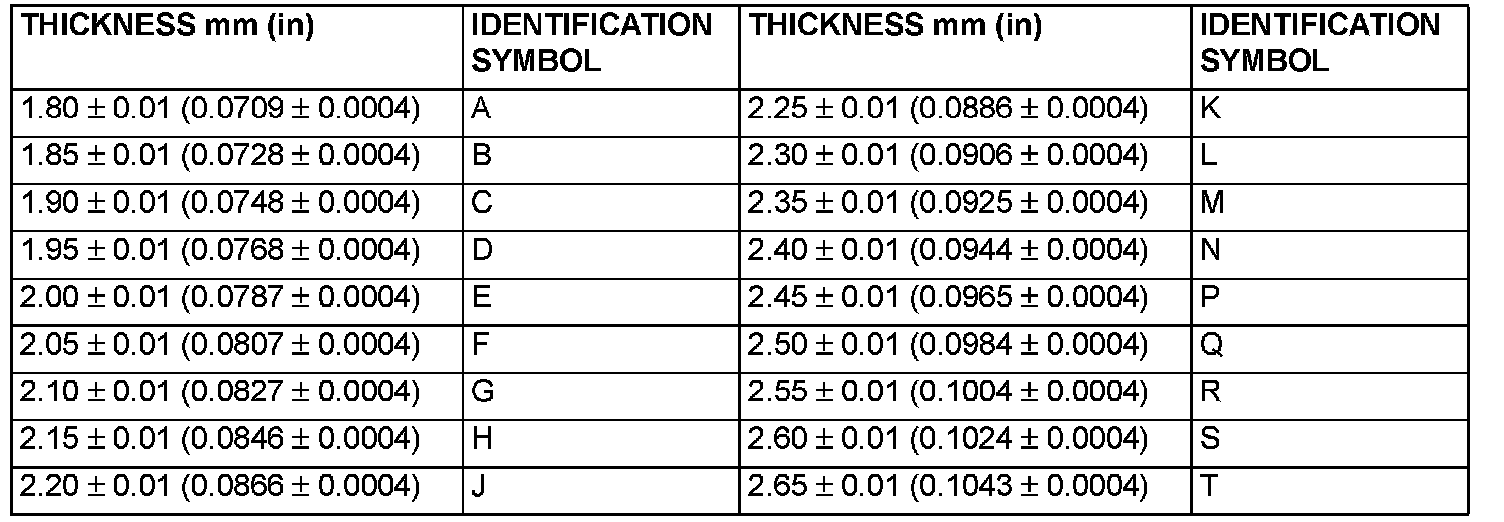

Shaft snap rings (for output shaft No.1 radial ball bearing adjustment)

Shaft snap rings (for output shaft No.2 tapered roller bearing adjustment)

Shaft snap rings (for output shaft No.2 5th-6th synchronizer hub bushing end play adjustment)
