Overhaul

CLUTCH

DISASSEMBLY AND ASSEMBLY





DISASSEMBLY SERVICE POINT

[[A]] RELEASE FORK REMOVAL

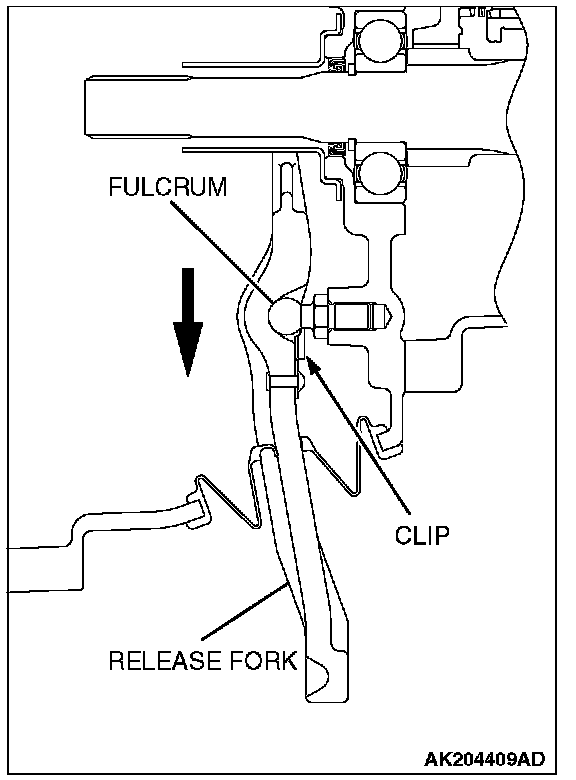

Move the release fork in the direction shown to remove the clip from the fulcrum.

ASSEMBLY SERVICE POINTS

]]A[[ RELEASE FORK INSTALLATION

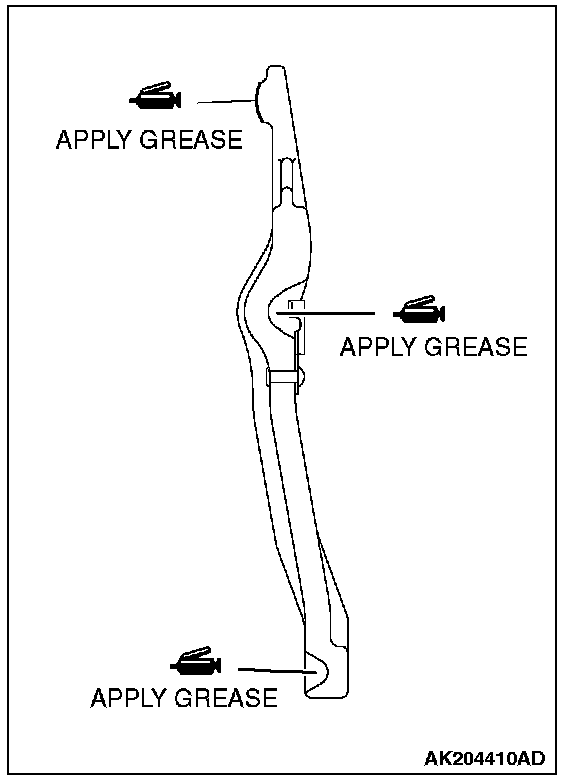

1. Apply Mitsubishi Part number 0101011 or equivalent to the illustrated positions of the release fork.
2. Install the release fork to the fulcrum.

]]B[[ CLUTCH DISC AND CLUTCH COVER INSTALLATION





1. Apply Mitsubishi Part number 0101011 or equivalent to the clutch disc splines and rub it in the splines with a brush.

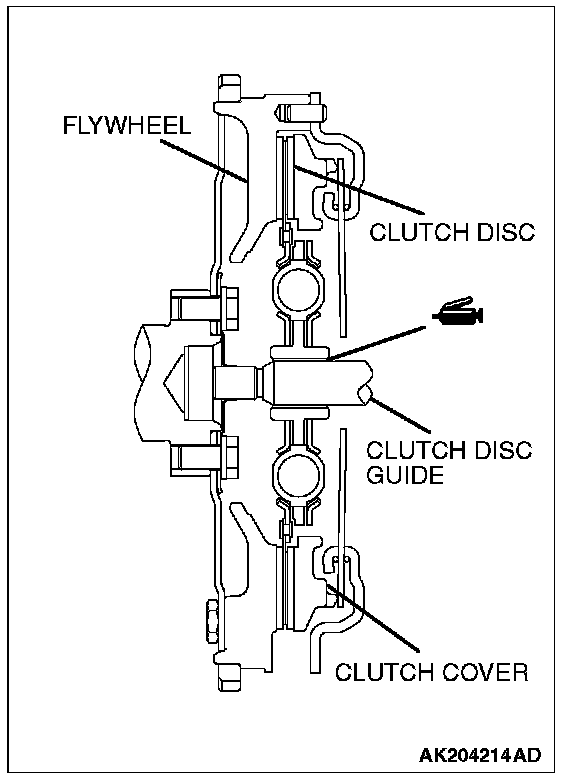

2. Using the clutch disc guide to position the clutch disc on the flywheel.
3. Install the clutch cover onto the flywheel.
