Disassembly and Assembly

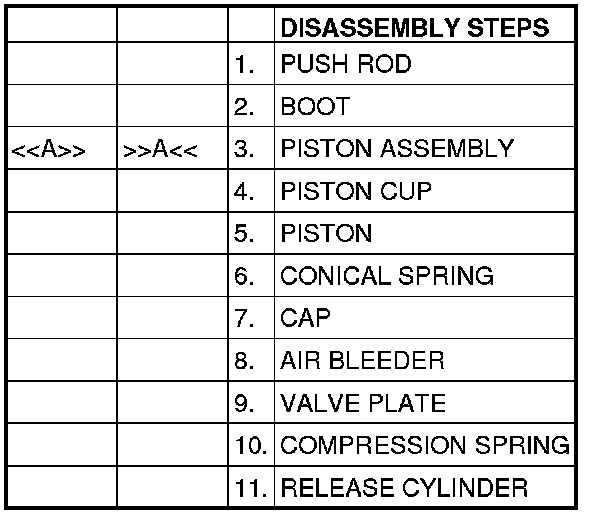

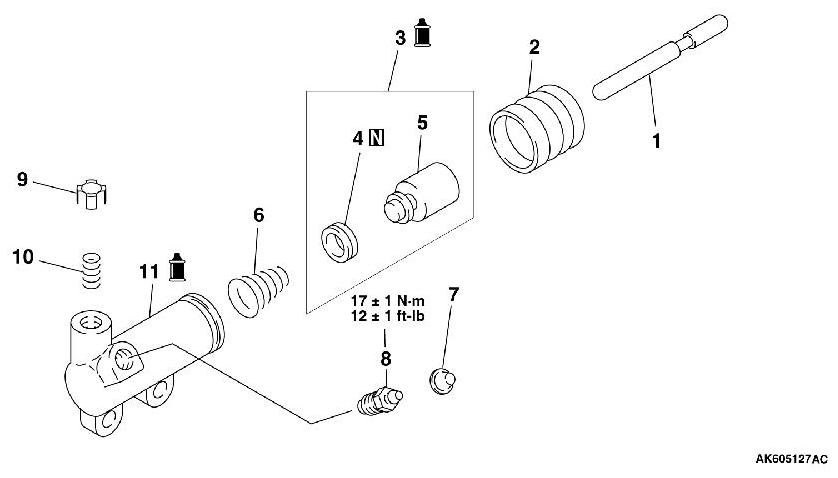

DISASSEMBLY AND ASSEMBLY









DISASSEMBLY SERVICE POINT

[[A]] PISTON ASSEMBLY REMOVAL





1. Cover with a shop towel to prevent the piston from popping out.
2.
CAUTION:
Apply compressed air slowly to prevent brake fluid from splashing.

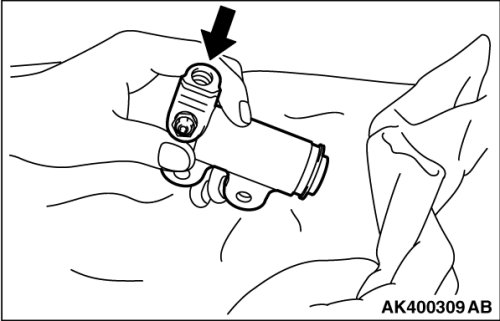

Apply the compressed air into the tube mounting hole to remove the piston assembly.

ASSEMBLY SERVICE POINT

]]A[[ PISTON ASSEMBLY INSTALLATION

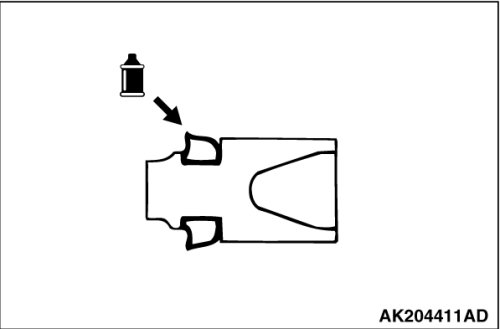

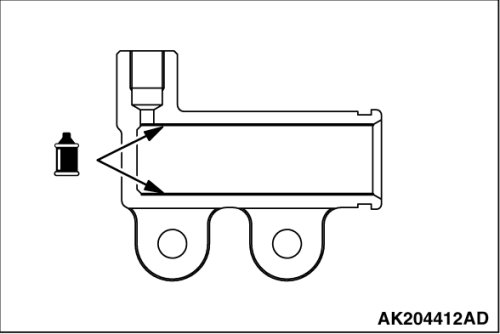

1. Apply brake fluid SAE J1703 (DOT3) to the piston cup and inner surface of the release cylinder.
2. Insert the piston assembly into the release cylinder.
