Shift Cable: Service and Repair

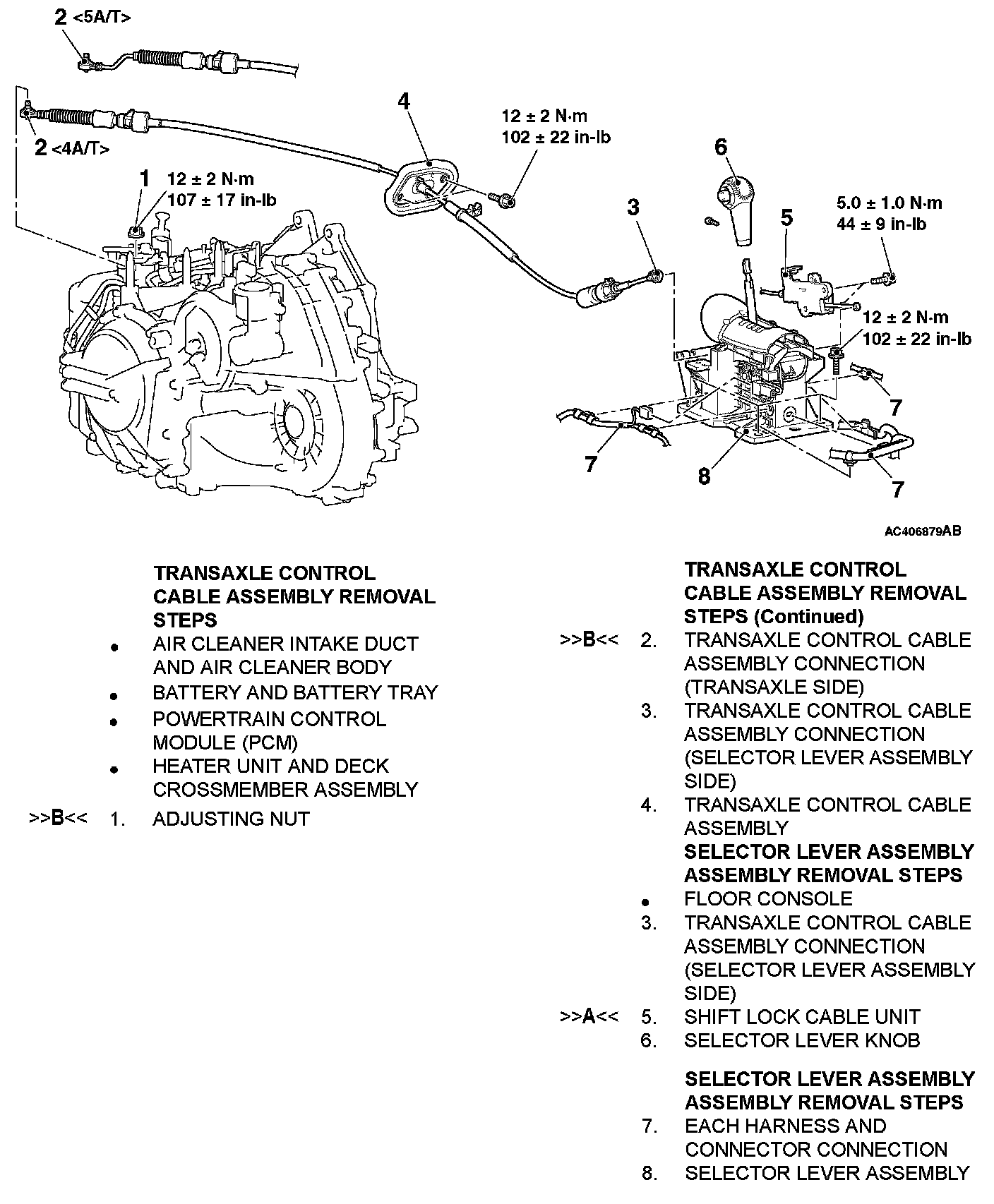

TRANSAXLE CONTROL

REMOVAL AND INSTALLATION

WARNING
^ When removing and installing the transaxle control cable and shift lock cable unit, be careful not to hit the SRS-ECU.
^ When removing and installing the front passenger seat, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle.








INSTALLATION SERVICE POINTS

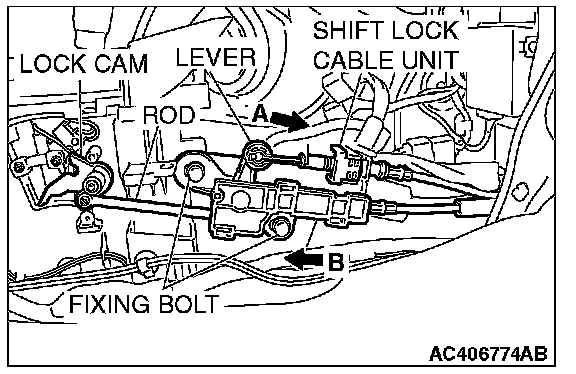

]]A[[ SHIFT LOCK CABLE UNIT INSTALLATION

1. Place the selector lever in "P" position.
2. Turn the ignition key to "LOCK" (OFF) position.
3. Install the rod of the shift lock cable unit to the lock cam, push the lever in direction A, push the shift lock cable unit in direction B and tighten the fixing bolt at the standard torque.
Tightening torque: 5.0 ± 1.0 Nm (44 ± 9 in-lb)
4. Check the selector lever operation.

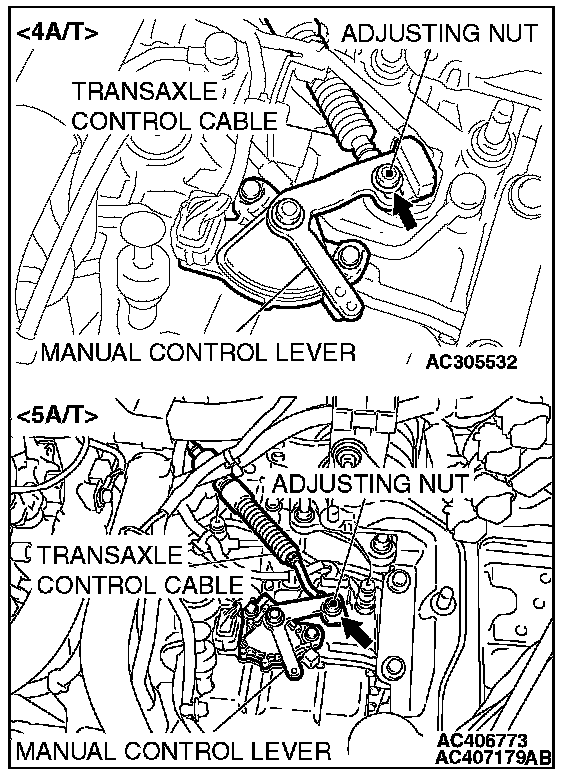

]]B[[ TRANSAXLE CONTROL CABLE ASSEMBLY (TRANSAXLE SIDE)/ADJUSTING NUT INSTALLATION
1. Place the selector lever and manual control lever in the "N" position.





2. Place the cable stud into the manual control lever slot and install the nut loosely. Gently push the transaxle control cable into the manual control lever slot until the cable is taut. Tighten the nut to the specified torque.
Tightening torque: 12 ± 2 Nm (107 ± 17 in-lb)

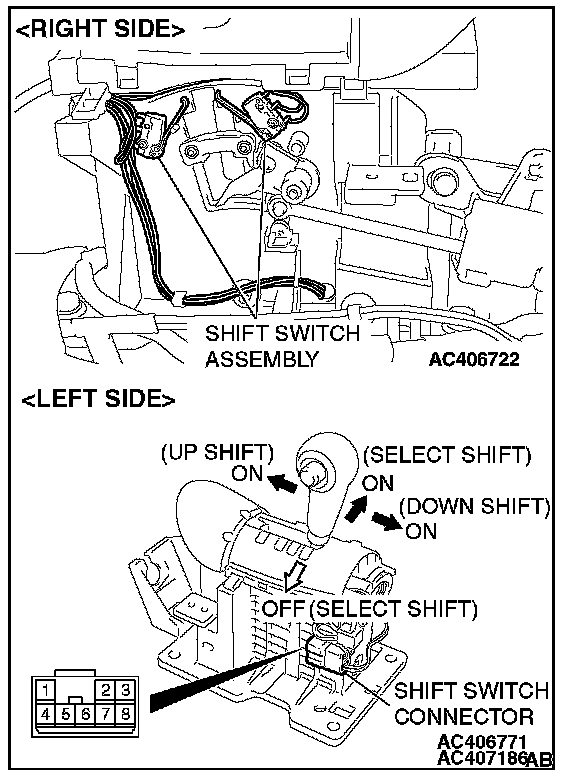

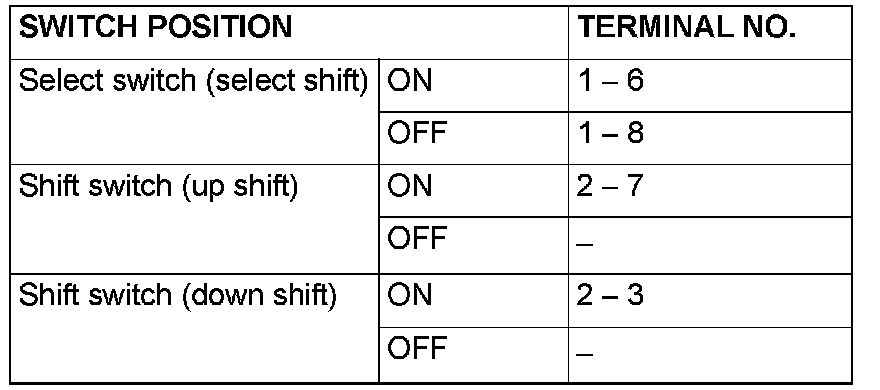

INSPECTION
