Front Suspension

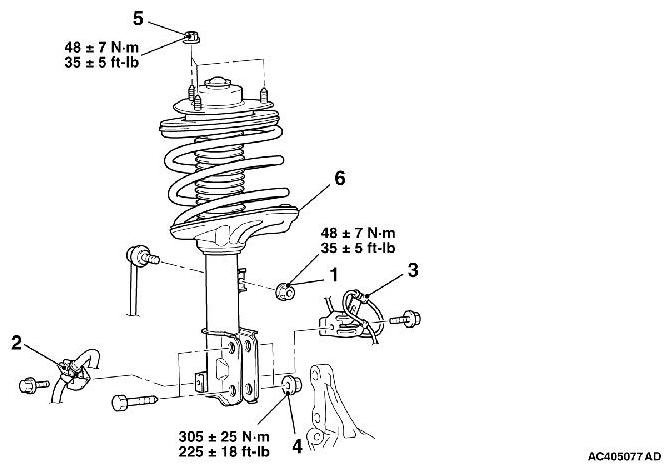

REMOVAL AND INSTALLATION













REMOVAL SERVICE POINT

[[A]] STABILIZER LINK AND STRUT CONNECTION NUT REMOVAL

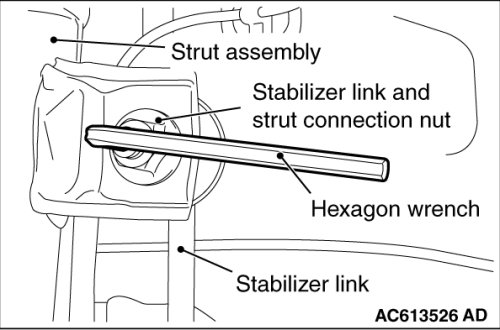

Use a hexagon wrench to remove the stabilizer link and strut connection nut as shown in the figure.

INSTALLATION SERVICE POINT

]]A[[ STABILIZER LINK AND STRUT CONNECTION NUT INSTALLATION





Use a hexagon wrench to install the stabilizer link and strut connection nut as shown in the figure.
