Inspection

INSPECTION

- Check the bushings for wear and deterioration.
- Check the toe control arm for bending or breakage.
- Check all bolts for condition and straightness.

TOE CONTROL ARM BALL JOINT TURNING TORQUE CHECK

Required Special Tool:

- MB990326: Preload Socket

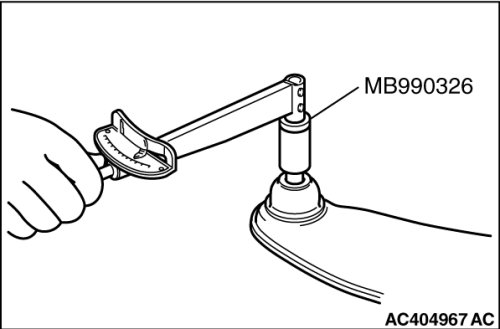

1. After shaking the ball joint stud several times, in order to make the ball joint turn smoothly, install the nut to the stud and use special tool MB990326 to measure the turning torque of the ball joint.
Standard value: 1.0 - 2.6Nm (8.9 - 23 in-lb)
2. If the measured value exceeds the standard value, replace the toe control arm assembly.
3. If the measured value is lower than the standard value, check that the ball joint turns smoothly without excessive play. If so, it is possible to re-use that ball joint.

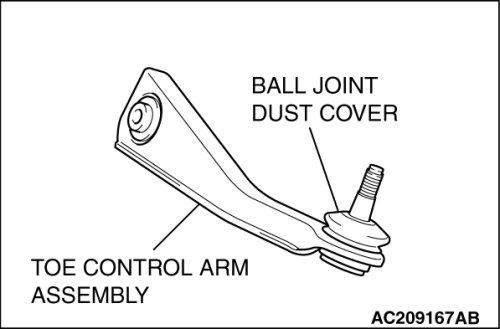

TOE CONTROL ARM BALL JOINT DUST COVER CHECK





1. Check the toe control arm ball joint dust cover for cracks or damage by pushing it with your finger.
2. If the dust cover is cracked or damaged, replace the toe control arm assembly.
NOTE:
Cracks or damage of the dust cover may cause damage to the ball joint. When it is damaged during service work, replace the dust cover.
