Toe Control Arm Ball Joint Dust Cover Replacement

TOE CONTROL ARM BALL JOINT DUST COVER REPLACEMENT

Required Special Tool:
^ MB990800: Ball Joint Remover and Installer





Only when the dust cover is damaged accidentally during service work, replace the dust cover as follows:
1. Remove the dust cover.
2. Fill the new dust cover with multipurpose grease and lubricate the lip [Amount of grease in the dust cover: approximately 7 g (0.247 oz)].

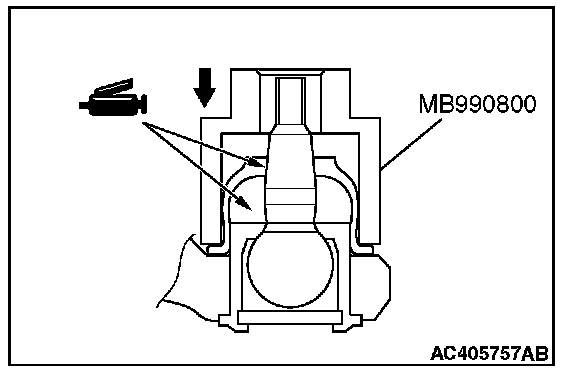

3. Using special tool MB990800, punch the dust cover until it contacts the snap ring.
4. Press the dust cover with your finger to check that there are no cracks or damage in the dust cover.
