Toe Control Arm

TOE CONTROL ARM

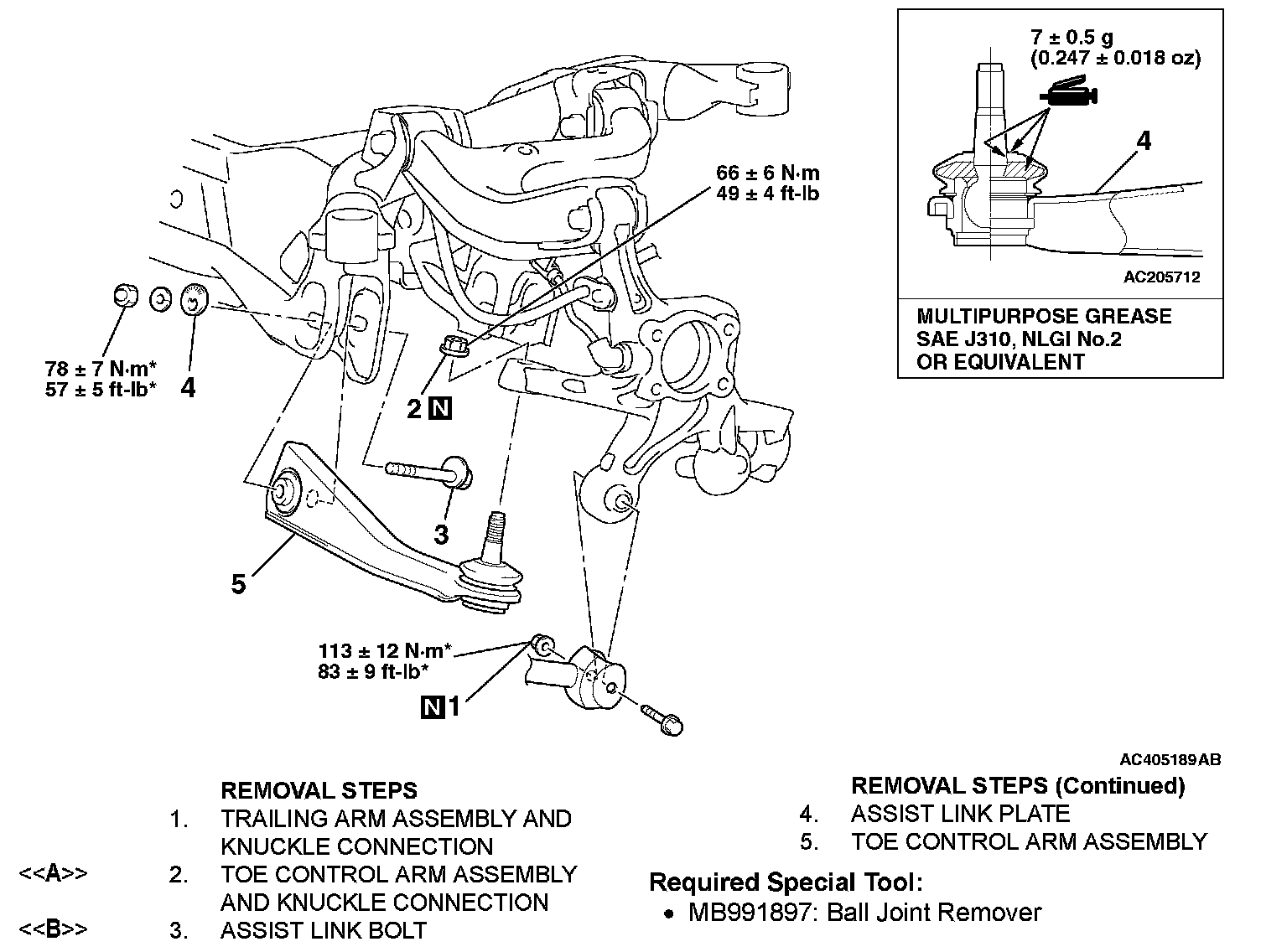

REMOVAL AND INSTALLATION

CAUTION
*: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in an unladen condition.








REMOVAL SERVICE POINTS

[[A]] TOE CONTROL ARM ASSEMBLY AND KNUCKLE DISCONNECTION

CAUTION
^ Do not remove the nut from ball joint. Loosen it and use special tool MB991897 to avoid possible damage to ball joint threads.

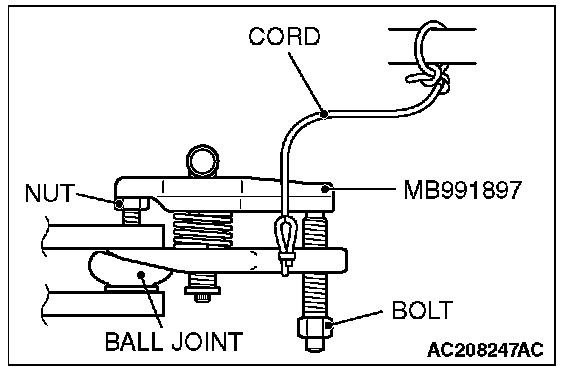

^ Hang special tool MB991897 with a cord to prevent it from falling.





1. Install special tool MB991897 as shown in the figure.

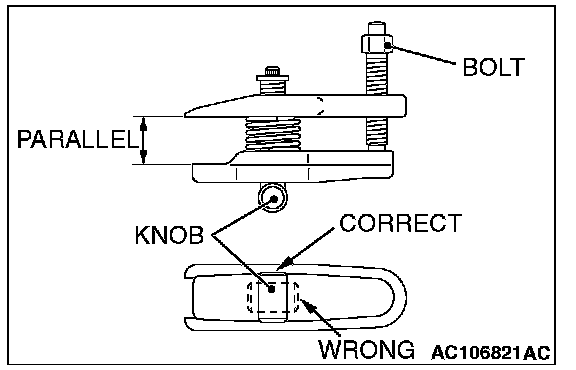

2. Turn the bolt and knob as necessary to make the jaws of the special tool MB991897 parallel, tighten the bolt by hand and confirm that the jaws are still parallel.

NOTE: When adjusting the jaws in parallel, make sure the knob is in the position shown in the figure.

3. Tighten the bolt with a wrench to disconnect the toe control arm assembly and the knuckle.

[[B]] ASSIST LINK BOLT REMOVAL

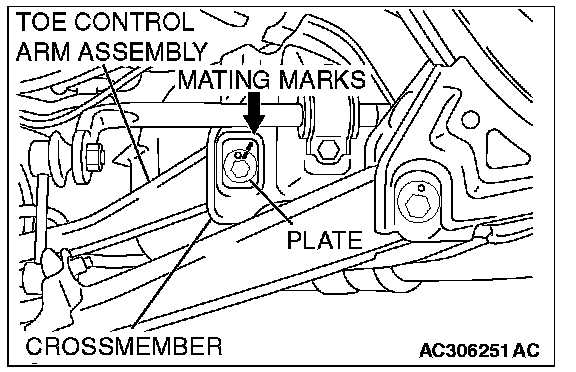

Place mating marks on the crossmember and the plate before removing the assist link bolt.

INSPECTION
^ Check the bushings for wear and deterioration.
^ Check the toe control arm for bending or breakage.
^ Check all bolts for condition and straightness.
