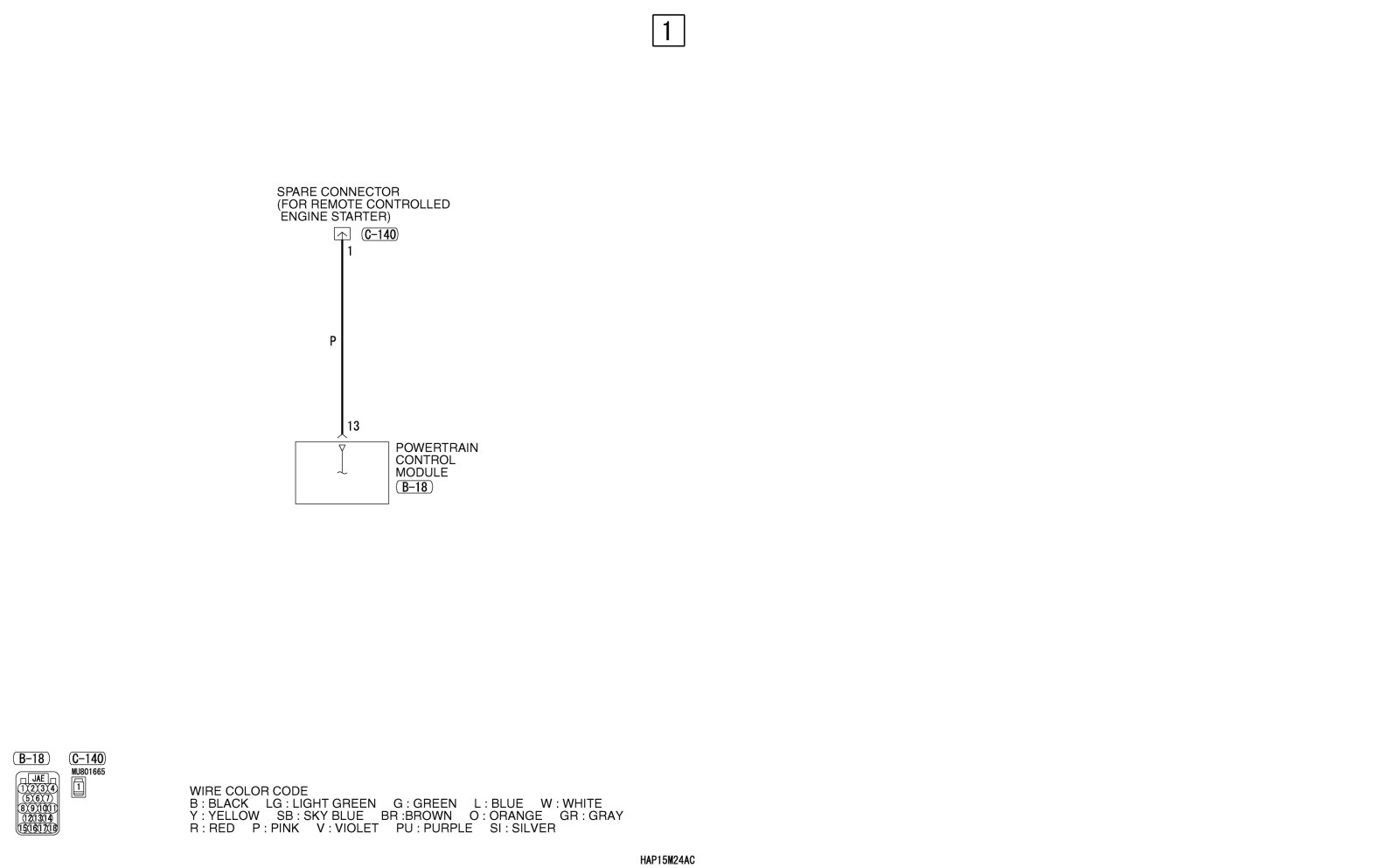

Spare Connector (For Remote Controlled Engine Starter)
Spare Connector (For Remote Controlled Engine Starter)
SPARE CONNECTOR
(FOR REMOTE CONTROLLED ENGINE STARTER) [A/T]
