Removal and Replacement

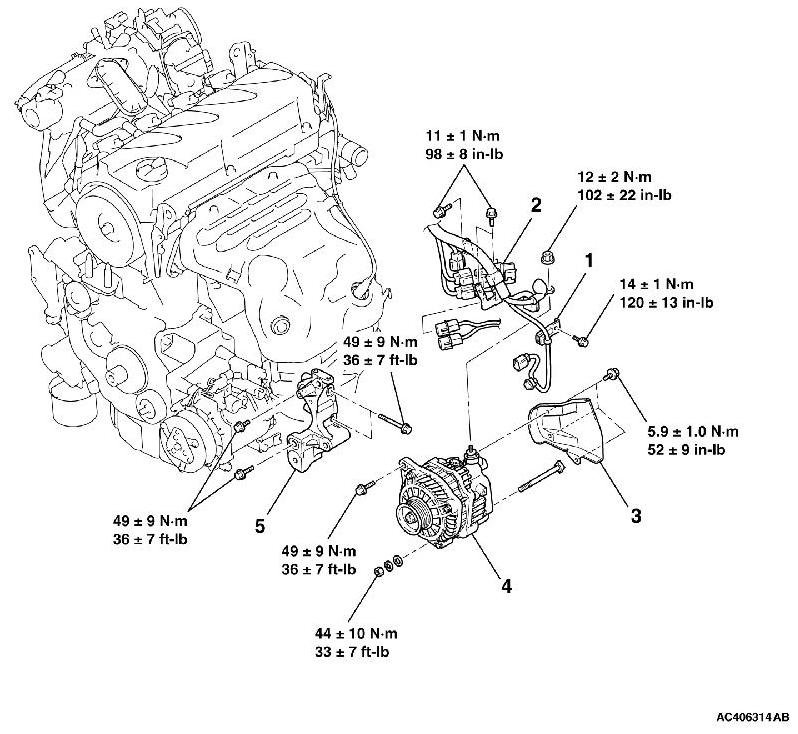

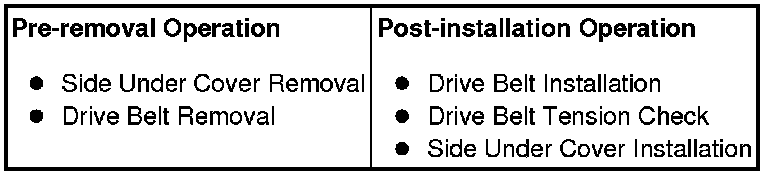

REMOVAL AND INSTALLATION [2.4L ENGINE]

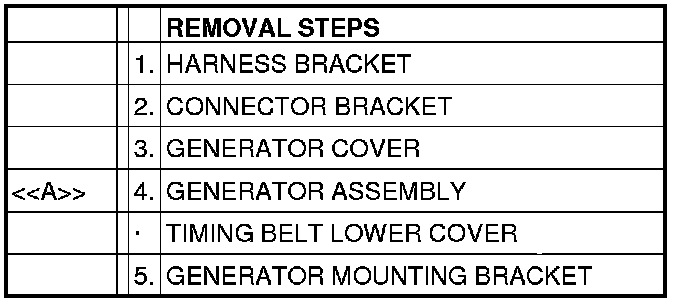

REMOVAL SERVICE POINT

[[A]] GENERATOR ASSEMBLY REMOVAL

Remove the generator assembly from above the vehicle.
