Home
>>
Mitsubishi
>>
2011
>>
Eclipse Spyder L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
F4A4B and F5A5A
F4A4B and F5A5A

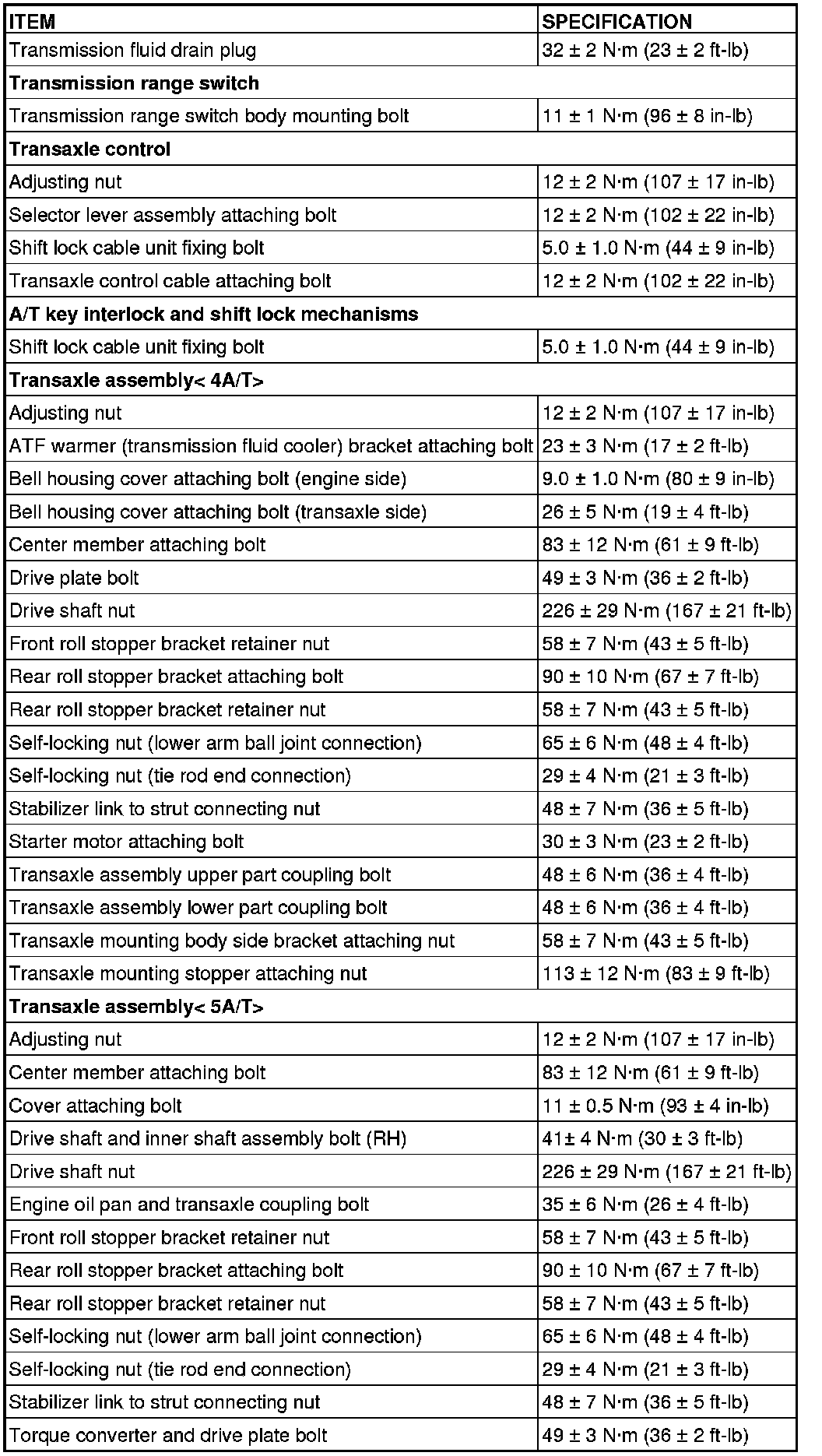

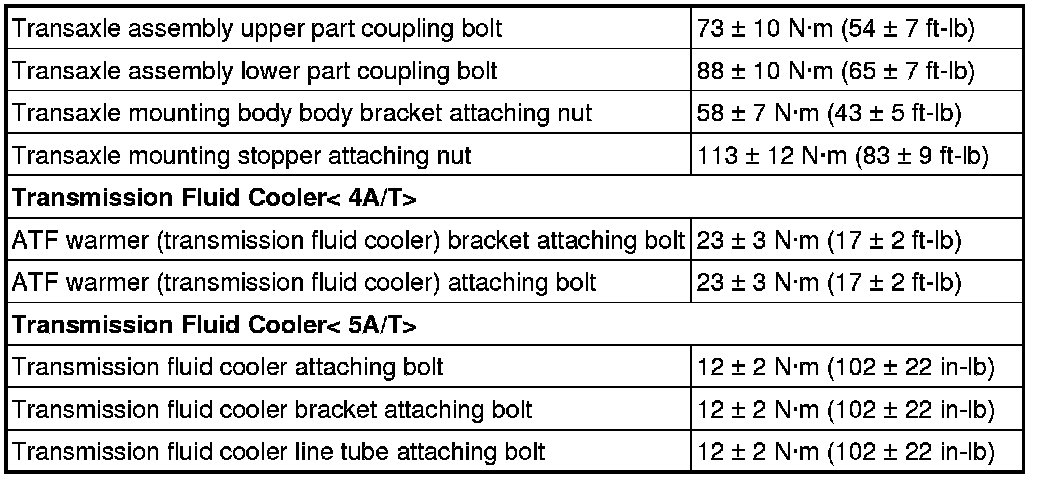

FASTENER TIGHTENING SPECIFICATIONS
