Steering Mounted Controls Assembly: Service and Repair

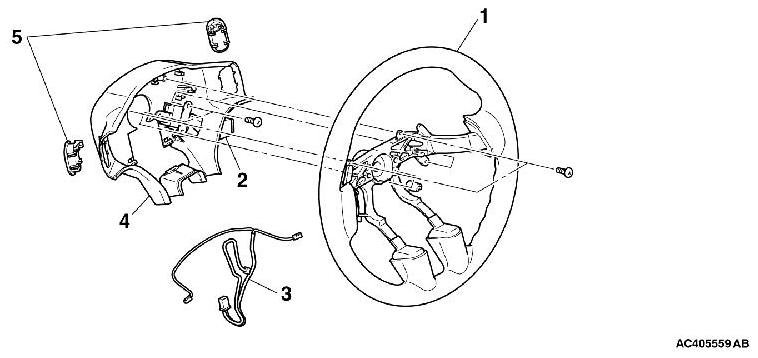

REMOVAL AND INSTALLATION

WARNING:

- Before removing the air bag module, refer to Service Precautions Technician Safety Information and Air Bag Module and Clock Spring Service and Repair .
- When removing and installing the steering wheel, do not let it bump against the air bag module.

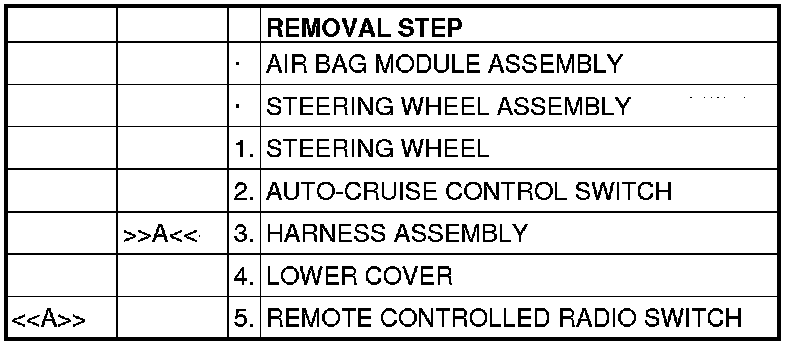

REMOVAL SERVICE POINT

[[A]] REMOTE CONTROLLED RADIO SWITCH REMOVAL





Use a tool to hold the tabs on the remote controlled radio switch, and push out the switch with your finger.

INSTALLATION SERVICE POINT

]]A[[ HARNESS ASSEMBLY INSTALLATION

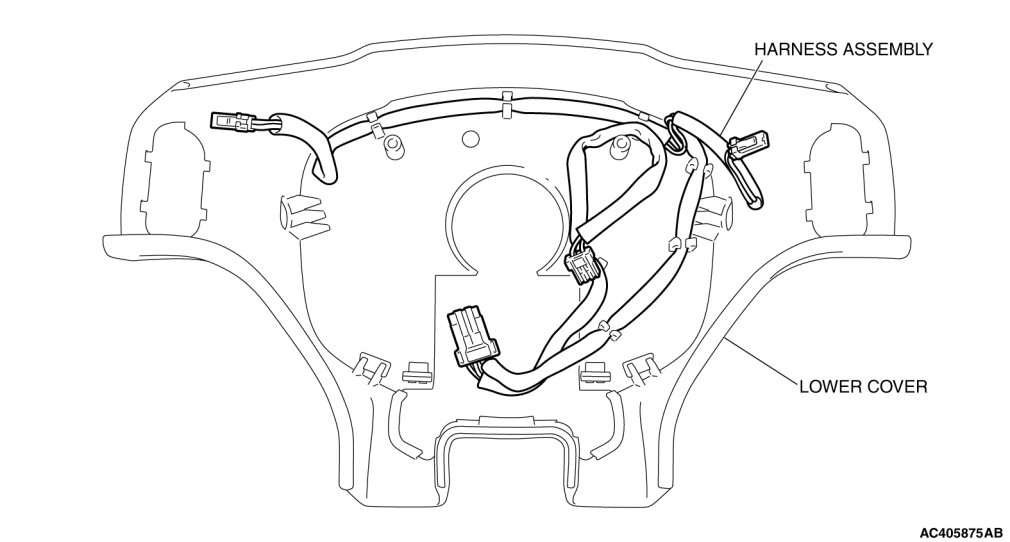

Attach the harness assembly to the position shown in the illustration.
