Front Seat Belt Removal and Installation

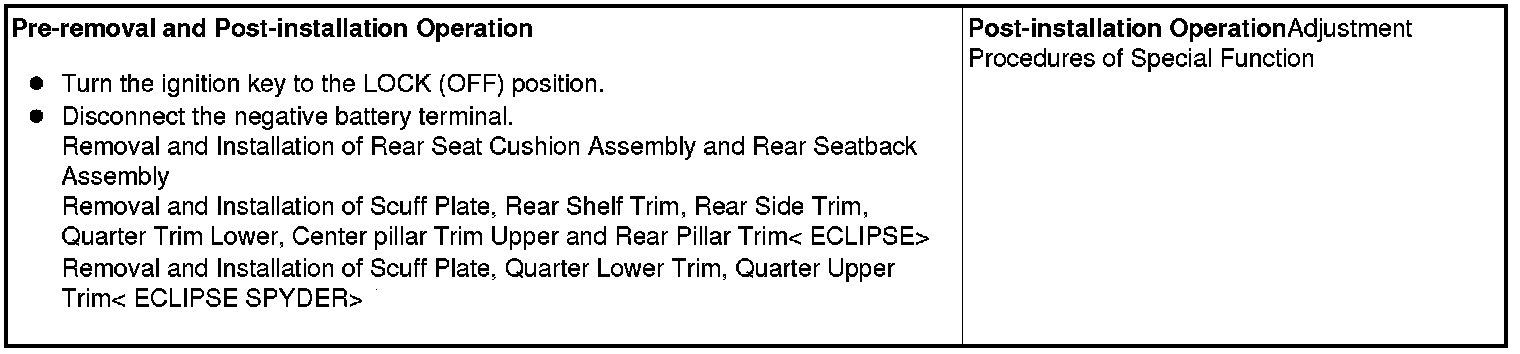

REMOVAL AND INSTALLATION

CAUTION:

- When removing and installing the inner seat belt, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle. Accuracy Check of Occupant Classification Sensor .)
- SRS: Before removing and installing the seat belts with pre-tensioner, refer to Seat Belt with Pre-tensioner Seat Belts with Pre-Tensioner .

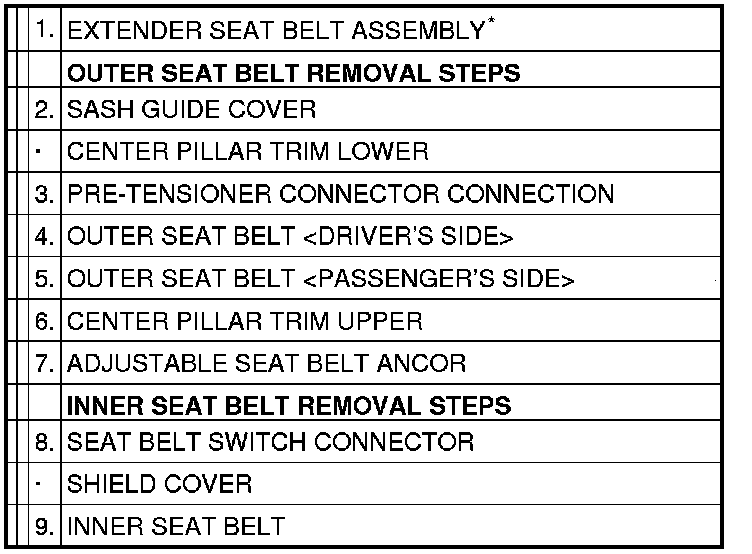

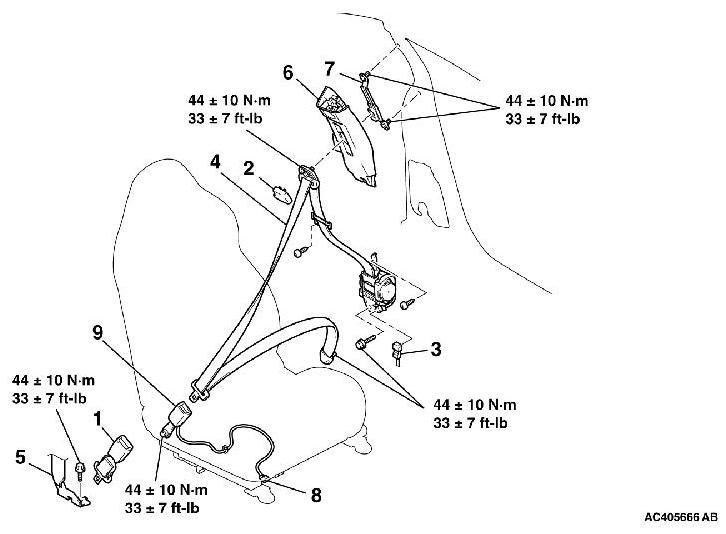

[ECLIPSE]





NOTE:
*If so equipped

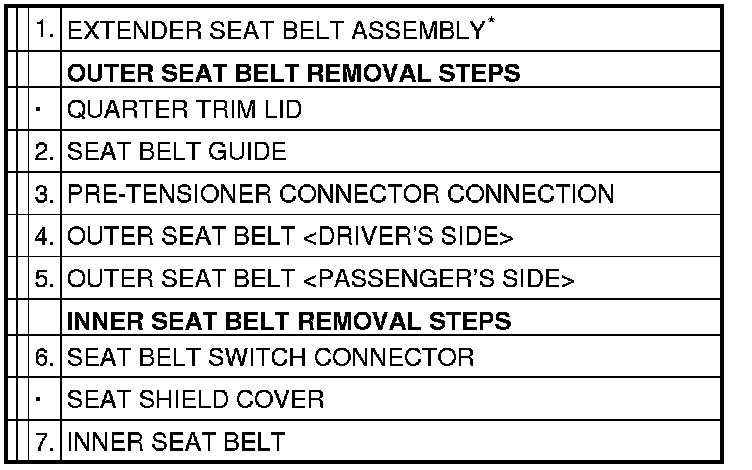

[ECLIPSE SPYDER]





NOTE:
*If so equipped
