Electrical Specifications
SERVICE SPECIFICATIONS

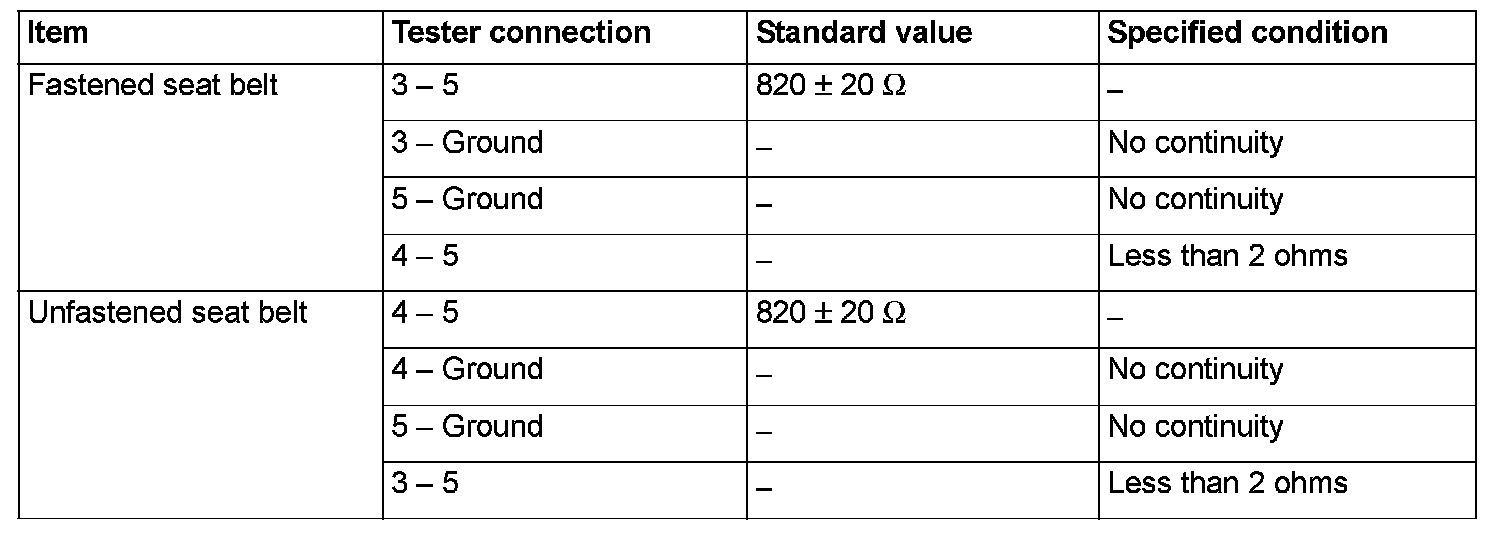

[DRIVER'S SEAT BELT SWITCH]

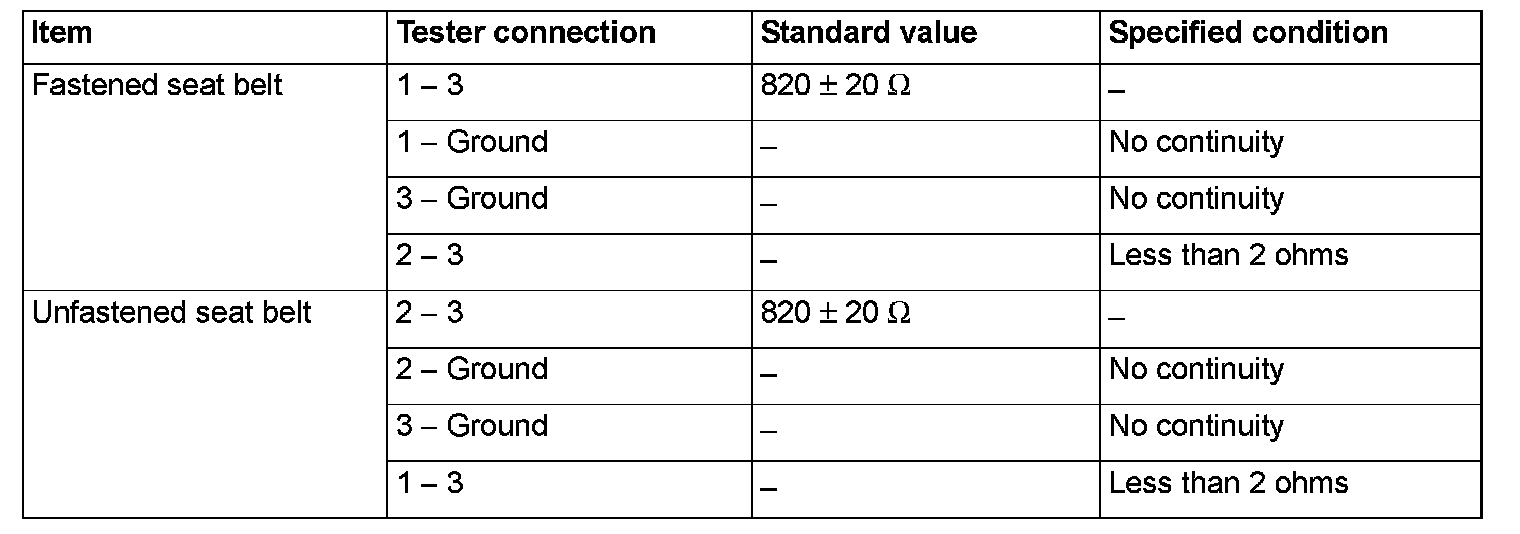

[PASSENGER'S SEAT BELT SWITCH]
