Inspection




INSPECTION

FUEL TANK SHUT-OFF VALVE CHECK

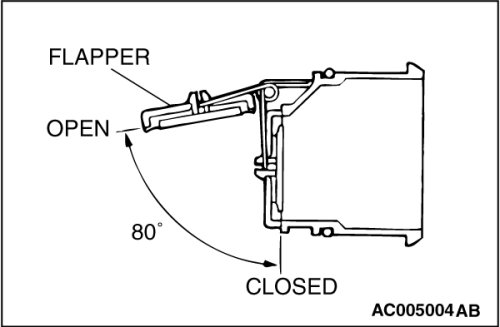

Check that the flapper of the fuel shut-off valve opens and closes as shown in the illustration.
