Fuel System - Revised Fuel Pump/Leveling Valve Torque Specs.
No: TSB-12-13-004DATE: September, 2012
MODEL: See below
SUBJECT:
FUEL PUMP & FUEL LEVELING VALVE TORQUE
[TSB Revision: TSB-12-13-004]
PURPOSE
This TSB updates the the fuel pump module and fuel leveling valve torque specifications in the service manual for affected vehicles.
AFFECTED VEHICLES
2004-2011 Endeavor
2004-2012 Galant
2006-2012 Eclipse
2007-2012 Eclipse Spyder
AFFECTED SERVICE MANUALS
2004-2011 Endeavor: Group 13B - Fuel Supply Fuel Tank - Removal and Installation
2004-2009 Galant: Group 13C Fuel Supply - Fuel Tank - Removal and Installation
2010-2012 Galant: Group 13C Fuel Supply - Fuel Tank - Disassembly and Assembly
2006 Eclipse: Group 13C Fuel Supply - Fuel Tank - Removal and Installation 2007-2009 Eclipse/Eclipse Spyder: Group 13C Fuel Supply - Fuel Tank - Removal and Installation
2010-2012 Eclipse/Eclipse Spyder: Group 13C Fuel Supply - Fuel Tank - Disassembly and Assembly
2004-2011 Endeavor: Group 13B - Fuel Supply Fuel Tank - Removal and Installation
2004-2009 Galant: Group 13C Fuel Supply - Fuel Tank - Removal and Installation
2010-2012 Galant: Group 13C Fuel Supply - Fuel Tank - Disassembly and Assembly
2006 Eclipse: Group 13C Fuel Supply - Fuel Tank - Removal and Installation 2007-2009 Eclipse/Eclipse Spyder: Group 13C Fuel Supply - Fuel Tank - Removal and Installation
2010-2012 Eclipse/Eclipse Spyder: Group 13C Fuel Supply - Fuel Tank - Disassembly and Assembly

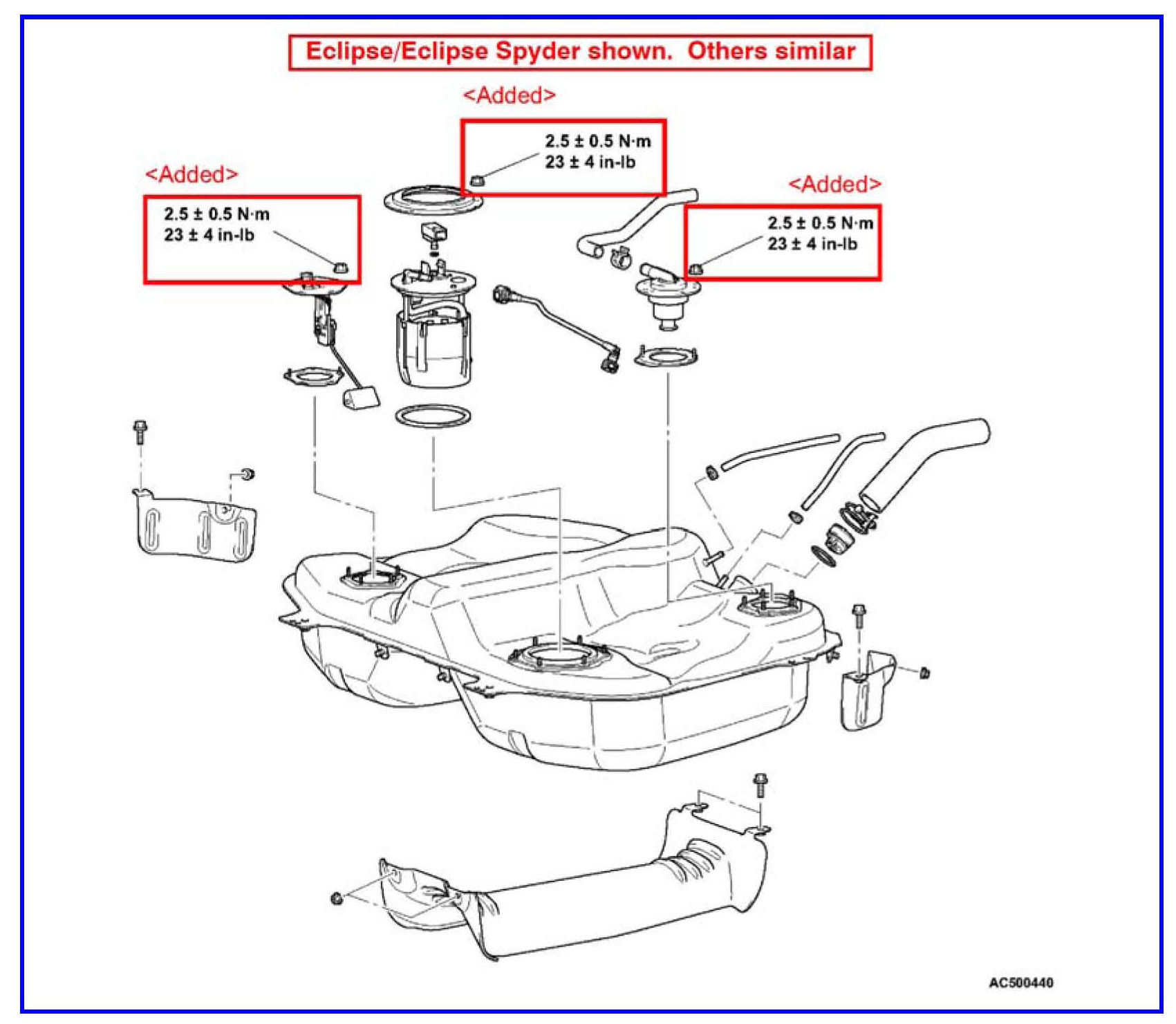

Update the Fuel Supply group (13 B or 13 C as listed above) of the Affected Service Manuals with following added information:
