EGR Valve: Service and Repair

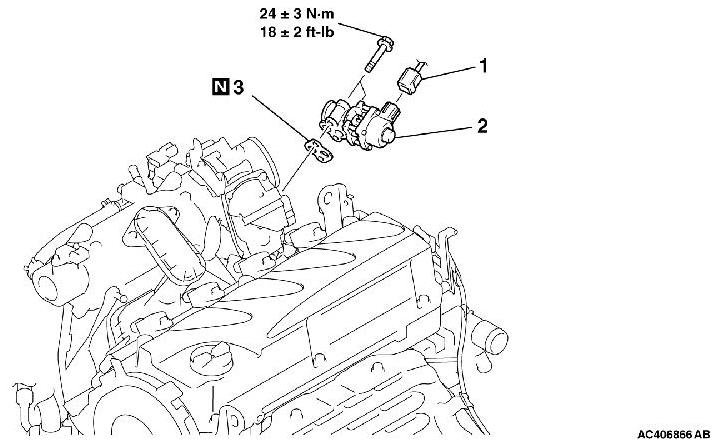

REMOVAL AND INSTALLATION [2.4L ENGINE]













INSTALLATION SERVICE POINT

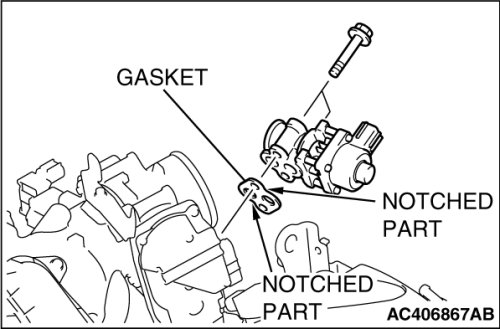

]]A[[ EGR VALVE GASKET INSTALLATION





Install the EGR valve gasket as shown in the illustration.
