Data List Reference Table

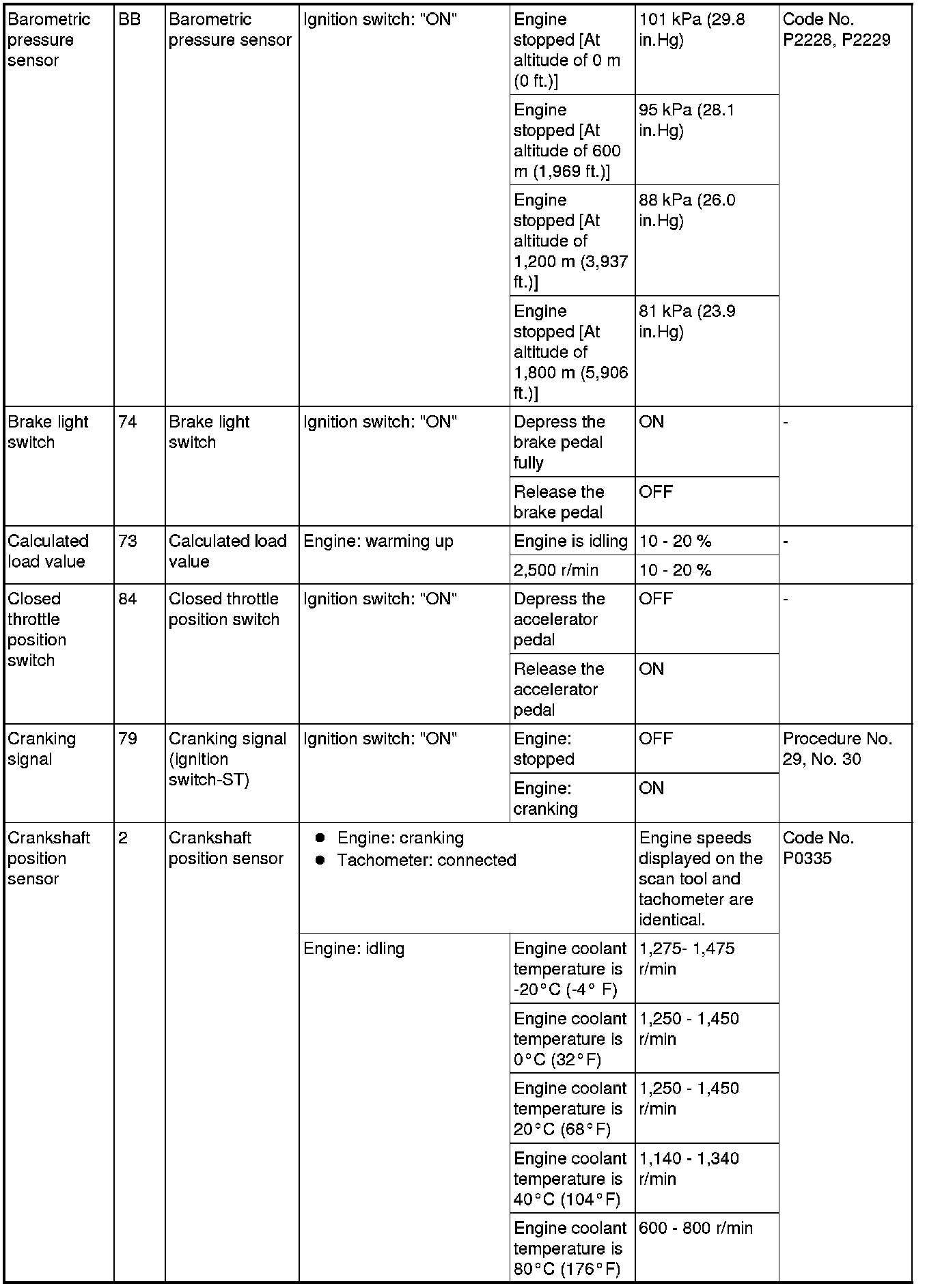

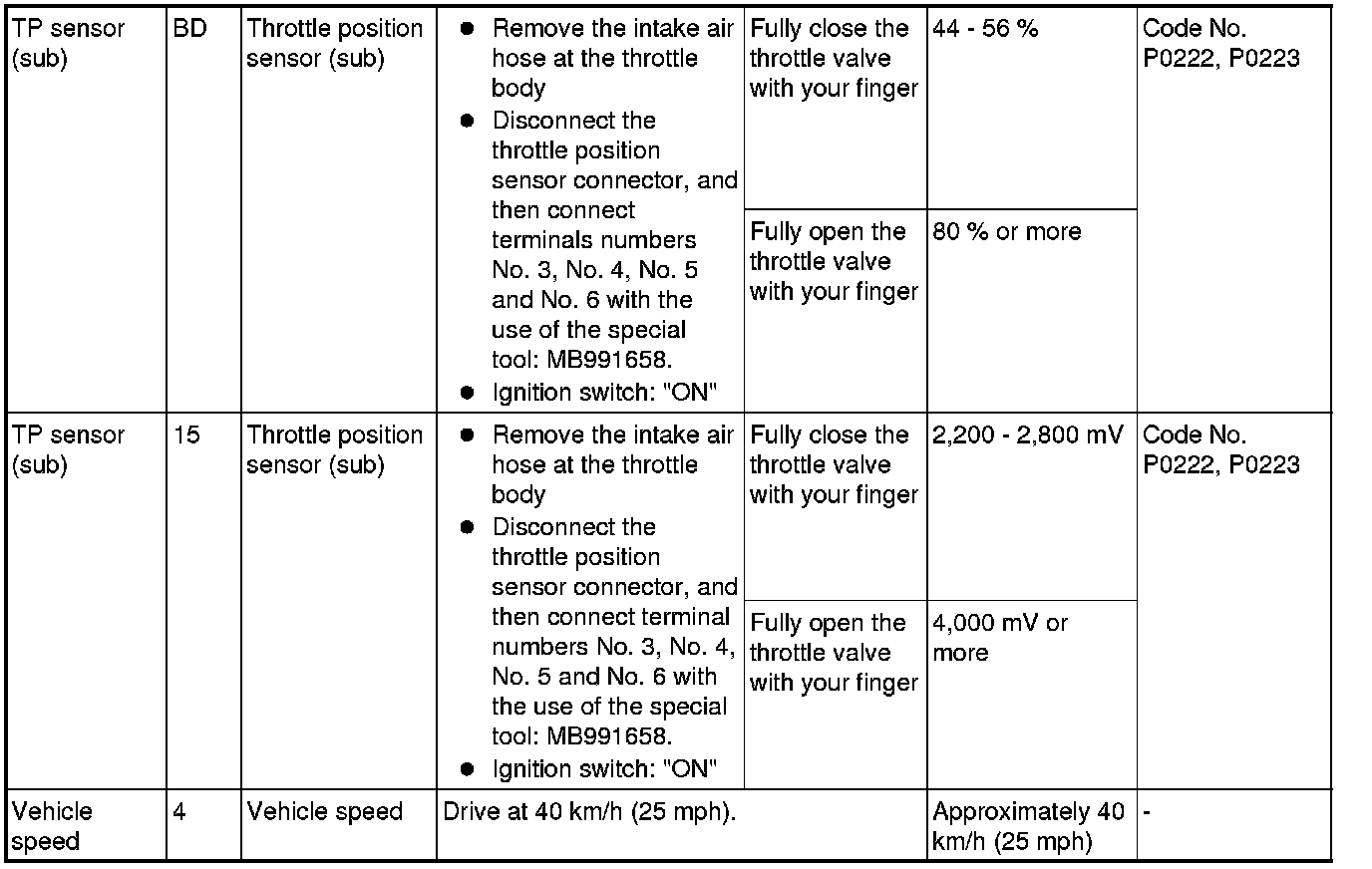

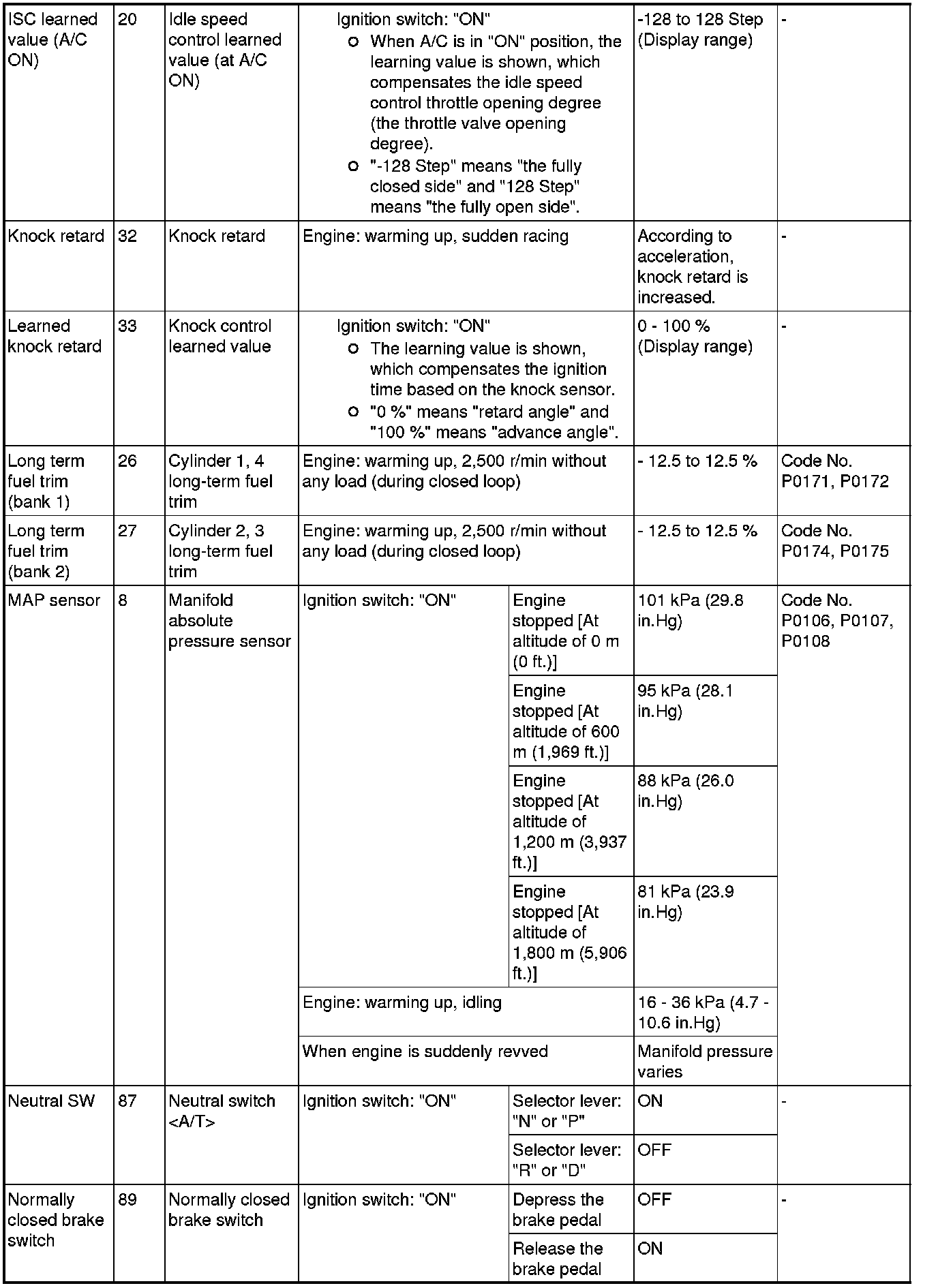

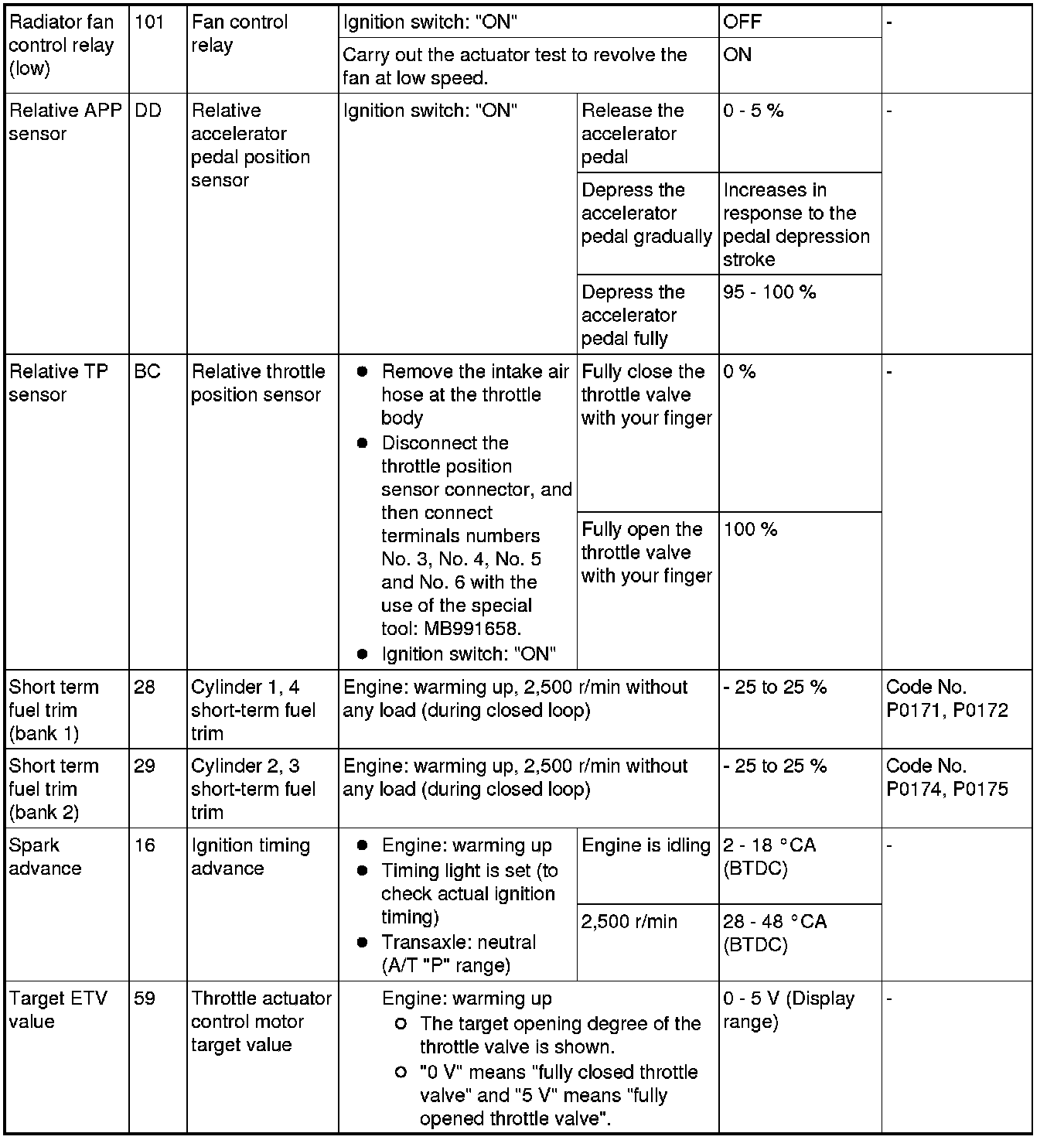

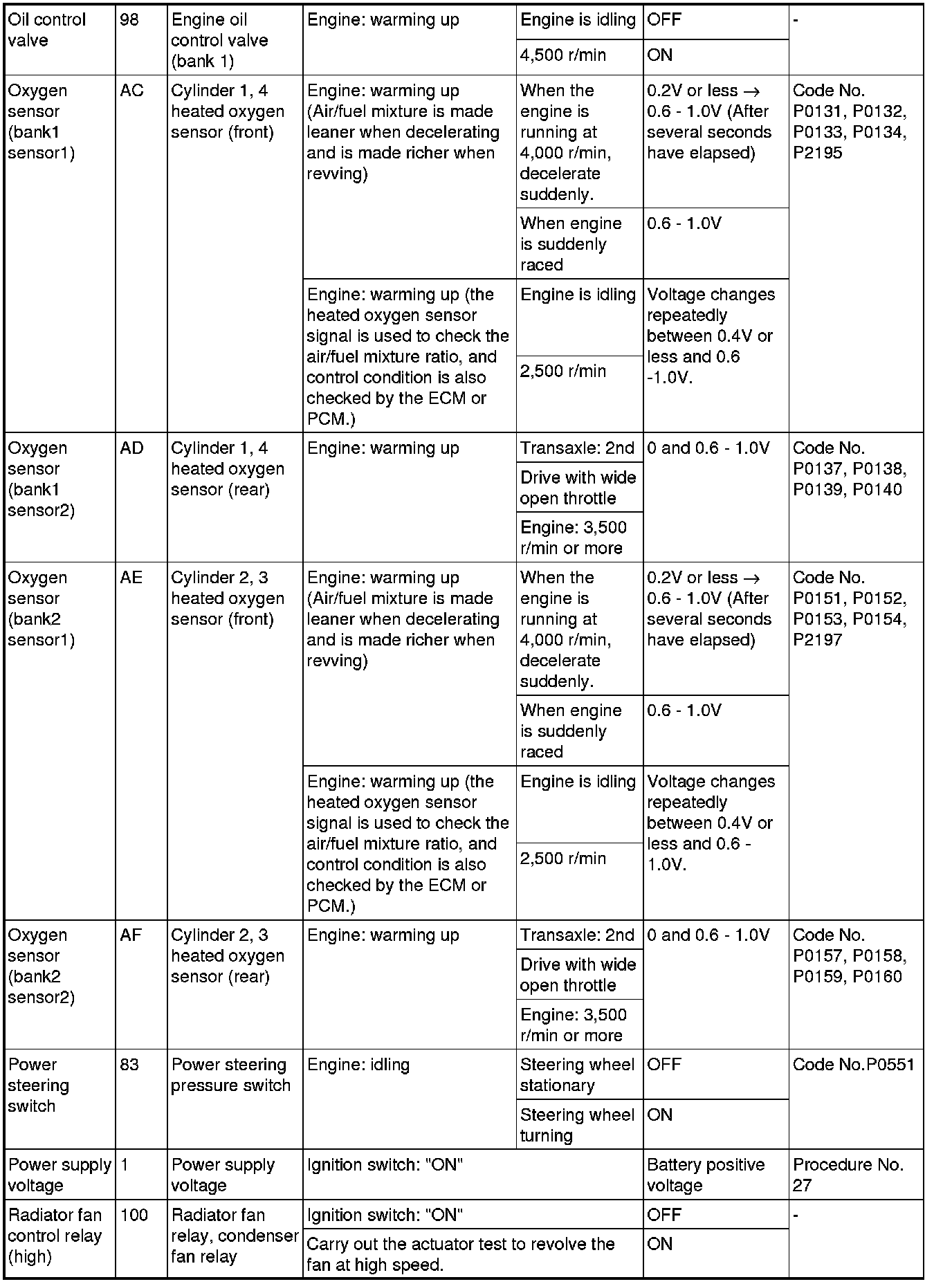

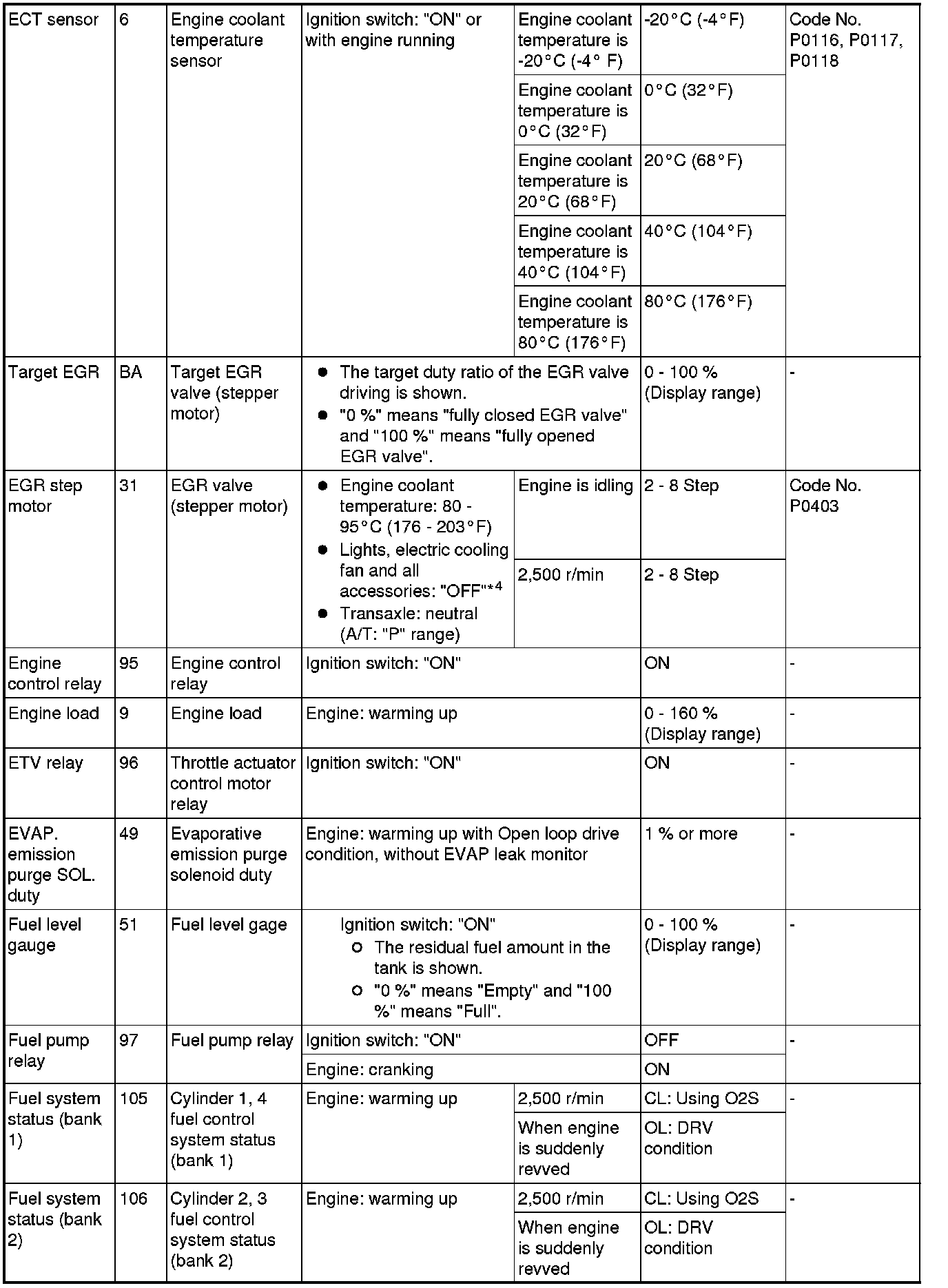

DATA LIST REFERENCE TABLE

CAUTION:

- When shifting the selector lever to D range, the brakes should be applied so that the vehicle does not move forward.
- Driving tests always need two persons: one driver and one observer.

NOTE:

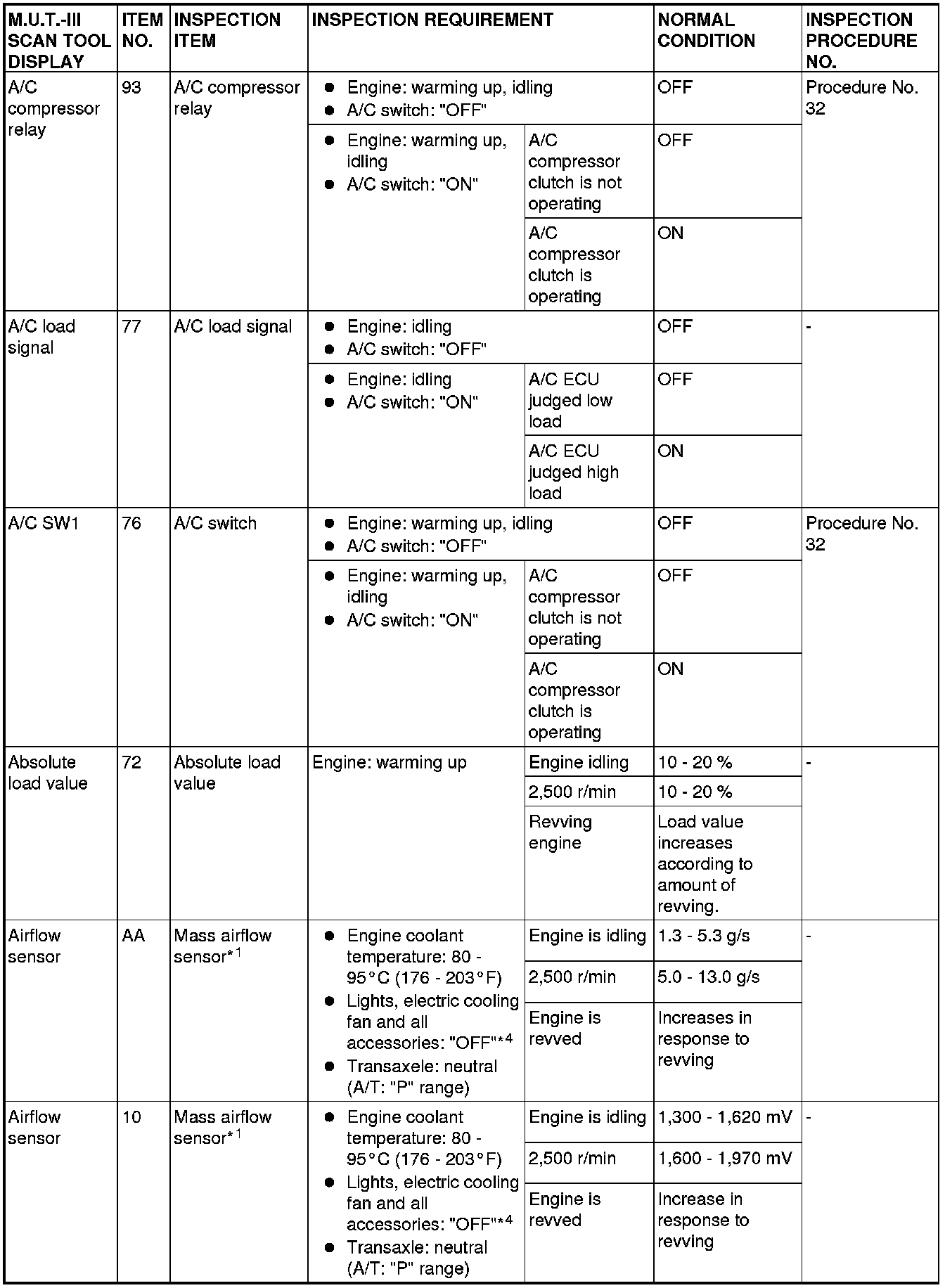

*1: In a new vehicle [driven approximately 500 km (311 mile) or less], the mass airflow sensor output value is sometimes 10 % higher than the standard value.

NOTE:

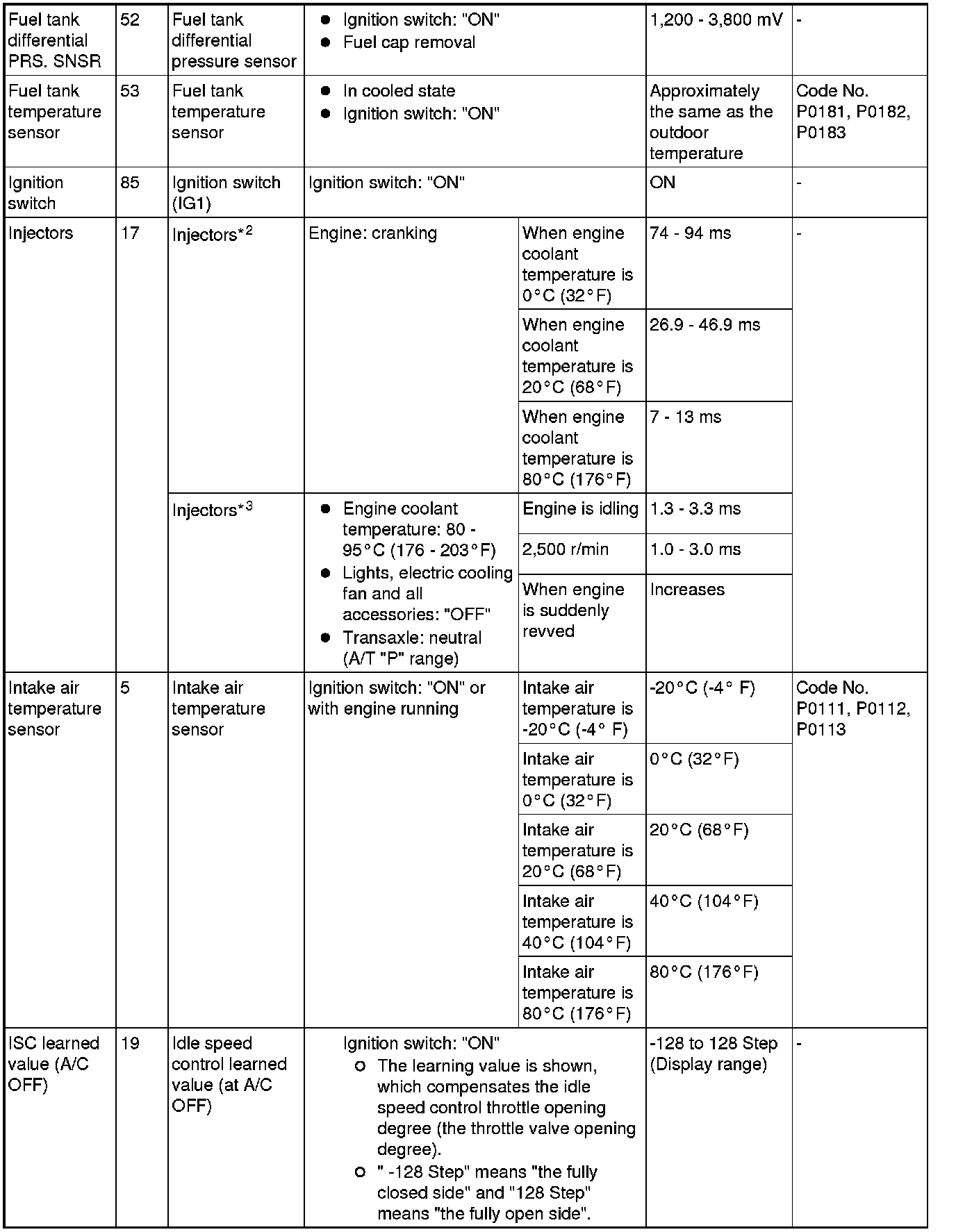

*2: The injector drive time represents the time when the cranking speed is at 250 r/min or below when the power supply voltage is 11 volts.

NOTE:
*3: In a new vehicle [driven approximately 500 km (311 mile) or less], the injector drive time is sometimes 10 % longer than the standard time.

NOTE:
*4: Vehicles for Canada, the headlight, taillight, etc. remain lit even when the lighting switch is in "OFF" position but this is no problem for checks.
