Component Tests and General Diagnostics

MULTIPORT FUEL INJECTION (MFI) RELAY AND THROTTLE ACTUATOR CONTROL MOTOR RELAY CONTINUITY CHECK

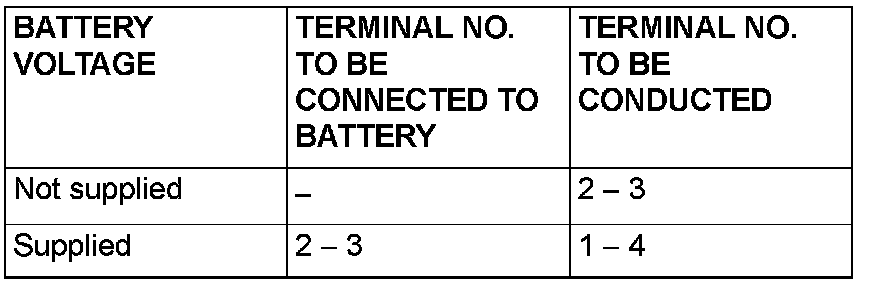

Inspect the MFI relay and throttle actuator control motor relay for continuity in accordance with the chart shown below.
