Diagnostics Item 7

DIAGNOSTIC ITEM 7: Diagnose when the scan tool cannot receive the data sent by A/C-ECU.

CAUTION:
When servicing a CAN bus line, ground yourself by touching a metal object such as an unpainted water pipe. If you fail to do so, a component connected to the CAN bus line may be damaged.


















FUNCTION

The diagnostic result demonstrates that "the scan tool cannot receive the sent data from the A/C-ECU" when the scan tool MB991958 checks the periodically sent data from each ECU and cannot receive the A/C-ECU data only.

TROUBLE JUDGMENT CONDITIONS

Scan tool MB991958 judges the trouble when the periodically sent data from A/C-ECU cannot be received and sent.

TROUBLESHOOTING HINTS

- The wiring harness may be defective [open circuit between A/C-ECU and joint connector (3)]
- The connector may be defective [poor connection of joint connector (3) or A/C-ECU connector]
- Power supply circuit malfunction of the A/C-ECU
- The A/C-ECU may be defective

DIAGNOSIS

Required Special Tools:

- MB991223: Harness Set
- MB992006: Extra fine probe

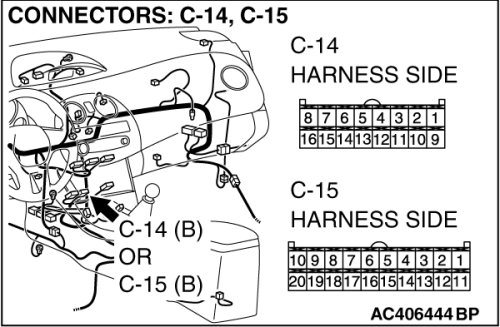

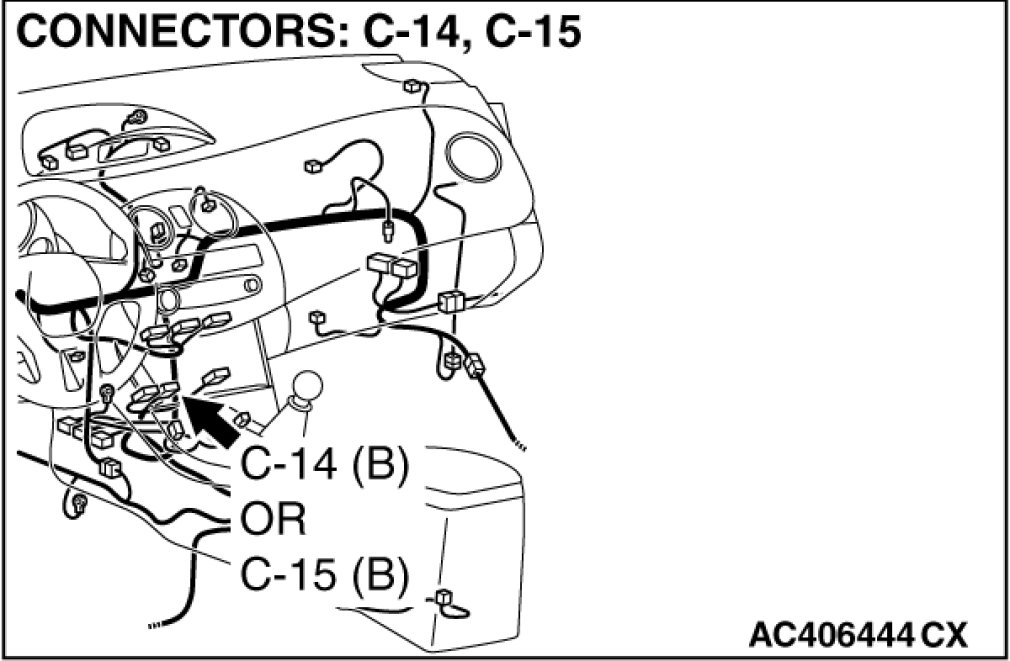

STEP 1. Check joint connector (3) C-03 and A/C-ECU connector C-14 [manual air conditioning system] or C-15 [automatic air conditioning system] for loose, corroded or damaged terminals, or terminals pushed back in the connector.









CAUTION:
The strand end of the twisted wire should be within 10 cm (4.0 inches) from the connector. For details refer to Precautions When CAN Bus Line(s) are Repaired.





Check the joint connector at the wiring harness side for loose, corroded or damaged terminals, or terminals pushed back in the connector, and also check the short pin behind the connector for corrosion, deformation and delamination.

Q. Are joint connector (3) C-03 and A/C-ECU connector C-14[ manual air conditioning system] or C-15[ automatic air conditioning system] in good condition?

YES Go to Step 2.

NO Repair the damaged parts. Replace the joint connector as necessary.

STEP 2. Check the CAN bus lines between joint connector (3) C-03 and the A/C-ECU. Measure the resistance between joint connector (3) C-03 and A/C-ECU connector C-14 [manual air conditioning system] or C-15 [automatic air conditioning system].

CAUTION:

- A digital multimeter should be used. For details refer to Precautions When CAN Bus Line(s) are Repaired .
- The test wiring harness should be used. For details refer to Precautions When CAN Bus Line(s) are Repaired .









(1)Disconnect joint connector (3) C-03 and A/C-ECU connector C-14 [manual air conditioning system] or C-15 [automatic air conditioning system], and measure the resistances at the wiring harness sides of joint connector (3) C-03 and A/C-ECU connector C-14 [manual air conditioning system] or C-15 [automatic air conditioning system].

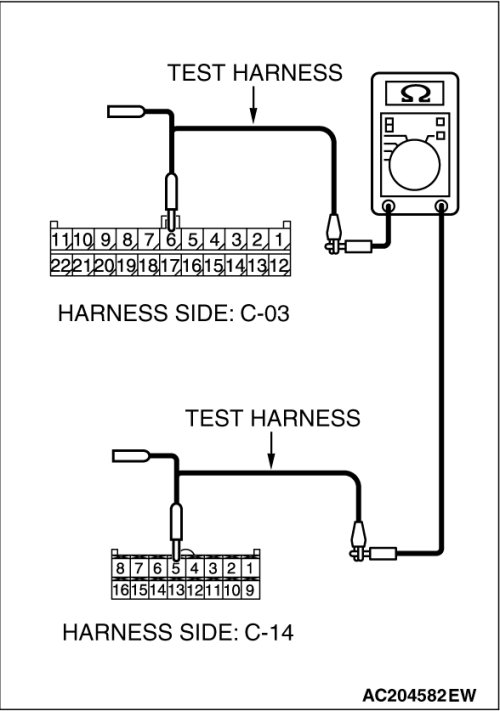

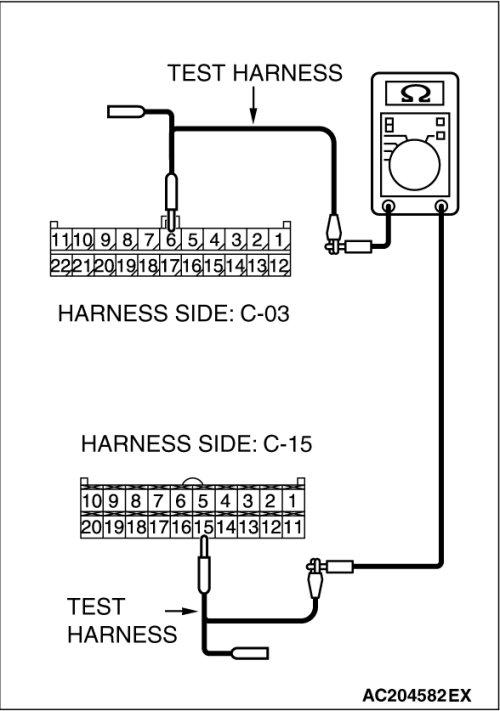

(2)Measure the resistance between joint connector (3) C-03 (terminal 6) and A/C-ECU connector C-14 (terminal 5) [manual air conditioning system] or A/C-ECU connector C-15 (terminal15) [automatic air conditioning system].
OK: 2 ohms or less

CAUTION:
Strictly observe the specified wiring harness repair procedure. For details refer to Precautions on How to Repair the CAN Bus Line(s).

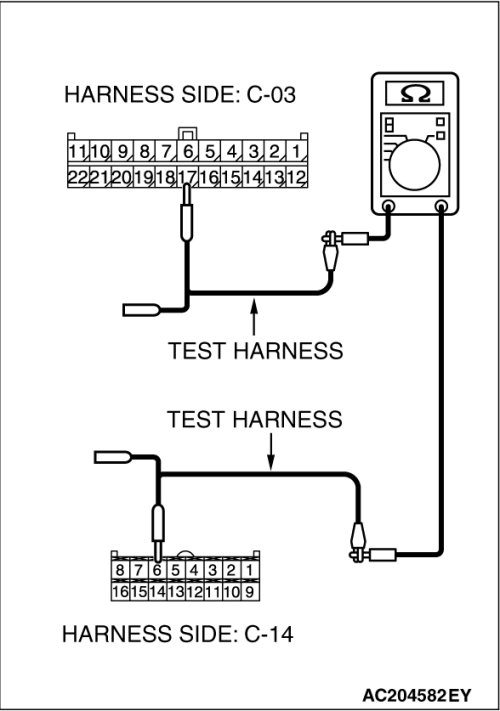

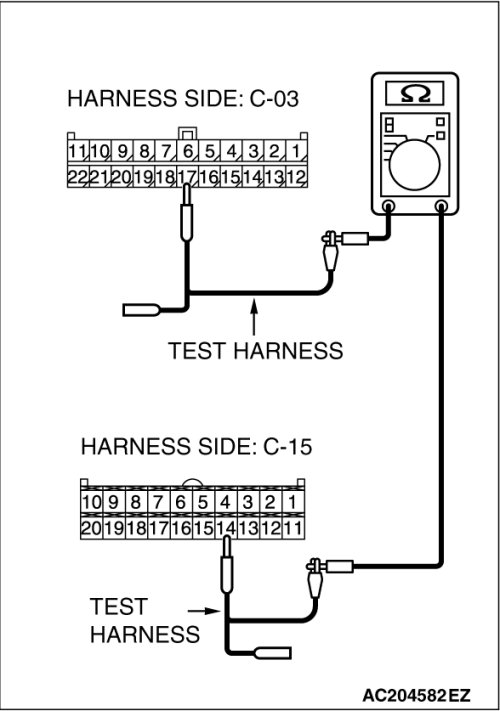

(3)Measure the resistance between joint connector (3) C-03 (terminal 17) and A/C-ECU connector C-14 (terminal 6) [manual air conditioning system] or A/C-ECU connector C-15 (terminal 14) [automatic air conditioning system].
OK: 2 ohms or less

Q. Do all the resistances measure 2 ohms or less?

YES Diagnose the air conditioning system. Inspection Procedure 1 Automatic A/C Diagnosis - Symptom procedures, Malfunction of the A/C-ECU power supply system Inspection Procedure 10.

NO Repair the wiring harness between joint connector (3) C-03 and the A/C-ECU connector C-14 or C-15.
