Marker Lamp Bulb: Service and Repair

FRONT TURN-SIGNAL, PARKING AND SIDE-MARKER LIGHT BULB

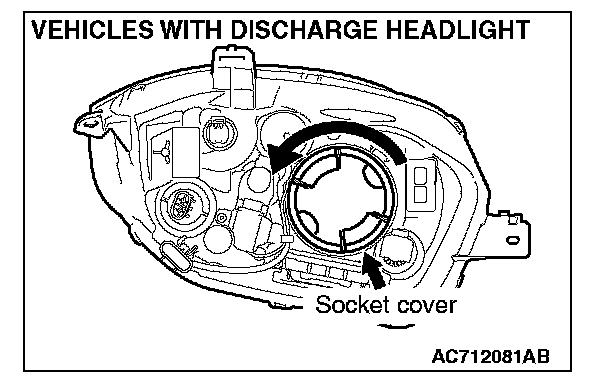

1. Remove the socket cover by turning it to create sufficient clearance for servicing. [Vehicles with discharge headlight]
2. Disconnect the front turn-signal, parking and side-marker light connector.

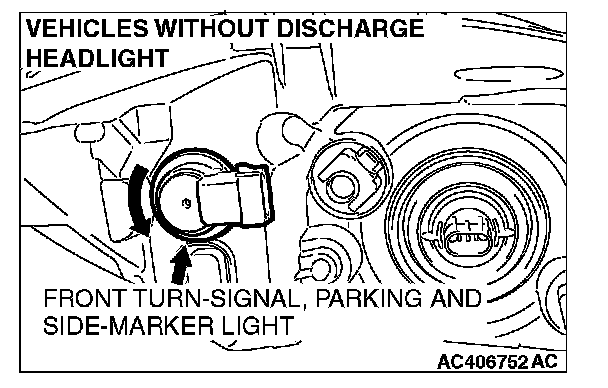

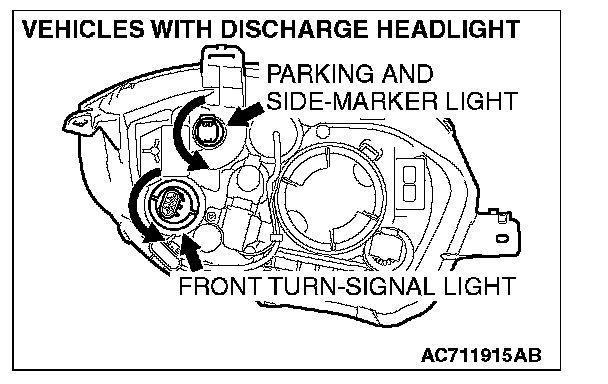

3. Remove the socket with the bulb by turning it counterclockwise as shown.
4. Pull out the bulb from the socket, and then replace the bulb.
5. Install the socket to the headlight by pushing it in and twisting it clockwise.
