Headlamp: Service and Repair

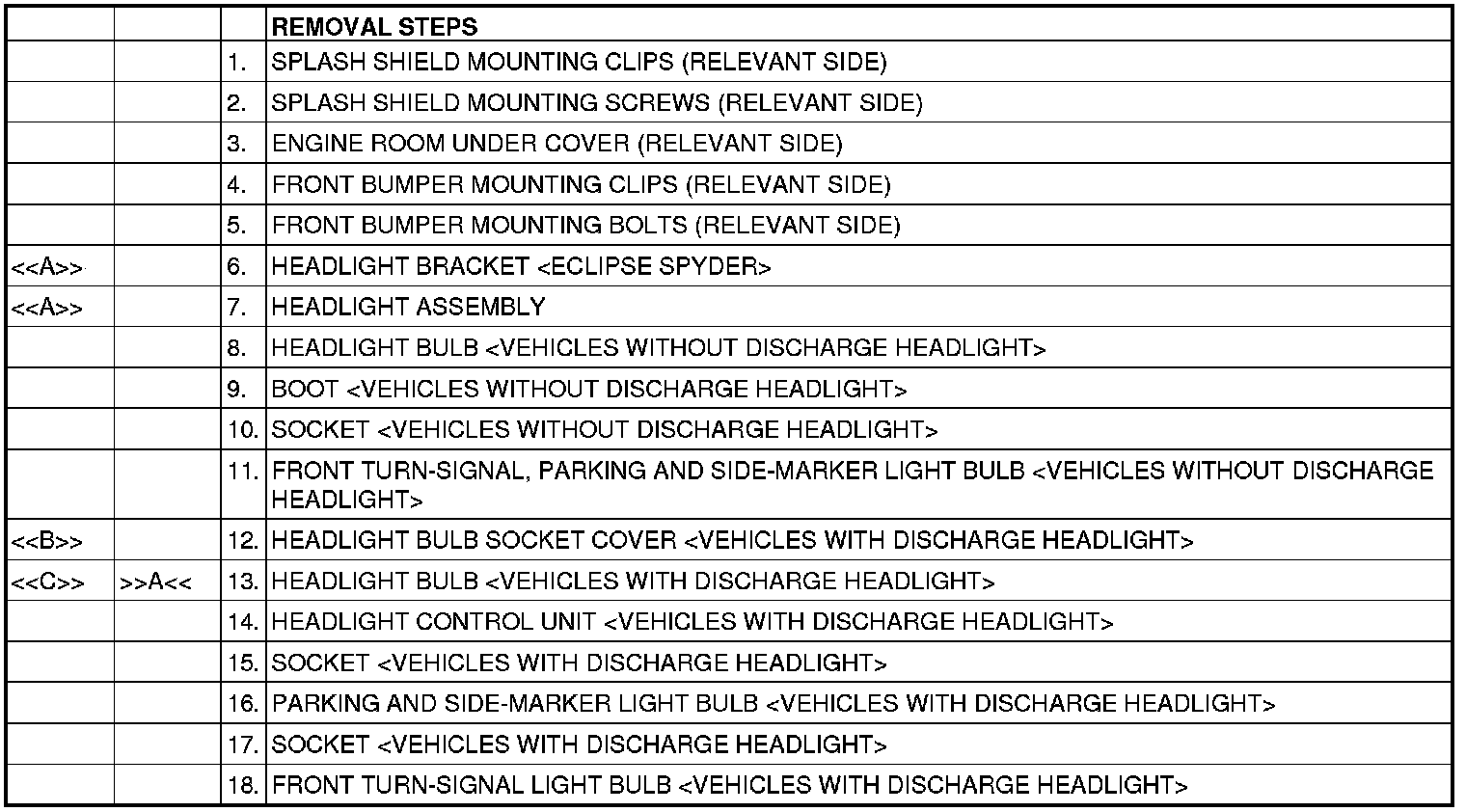

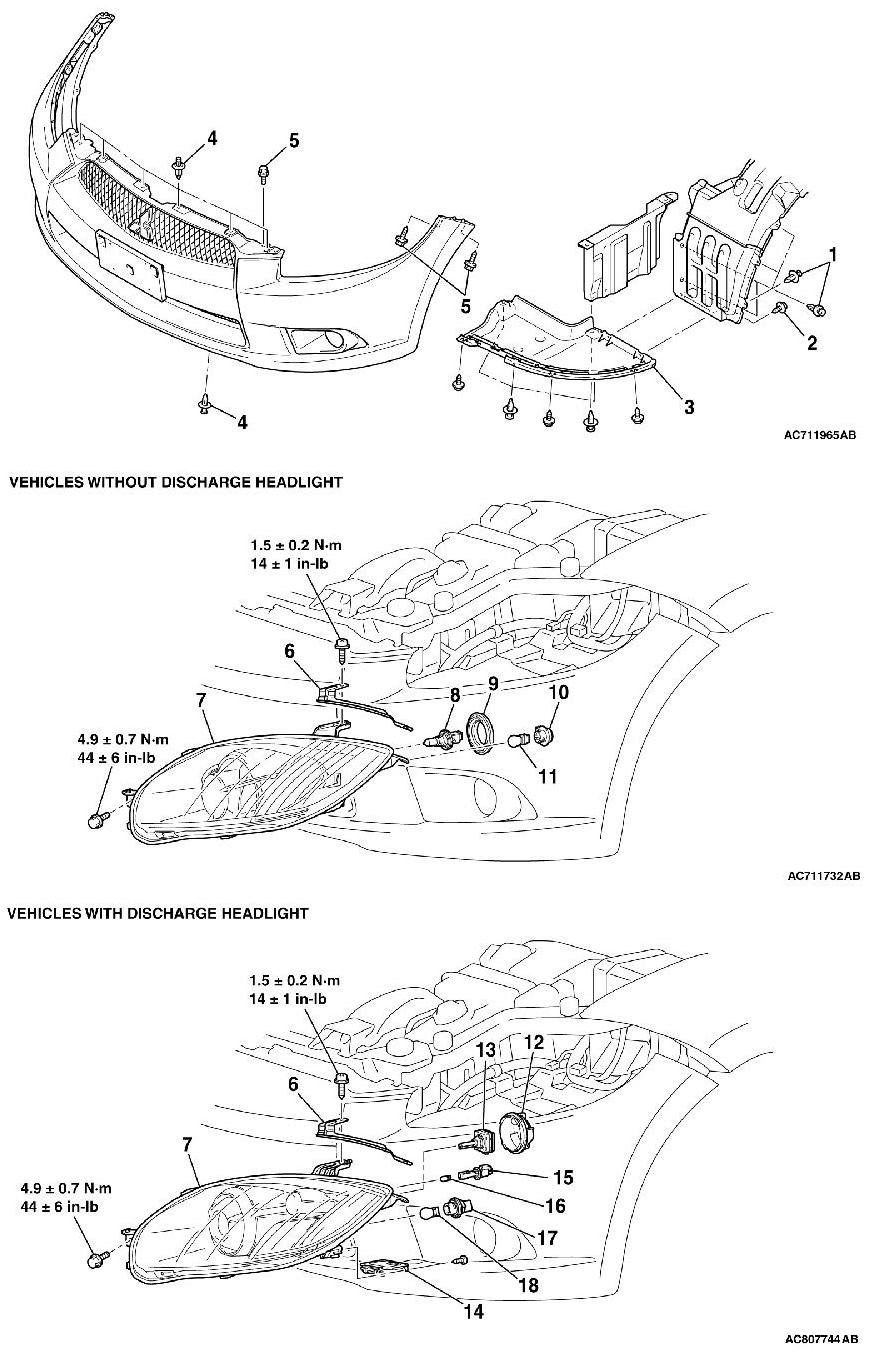

HEADLIGHT REMOVAL AND INSTALLATION













REMOVAL SERVICE POINTS

[[A]] HEADLIGHT ASSEMBLY REMOVAL

Remove the headlight bracket [ECLIPSE SPYDER] and the headlight assembly with the applicable side of the front bumper slid downward slightly.

[[B]] HEADLIGHT BULB SOCKET COVER REMOVAL [VEHICLES WITH DISCHARGE HEADLIGHT]





Twist the headlight bulb socket cover to remove.

[[C]] HEADLIGHT BULB REMOVAL [VEHICLES WITH DISCHARGE HEADLIGHT]

1. Remove the connector connected to the headlight bulb.

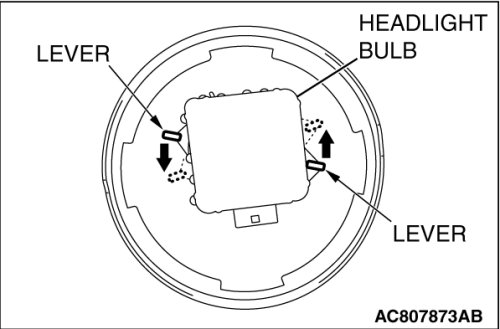

2. Operate the lever toward the direction shown.
3. Remove the headlight bulb.

INSTALLATION SERVICE POINT

]]A[[ HEADLIGHT BULB INSTALLATION [VEHICLES WITH DISCHARGE HEADLIGHT]





1. Install the headlight bulb.

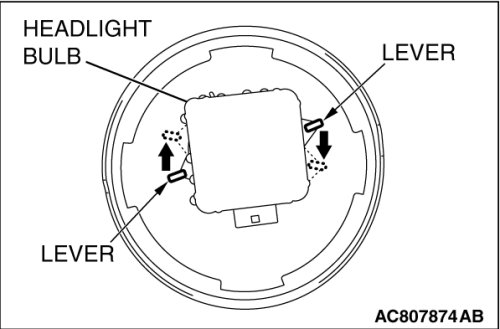

2. Operate the lever toward the direction shown and fix the headlight bulb.
3. Install the connector in the headlight bulb.
