Fog/Driving Lamp Bulb: Service and Repair

BULB REPLACEMENT

CAUTION: Don't touch the bulb surface with bare hands or dirty gloves. If the bulb surface (glass part) gets dirty, clean it with alcohol or thinner immediately and dry well, and then install it.

1. Remove the under cover mounting clips, then remove the engine room under cover.

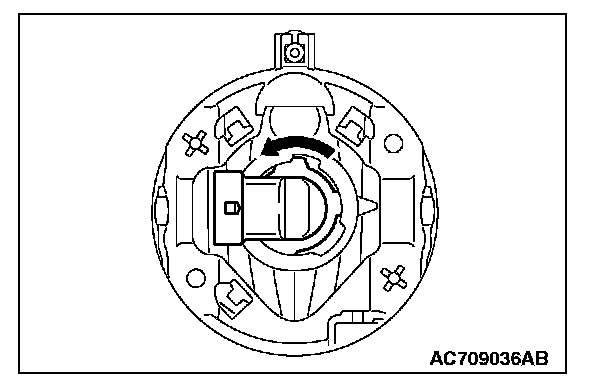

2. Remove the socket and bulb assembly by twisting it counterclockwise.
3. Remove the fog light bulb from the connector.
4. Replace the bulb, and then install the socket and bulb assembly by twisting it clockwise.
