Home >> Mitsubishi >> 2011 >> Eclipse Spyder L4-2.4L (4G69) >> Repair and Diagnosis >> Lighting and Horns >> Dome Lamp >> Service and Repair

Dome Lamp: Service and Repair

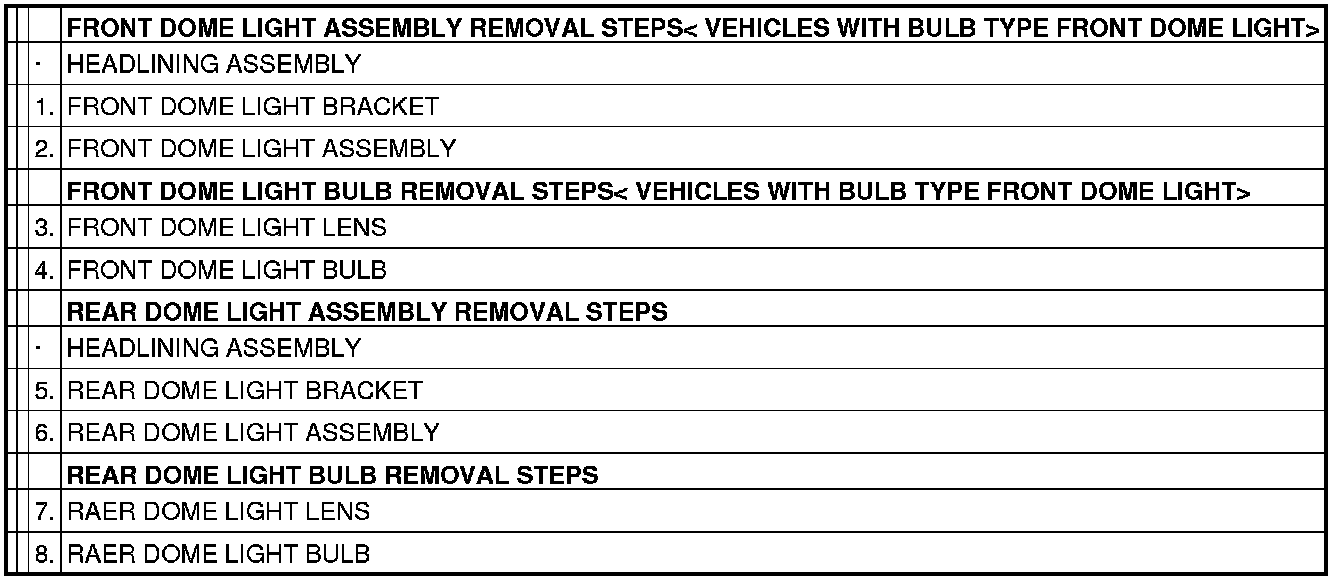

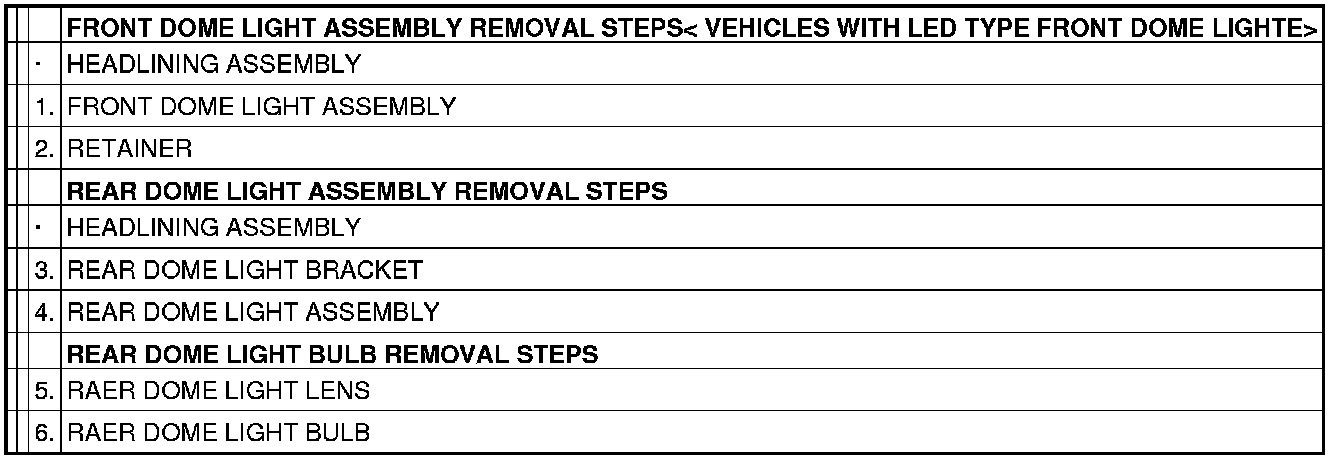

REMOVAL AND INSTALLATION

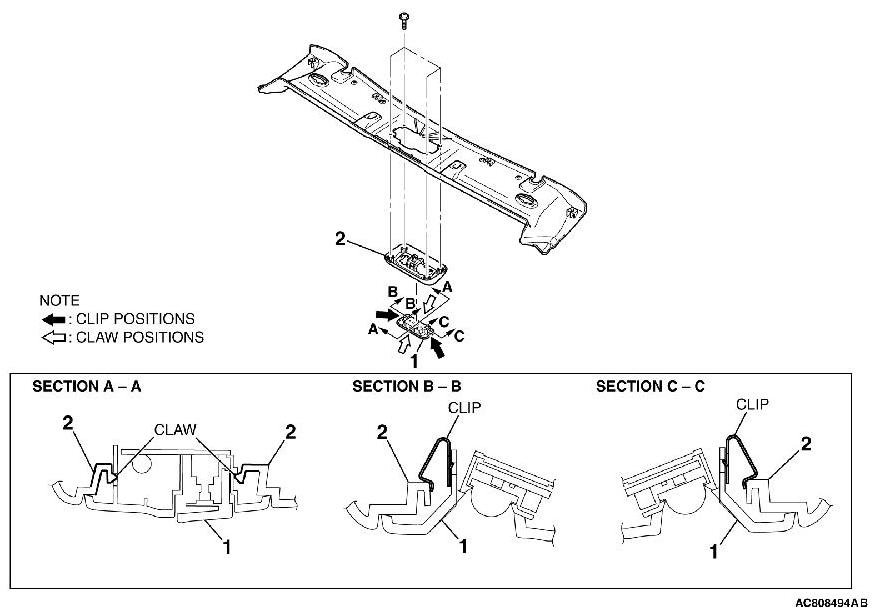

[ECLIPSE (VEHICLES WITHOUT SUNROOF)]

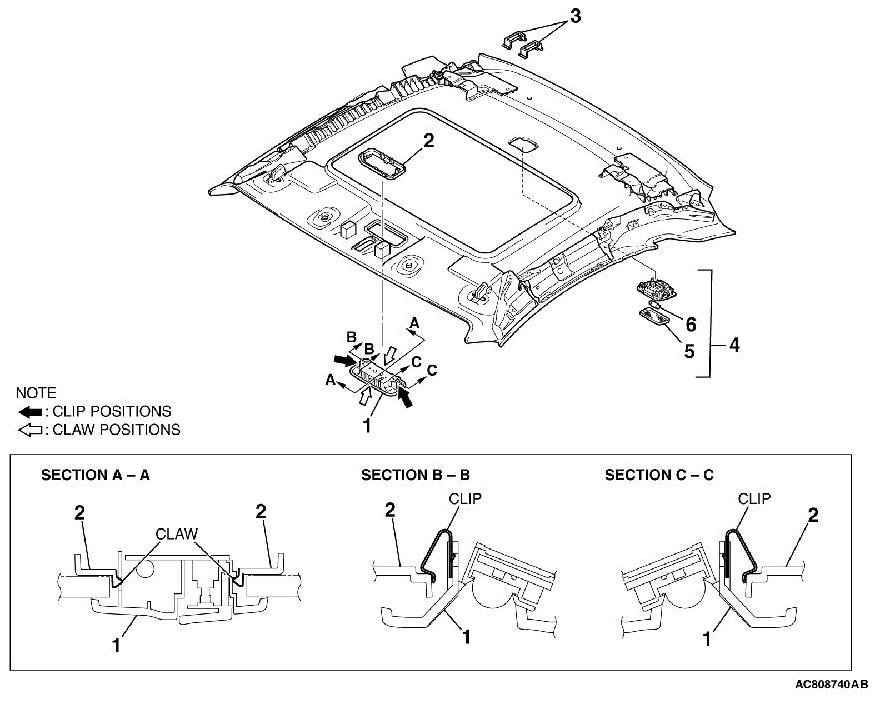

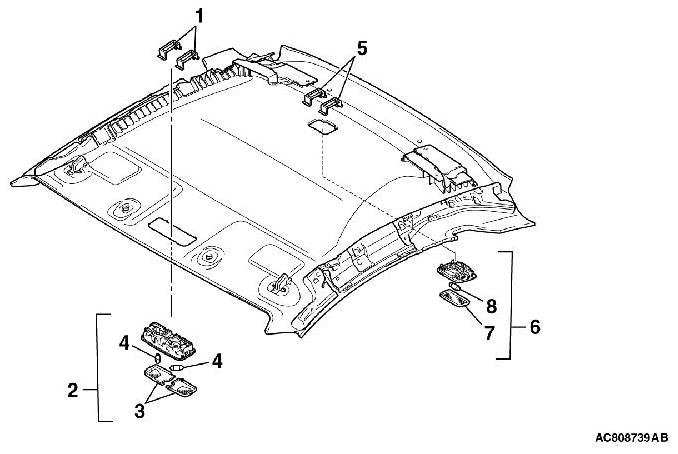

[ECLIPSE (VEHICLES WITH SUNROOF)]









[ECLIPSE SPYDER]
