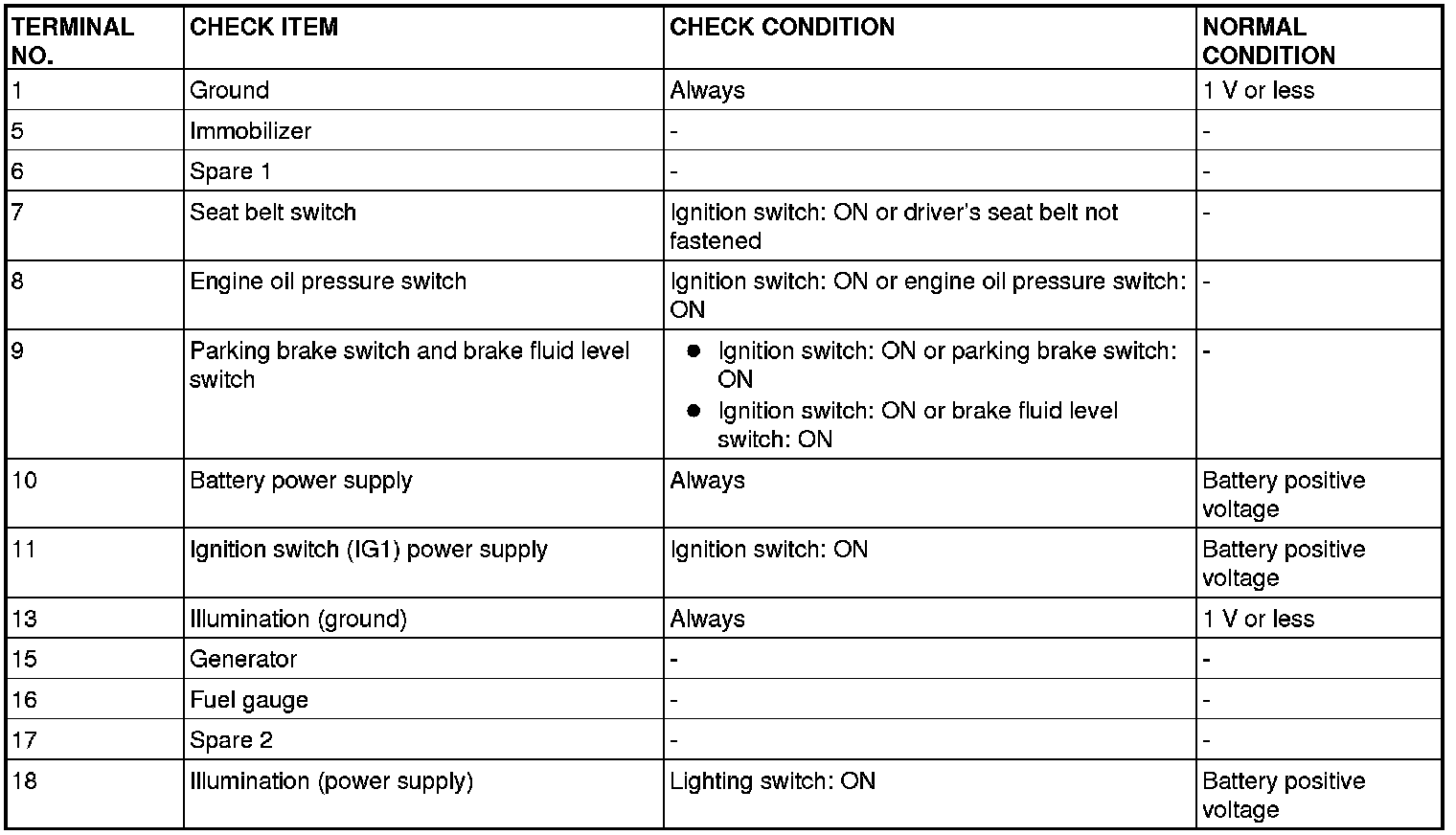

Pinout Values and Diagnostic Parameters

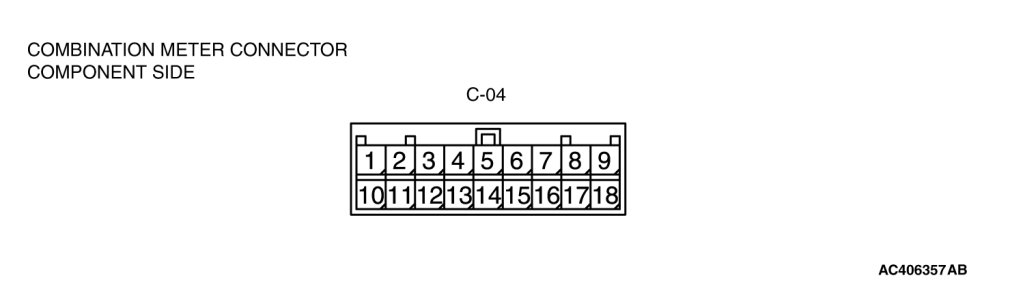

COMBINATION METER TERMINAL CHECK

Measure the voltage between terminals using a voltmeter.






CAUTION:
Never take a measurement at terminals 3 and 4. If you do this, the CAN bus lines will be impaired.

NOTE:
The combination meter connector is fixed on the instrument panel directly, so you cannot take measurement by backprobing.
