Condenser Fan Motor: Service and Repair

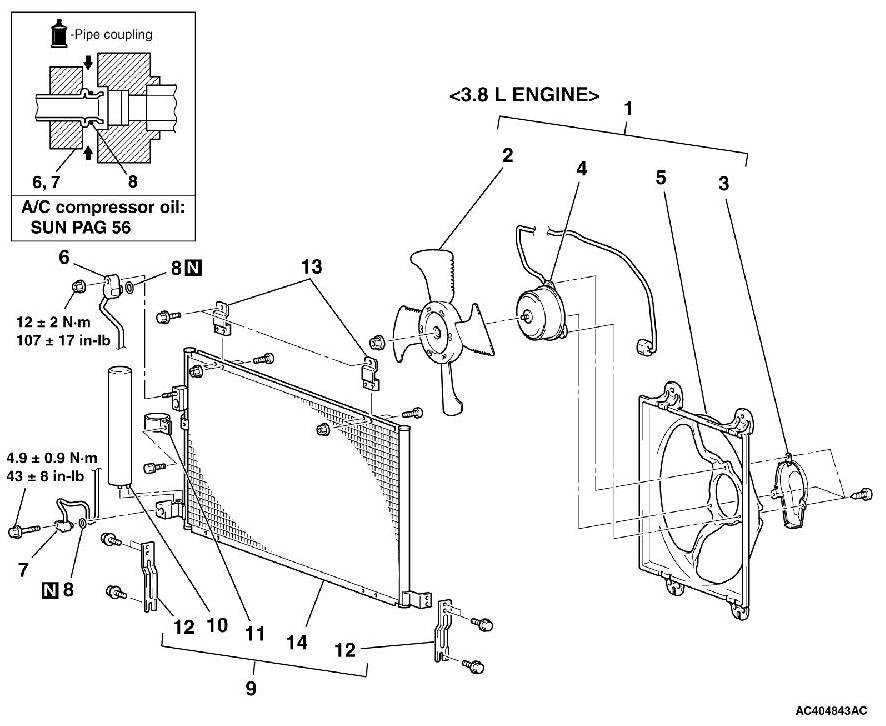

REMOVAL AND INSTALLATION













REMOVAL SERVICE POINT

[[A]] FLEXIBLE DISCHARGE HOSE AND LIQUID PIPE A DISCONNECTION

CAUTION:
As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples.

To prevent the entry of dust or other foreign bodies, plug the dismantled hose and condenser assembly nipples.

INSTALLATION SERVICE POINT

]]A[[ CONDENSER INSTALLATION

When replacing the condenser, refill it with a specified amount of compressor oil and install it to the vehicle.


Compressor oil: SUN PAG 56
Quantity: 15 cm3 (0.5 fl.oz)
