Motor and Transistor

MOTORS AND TRANSISTOR

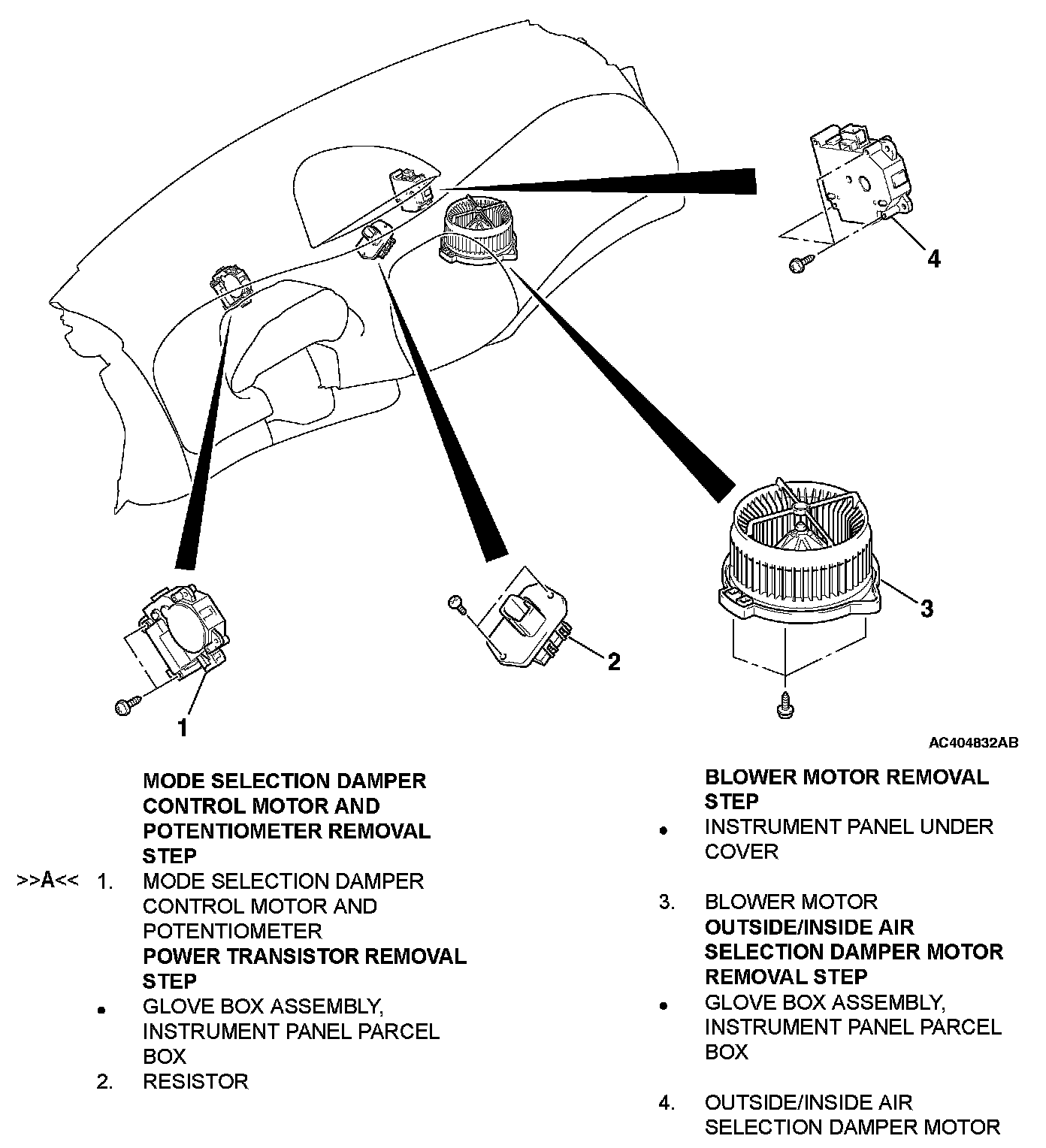

REMOVAL AND INSTALLATION







INSTALLATION SERVICE POINT

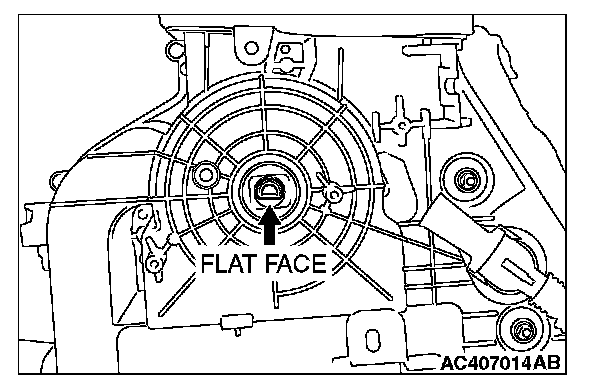

]]A[[ MODE SELECTION DAMPER CONTROL MOTOR AND POTENTIOMETER INSTALLATION







Place the flat face as shown downward and install.
